6. Replace back cover by inserting it in the two gaps its
convexity is facing out.
7. Fill left holes with blanking plugs.
Moving the appliance
If the machine is to be moved to a distant location, replace
the transportation bolts removed before installation to
prevent damage.
1. Remove the blanking plugs.
2. Remove the back cover
3. Insert the plastic spacers and the transportation bolts.
4. Tighten the bolts with a spanner.
5. Replace the back cover.
Adjusting the feet
Adjust all feets to achieve a complete level position.This will
minimize vibrations and thus noise during use. It will also
reduce wear and tear. We recommend to use a spirit level
for adjustment. Floor should be as stable and flat as possi-
ble.
6.
25
Installation

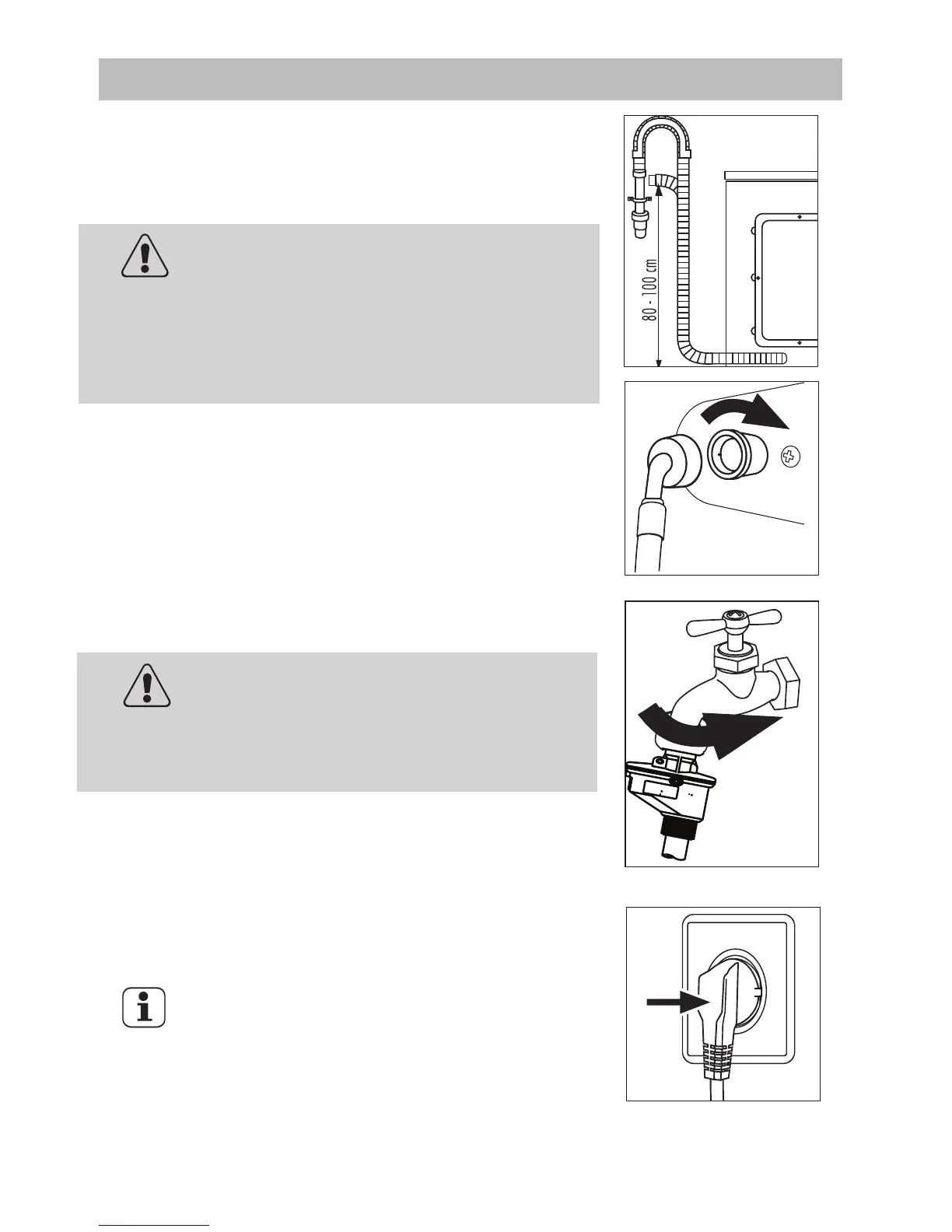

Inlet hose - Aqua control System
The Aqua Stop inlet hose is an important element for
safety and over all control. Its valves are controlling water
supply and will interrupt it if the hose is leaking
1. Connect the nut on the inlet hose to the connector
on the water valve.
2. Apply inlet hose to a water tap.
Do not twist, kink or jam the inlet hose.
Warning!
Appliance is only qualified for cold water supply!
Use the hose-set supplied with the appliance.
Old hose-sets should not be reused.
Do not connect to hot water.
1.
3. Drain hose to waste water connection
Use the drain hose bracket to keep drain hose end
retained.
Fix the bracket sufficiently to avoid dropping down due
to operational movements.
Warning!
The drain hose should not be submerged in water and should be
securely fixed and leak-free. If the drain hose is placed on the
ground or if the pipe is at a height of less than 80cm, the washing
machine will continuously drain while being filled (self-siphoning).
Drain hose is not to be extended. If necessary contact after sales
service.
Power supply connection
Before each connection check if:
▶ the power supply, the socket and fusing is
appropriate to the rating plate.
▶ the power socket is earthed and no multi-plug or
extension.is used.
▶ Only U
K: The UK plug meets BS1363A standard
General information and tips:
After each installation or longer down time run at first
programme “Self Clean“ with no load and added deter-
gent in washing agent compartment (2) to remove
possibly corruptive residues.
2.
24
Installation
Drain hose
Drainage could be installed in different ways. Nevertheless,
level of drain hose has to reach at one point 80-100 cm.
Do not twist, kink or jam the drain hose. If possible keep
always drain hose fixed to the clip at the appliance back.
1. Drain hose to sink
Use the drain hose bracket to keep drain hose end
retained and out of any water level.
Fix the bracket sufficiently to avoid dropping down
due to operational movements.
2. Drain hose to sink connection
The connection to the spigot of the water trap assebly
below the sink must be secure. Ensure a proper
height above ground to avoid drainage problems or
self-syphoning.
80 - 100 cm
