Control panel
1 Detergent / Softener drawer
2 Display
3 Programme selector
4 “Start/Pause“ button
5 “On/Off“ button
6 Function button (a-c)
a Function
b Selection
c Delay
1-Detergent drawer
Open the drawer, three compartments can be seen:
Compartment 1: Water inlet only, no detergent
Compartment 2: Detergent for program
Compartment 3: Softener, Conditioning agent etc.
The recommendation on the type of detergents is suitable
for the various washing temperatures, please refer to the
manual of detergent.
2- Display
If the appliance is on display will light up the actual status on different sections (see
next page).The information include washing time, spin, speed, temperature, etc will
appear.
3-Programme selector
By turning the knob one of 16 programmes can be selected, related LED will light up
its default settings will be displayed.
4-“Start/Pause“ button
Press this button gently to start or interrupt the currently displayed programme. Du-
ring operation its symbol is shining, or if interrupted blinking.
5-“On/Off” button
Touch this button gently to switch on, the display is shining.Touch it again for about
2 seconds to switch off. If no panel element or programme is activated after a while
machine will shut down automatically.
6

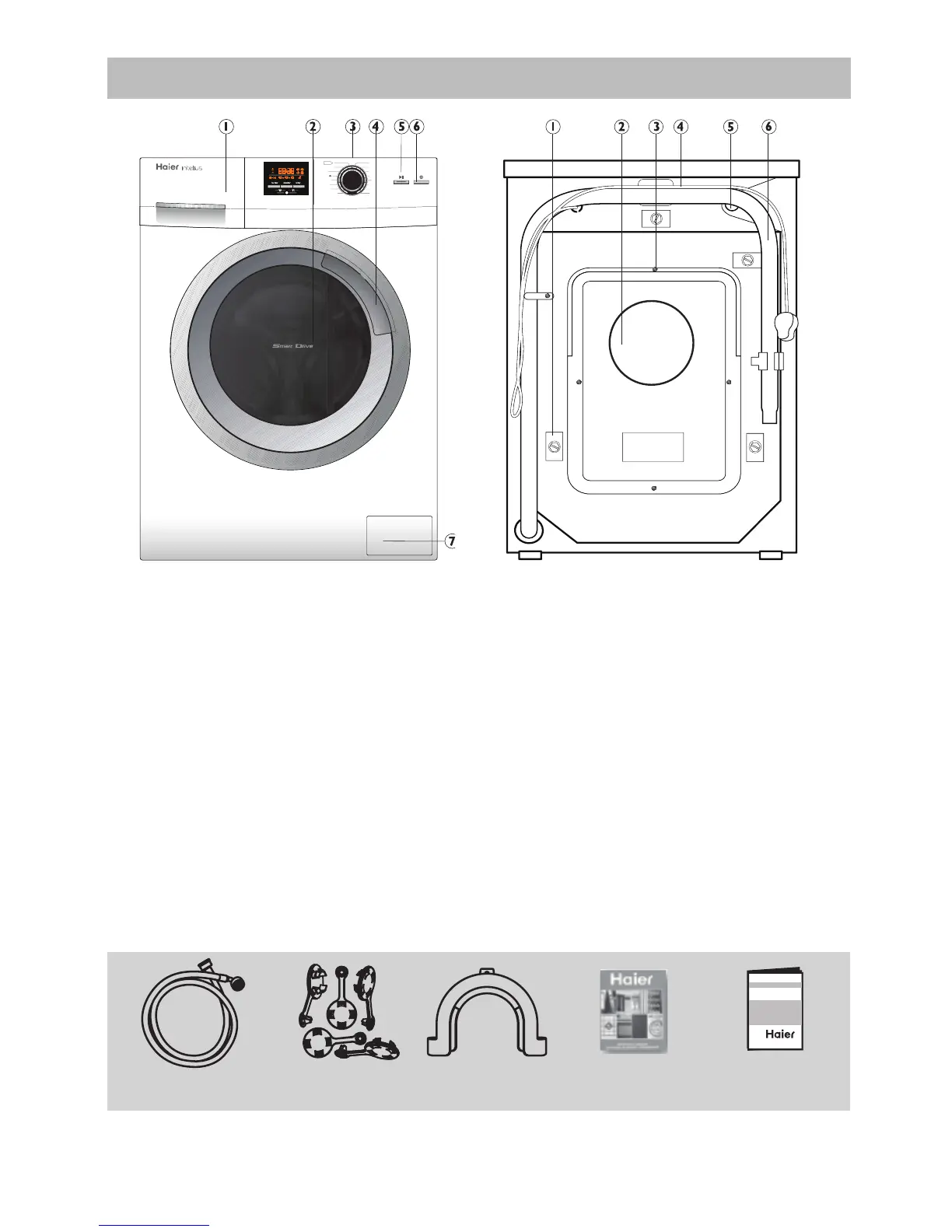

Product description
1 Detergent / Softener drawer
2 Door
3Worktop
4 Door handle
5 Control panel
6 On/Off
7 Service flap
1Transportation bolts (T1-T4)
2 Back cover
3 Back cover screws (S1-S4)
4Power cord
5Water inlet valve
6 Drain hose
Accessories
1x Inlet hose
assembly
5x Blanking
plugs
1x Drain hose
bracket
1x User manual
This drawing may be slightly different from the layout of the washing machine you have
just purchased.
Check the accessories and literature in accordance with this list.
1x Warranty-
Card
To Next Page
