Haier LE40K5000TF - Power Board

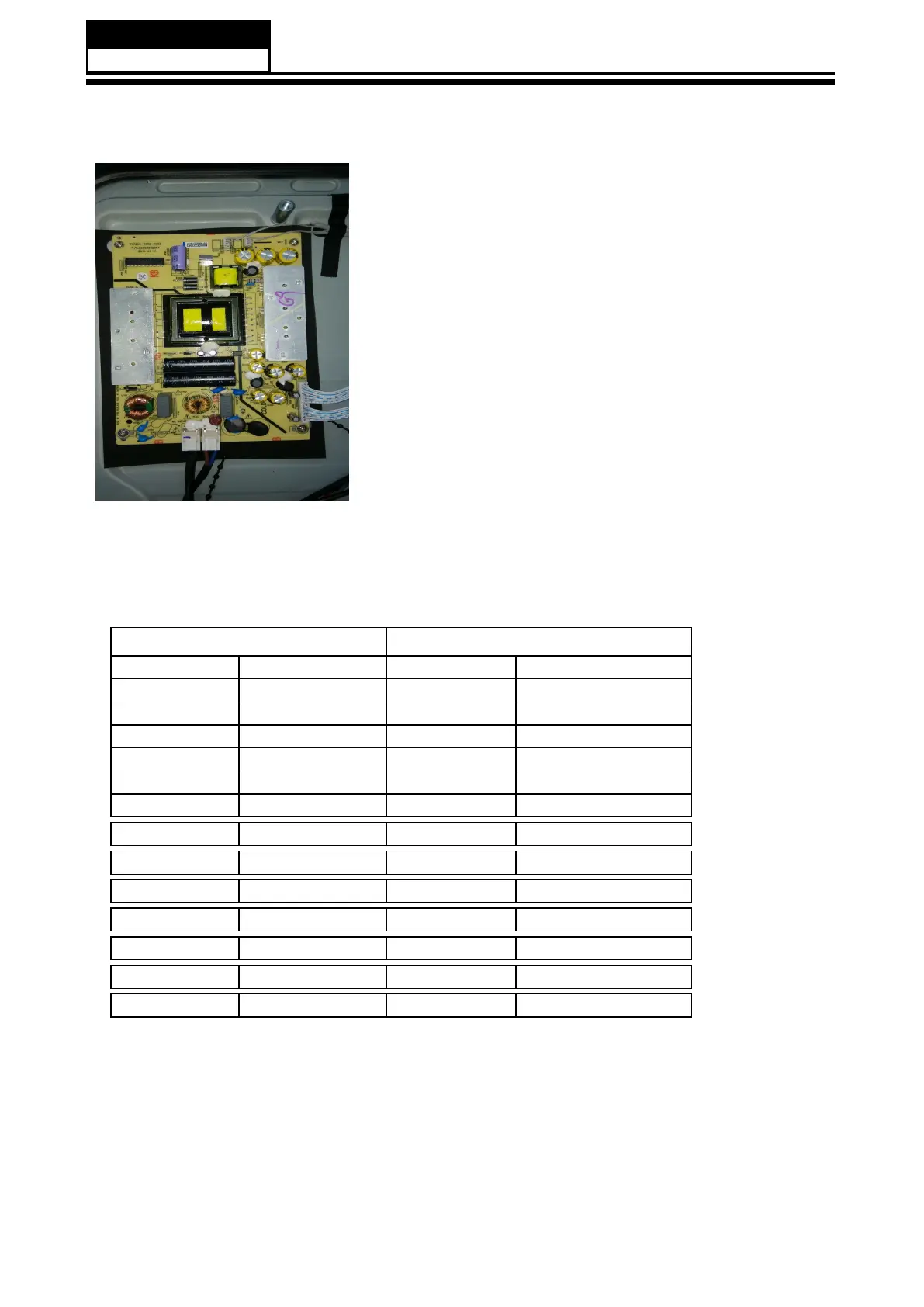

3-3. Power Board
3-3-1 Function Description:
Supply power for Main board, Panel.
3-3-2Connectordefinition
Service Manual
Model No.:
- 11 -
CON201
Pin number Signal name
1
GND
2
GND
3
4
+5V
5
POWER ON/OFF
6
+5VSTB
7 +5V
8
+5V
9
10
SGND
11
GND
12
+12V
13
+12V
ON/BK
ADJ
