6. Operation Instructions
Basal information

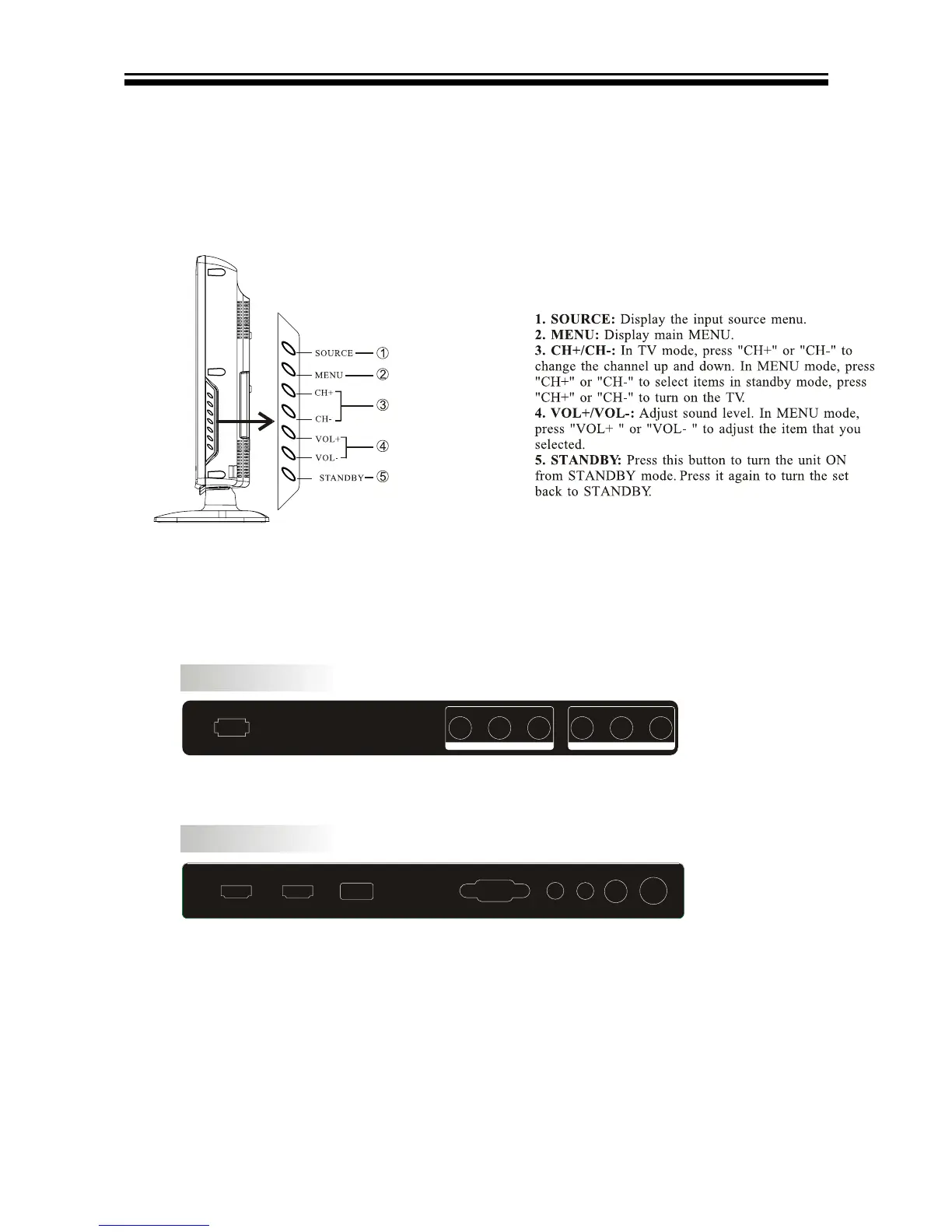

6-1 Front panel controls
6.2 Back panel controls
- 23 -
REAR Connections
All the terminals are (from left to right):
POWER SOCKET, VIDEO, AUDIO INPUT, YPbPr INPUT
Note: AV and YPbPr share one audio channel.
SIDE Connections
All the terminals are (from left to right):
HDMI1, HDMI2, USB, VGA, HEADPHONE, PC AUDIO, COAXIAL, RF.
Note: 1. When HDMI1 port get DVI signal, the audio signal receives from the PC Audio channel.
2. When HDMI2 port get DVI signal, the audio signal receives from the YPbPr/AV Audio channel.
HDMI1 HDMI2
USB
VGA
HEADPHONE
RF
PC AUDIO COAXIAL
YPbPr
VIDEO
AC-INPUT
100-240V~50/60Hz
LR
COMPOSITE
COMPONENT
