Haier MSD318 - Wiring Connection Diagram

- 35 -

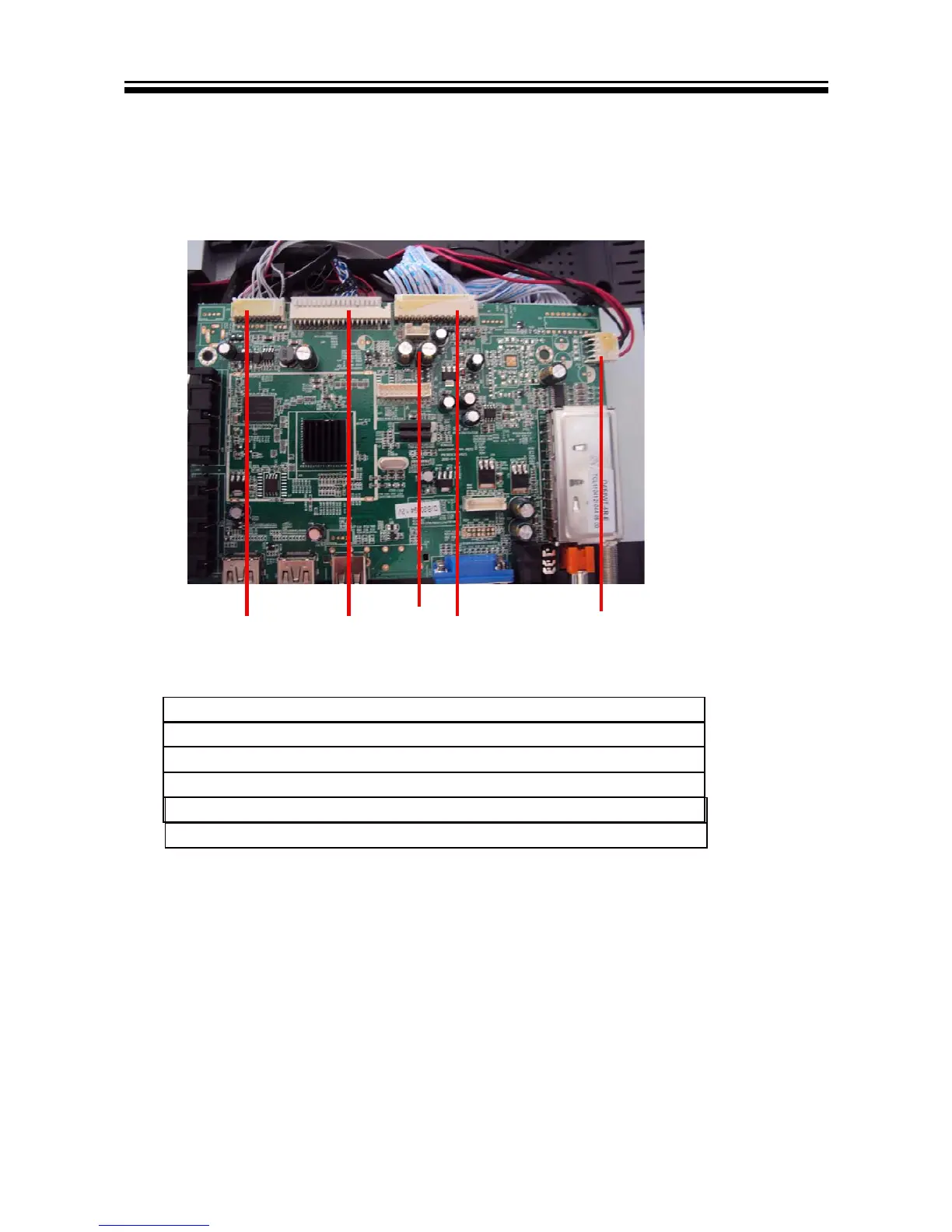

7-3 .Wiring Connection Diagram
1
2
4
5
3
NO.N ame
1
2
3
4
5
Connection Wire(For Speaker)
Connection Wire(Control for Backlight on/off)
LVDS Wire
Connection Wire(Power For Mainboard)
Connection Wire(For Keyboard and Remote)
