12 49-5000467 Rev. 0
ENGLISH

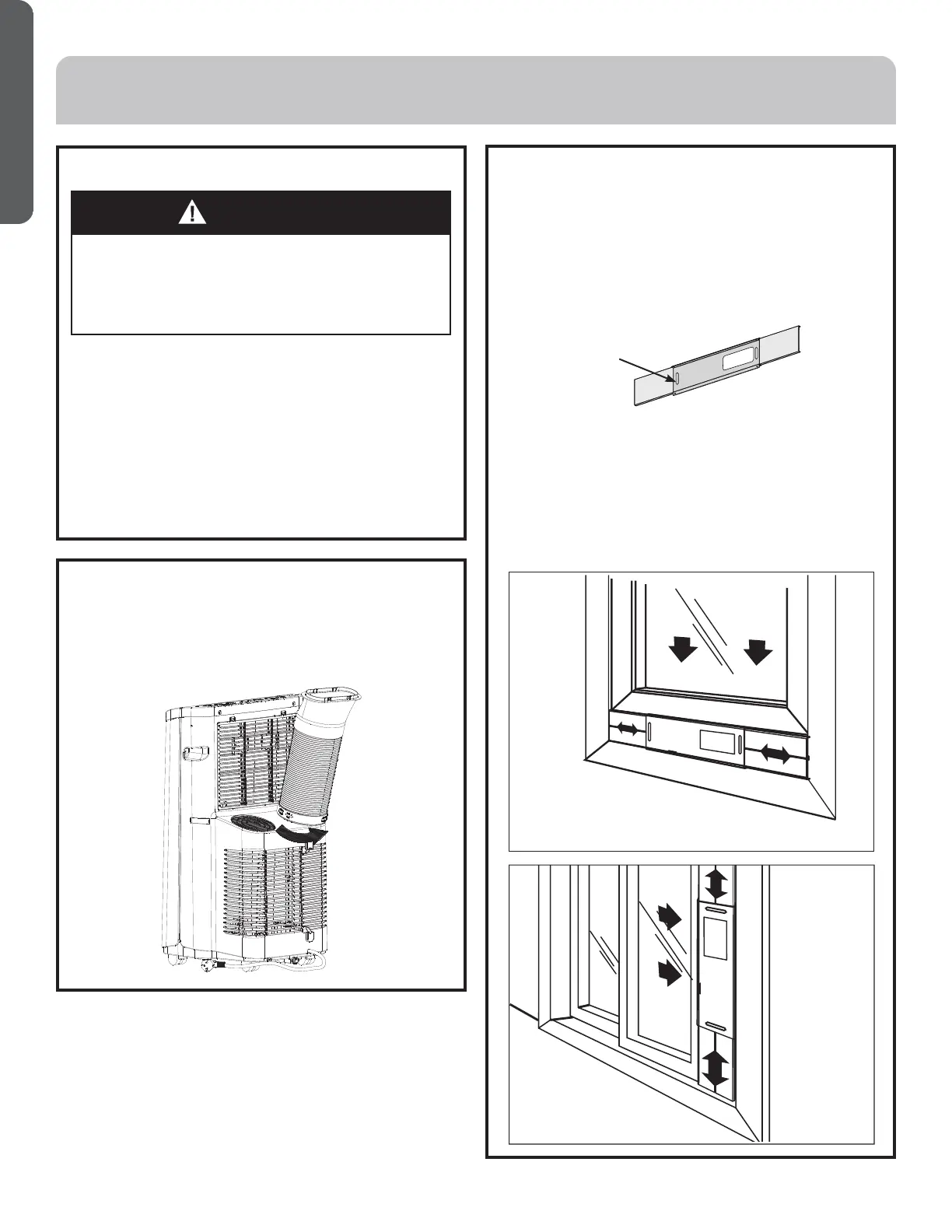

2. INSTALL EXHAUST HOSE
ASSEMBLY TO BACK OF UNIT
Install the exhaust hose assembly by twisting the round
adapter counterclockwise into the exhaust port on the
back of the Air Conditioner.
1. UNPACK AIR CONDITIONER
• Remove packaging materials. Save the carton and
the foam packaging for storing the air conditioner
when not in use.
NOTE: There are NO packing materials inside the air
conditioner to remove—Do Not open the cabinet.
• Properly dispose of/recycle all packing material.
• Handle the air conditioner gently.
• Keep the air conditioner upright and level. Do not
set the air conditioner on its side, front, back or
upside down.
WARNING
Excessive Weight Hazard
Use two or more people to move and install air
conditioner.
Failure to do so can result in back or other injury.
3. INSTALL WINDOW PANELS
A. Measure the window opening. For a 20”
opening, use just the middle panel of the
Window Kit with the opening for the Exhaust
Hose Adapter. For openings from 20” to 33”,
insert one side panel to the middle panel, for
openings from 33” to 46”, insert both side
panels.
B. Place the Window Kit into the window opening
(the Cam Locks should be towards you) and
slide the side panels (if being used) outward to
fill the opening. Lock the panels in place with
the Cam Locks. Apply the foam seals to the
top, bottom and ends to provide the best seal.
Slide the window shut against the Window Kit.
Indoor
Indoor
Cam lock
INSTALLATION INSTRUCTIONS
