Overview I-8
Inspection of welding strength
The mounting portions for engine, chassis, and
seat belt are significant safety portions in terms
of the welding strength. Insert a chisel between
the plates in spacing of 4 or 5 welding points and
in spacing of 10 common welding points to
inspect the welding strength.

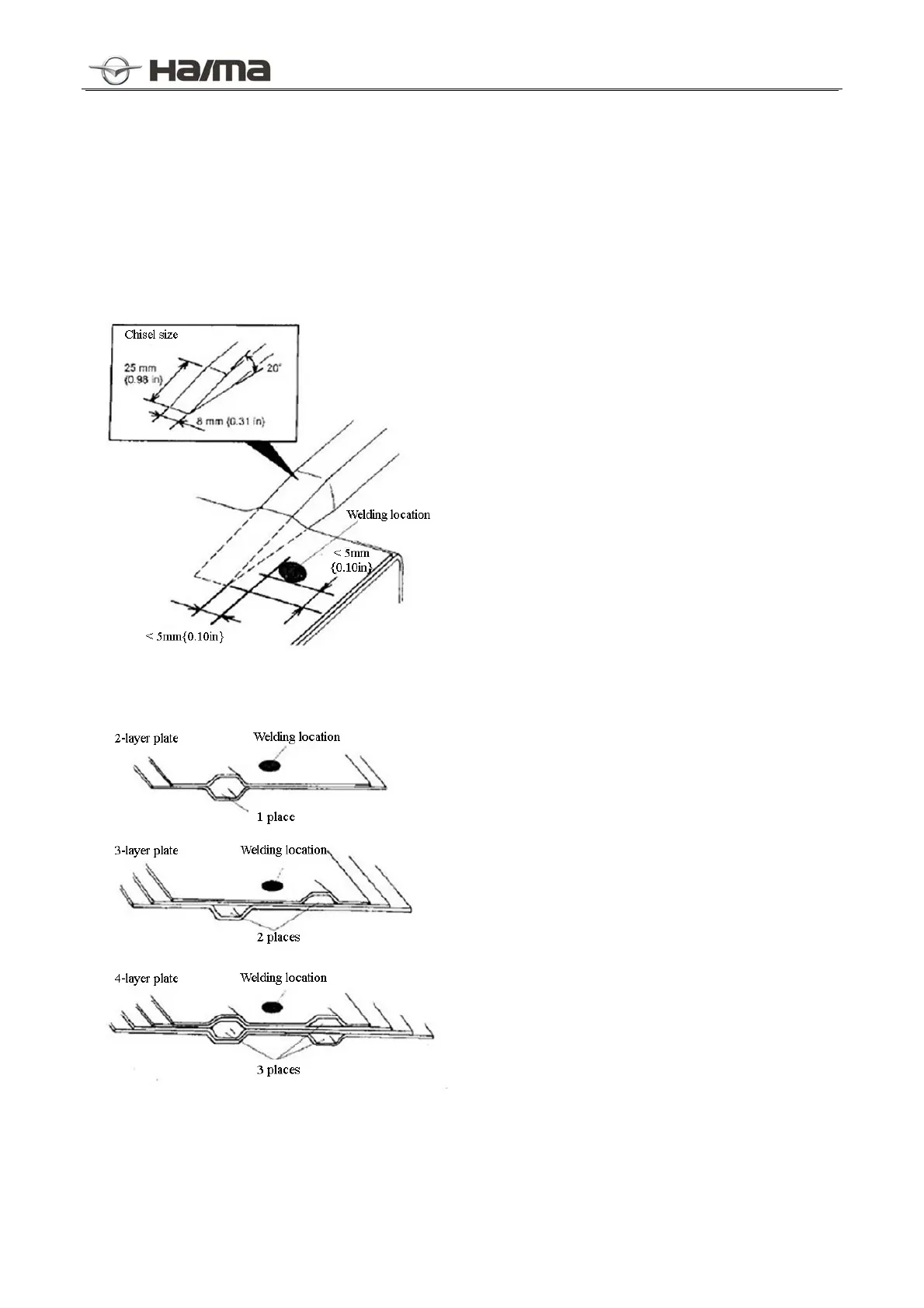

As shown in the figure below, insert a chisel
between the plates as per the quantity of plates.
Insert a chisel between plates to check the
separation of plates, in order to determine the
welding strength. If the plates are separated,
weld once again near the previous welding
position.
Correct the shape of the checked portion.
