Replacement of Plates
IV-23

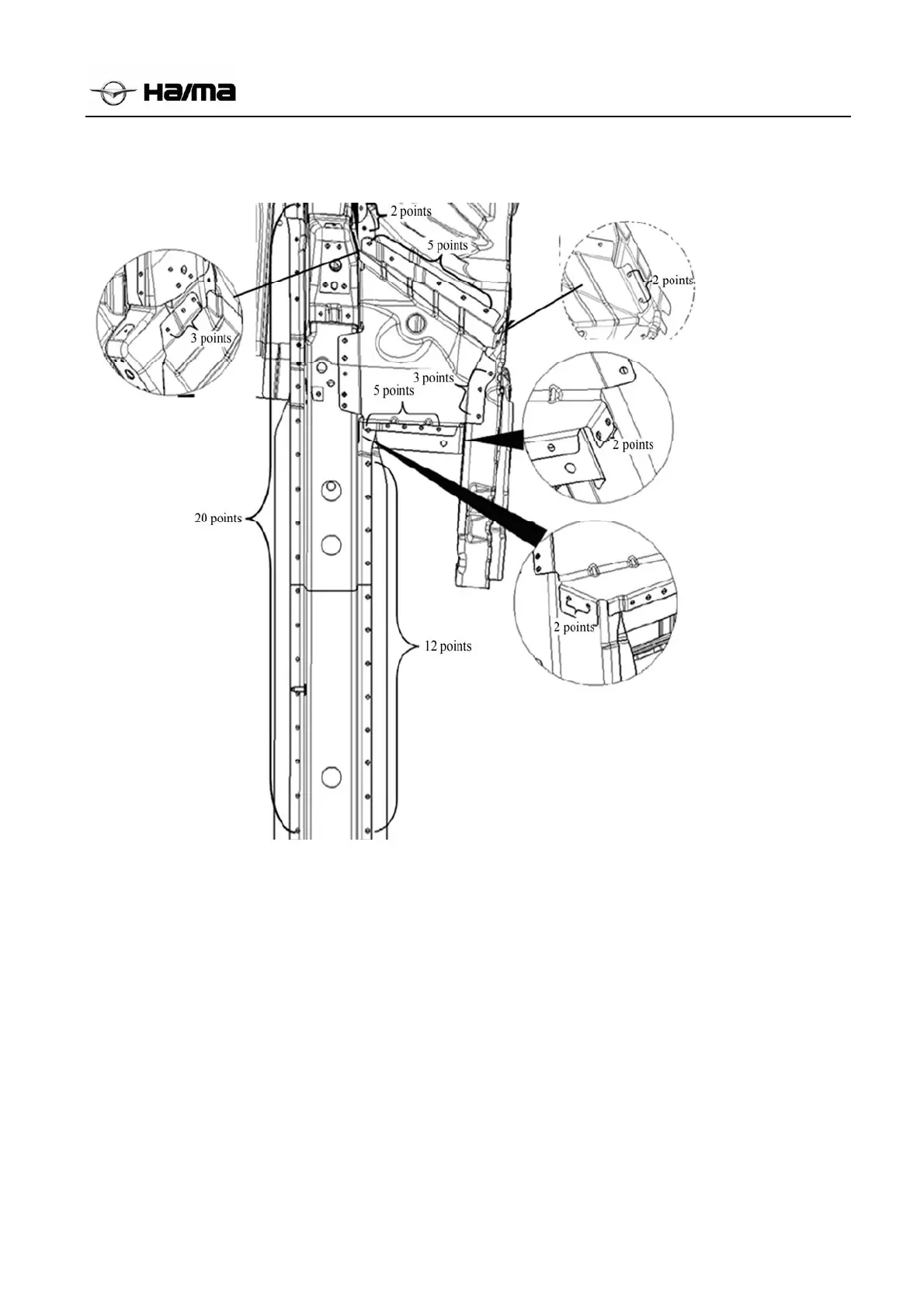

Rear Extension Beam Assembly of Front Longitudinal Beam
Removal
• Because the car body is bilaterally symmetric, only right view of the car body is provided here.
