Replacement of Plates
IV-11

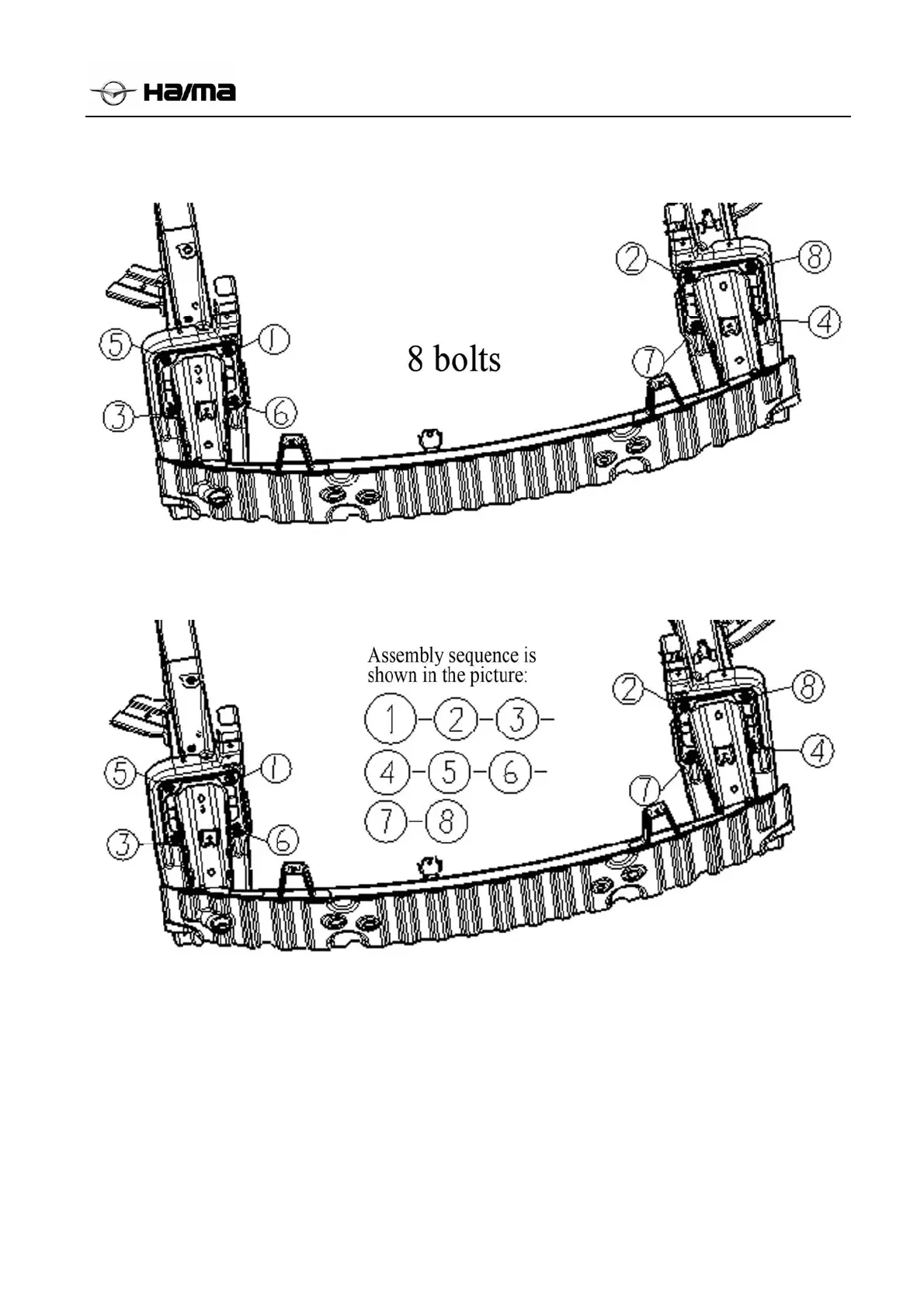

Front Anti-collision Beam Assembly
Removal
Installation
• Install as per the assembly sequence shown in the picture.
