Replacement of Plates

IV-33

Lower Part of Side Panel

Removal

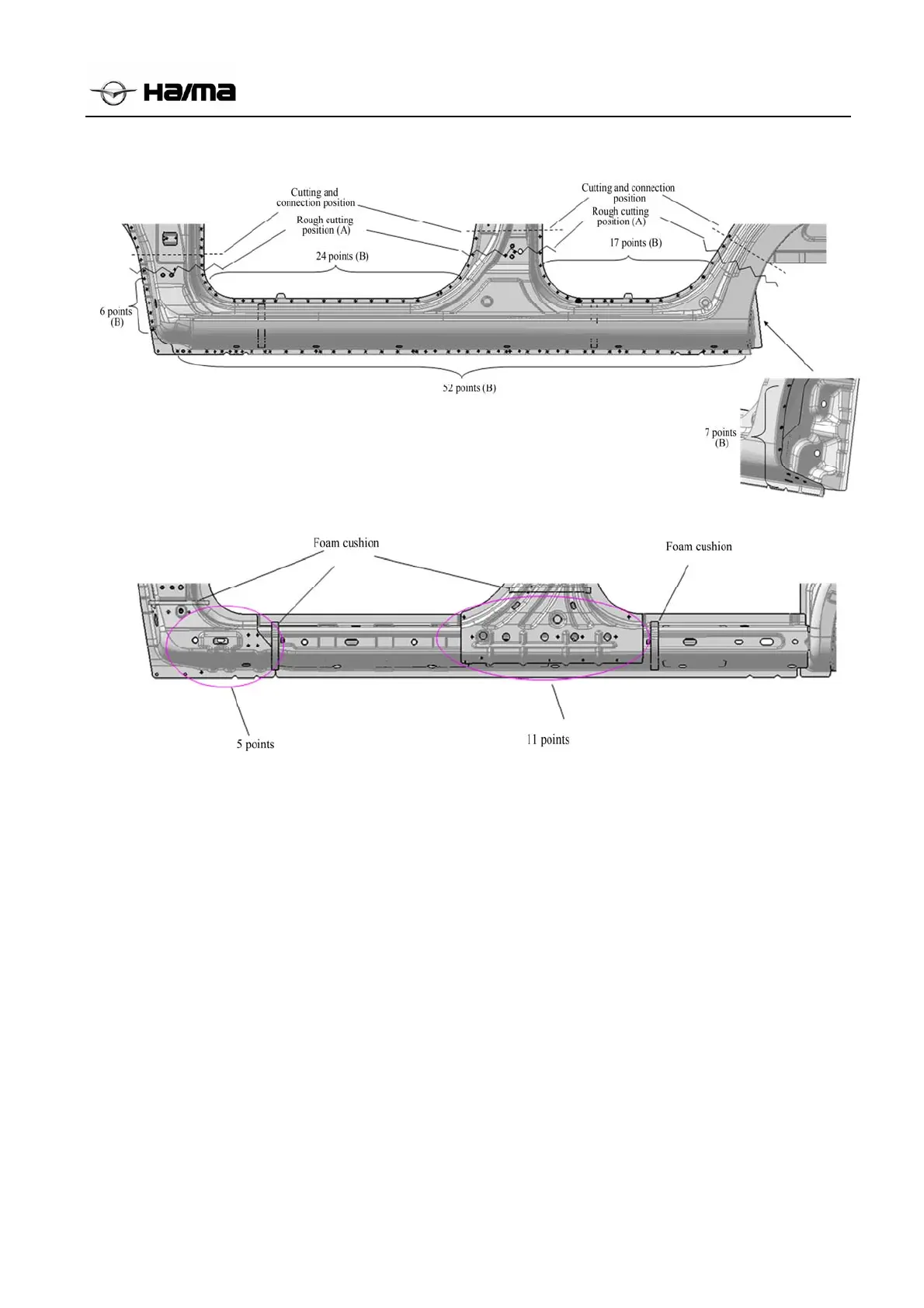

• Conduct rough cutting on area marked with (A) and drilling on area marked with (B), and then remove the lower

part of outer plate;

• The quantity of spot welding point (B) varies along the cutting and joining position;

• Remove the lower edge beam reinforce with segmental cutting after drilling holes on area marked with (C).
