HAIMA M3 Series - Lower Part of Side Panel - Installation

Replacement of Plates
IV-34

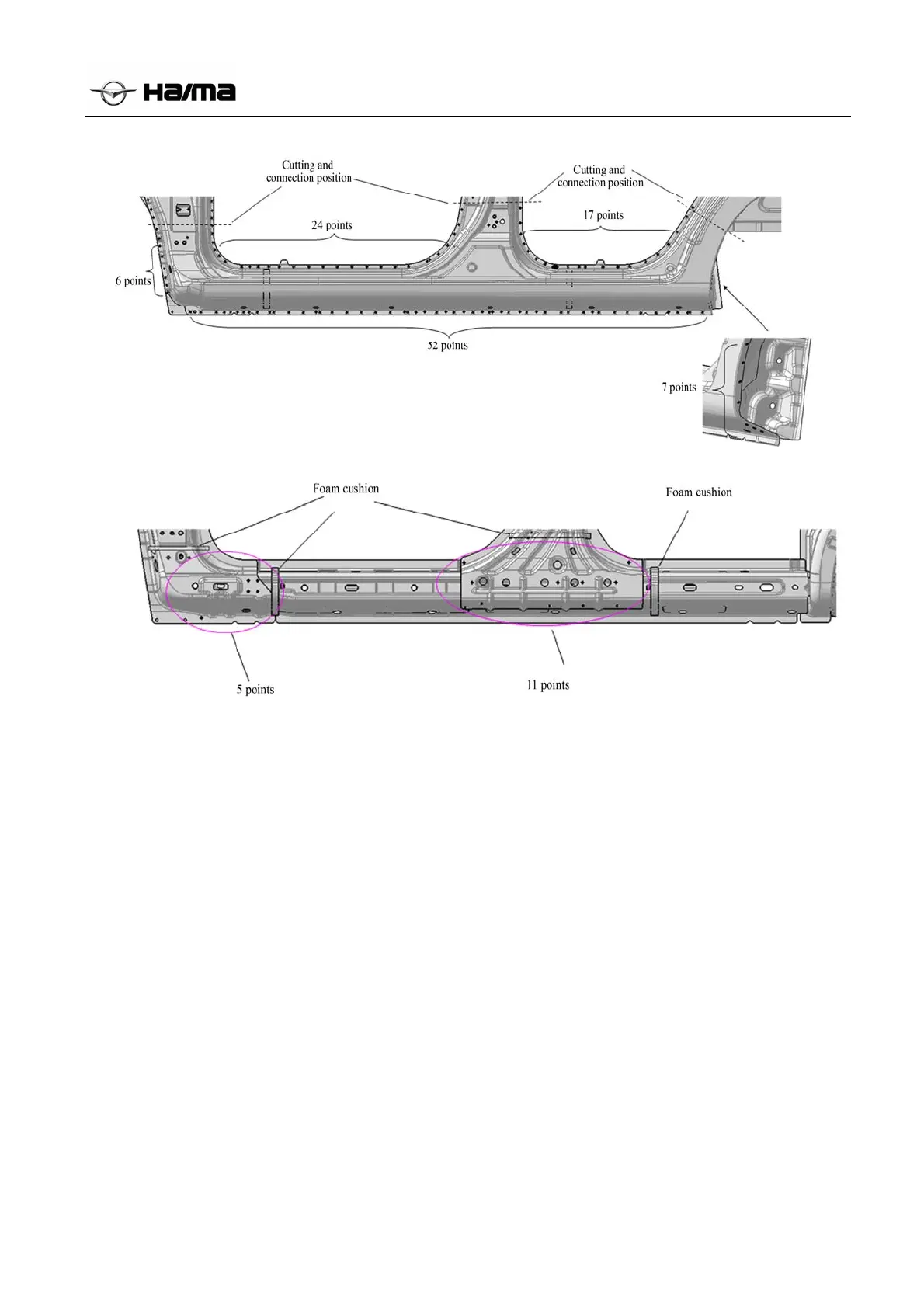

Installation
• Trail assemble the new component and measure each component while installing the new component to ensure
dimensional consistency;
• After trail assembly of the new component, ensure matching situation of relevant parts;
• Install the inner plate first, and then the outer plate.
