Replacement of Plates

IV-35

Interior of C Pillar

Removal (bilaterally symmetric, only left view provided)

• Remove the outer plate before removing the inner plate; refer to the chapter of C pillar outer plate maintenance

for details in removal and installation of outer plate;

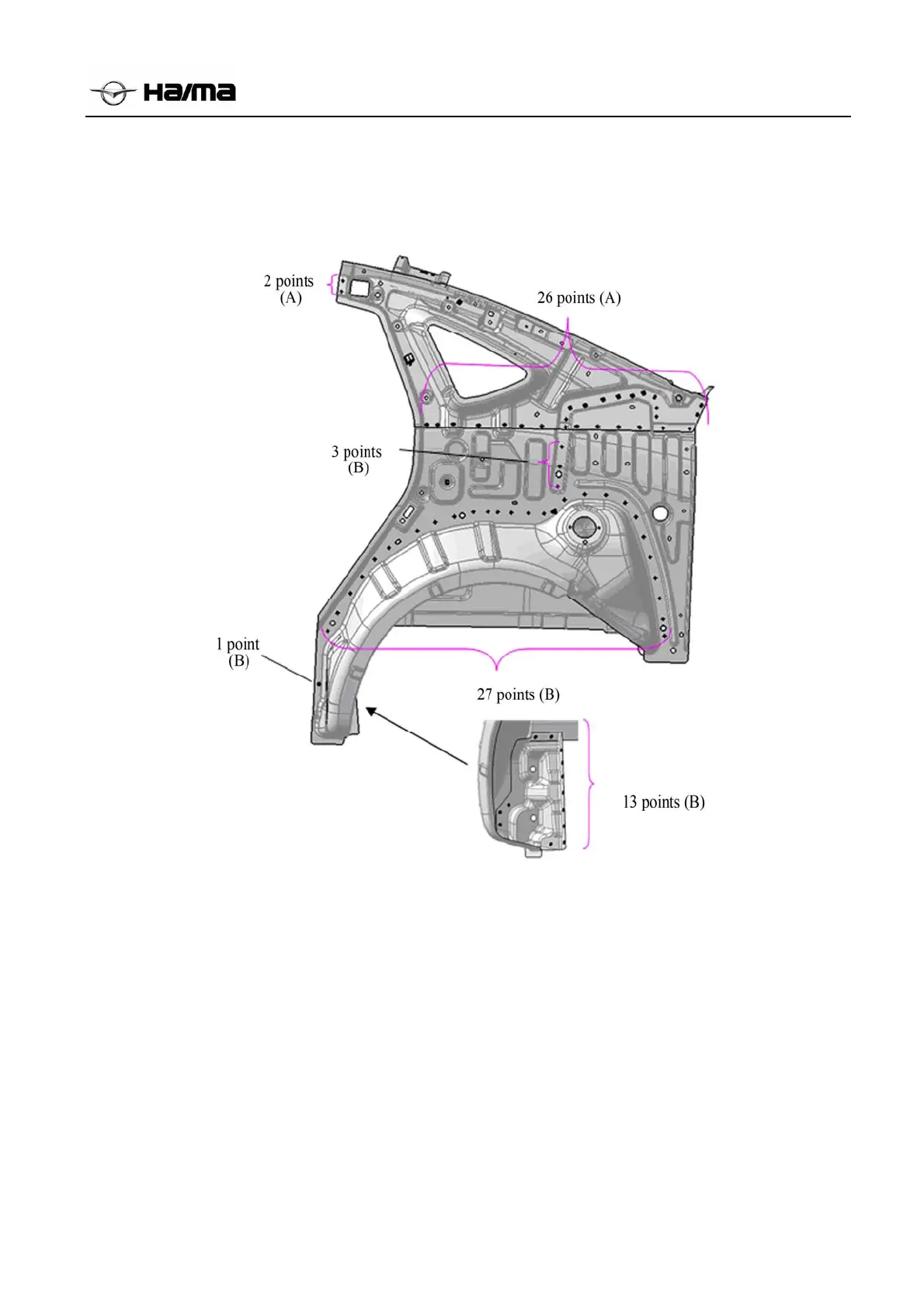

• Conduct drilling on area marked with (A), and then the inner plate of back pillar can be removed;

• Conduct drilling on area marked with (B), and then the outer plate of wheel guard can be removed;

• The left and right is symmetric if not specially noted.
