Replacement of Plates
IV-36

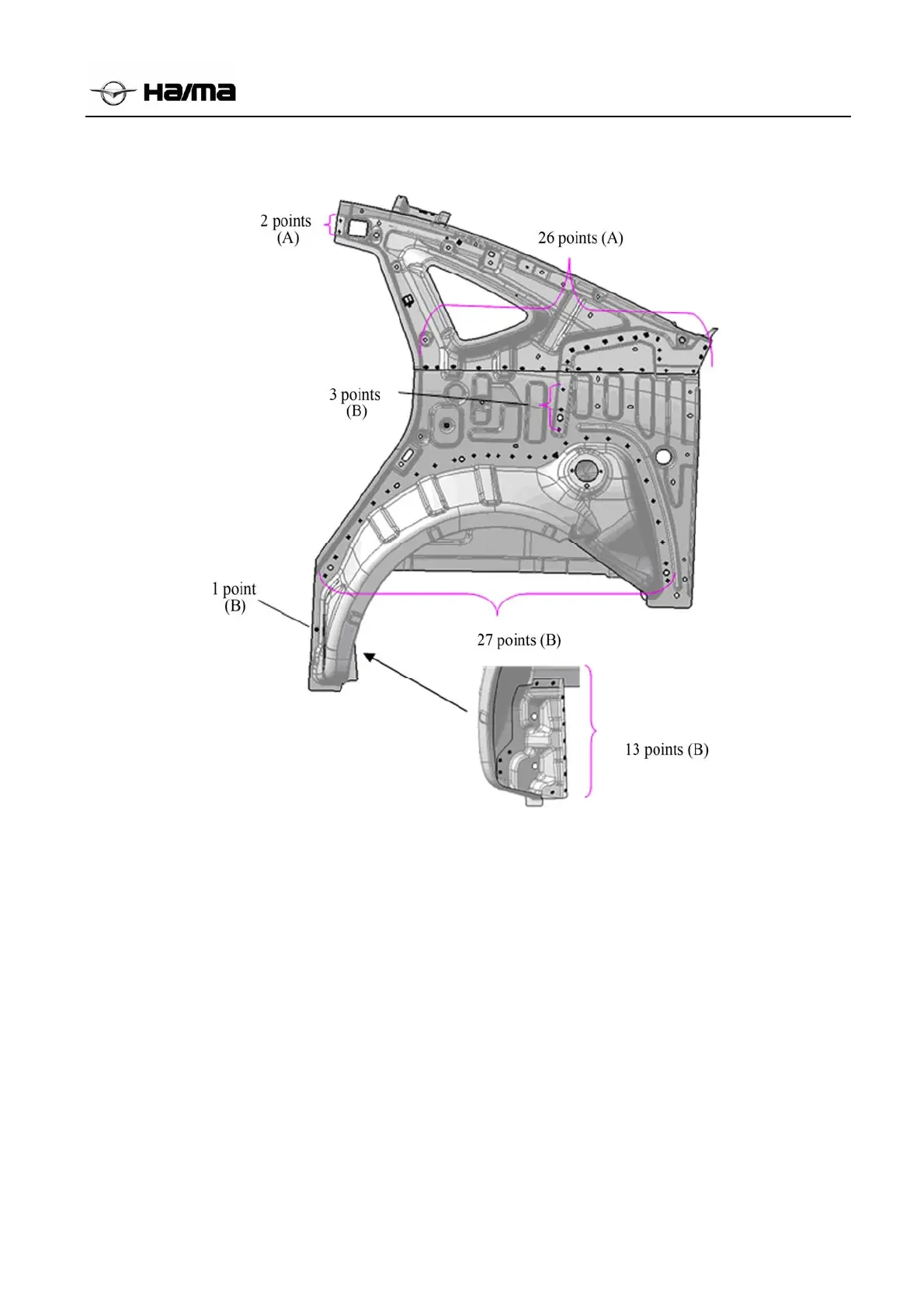

Installation (bilaterally symmetric, only left view provided)
• Trail assembles the new component and measures each component while installing the new component to ensure
dimensional consistency;
• After trail assembly of the new component, ensure matching situation of relevant components;
• Install the inner plate first, and then the outer plate.
