HAIMA M3 Series User Manual

Replacement of Plates
IV-27
B Pillar
Removal

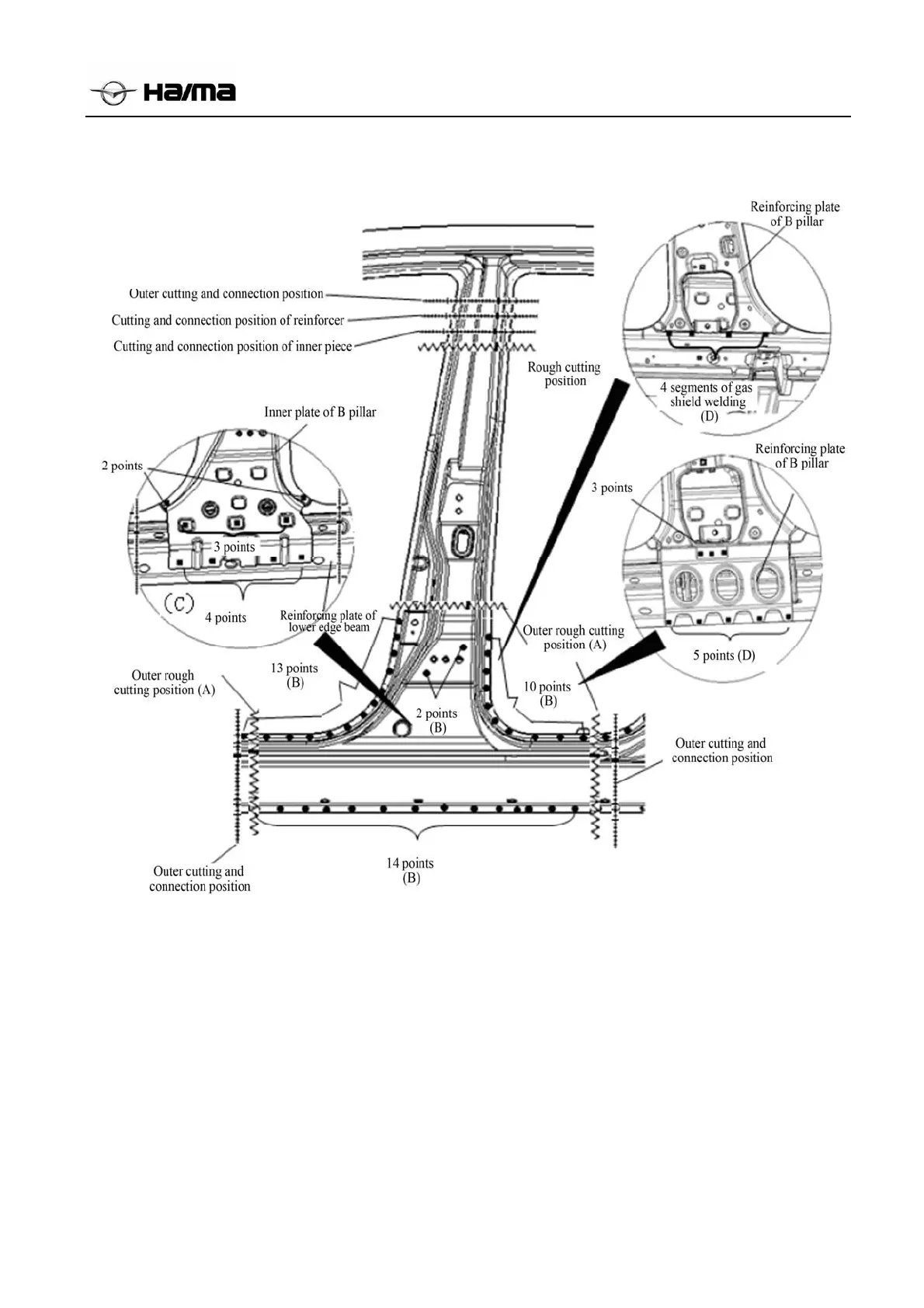

• Conduct rough cutting on area marked with (A) and drilling on area marked with (B), and remove the lower part
of the B pillar outer plate;
• Conduct cutting and drilling on area marked with (C), and remove the reinforcing plate of B pillar;
• Conduct drilling on area marked with (D), and remove the inner plate of B pillar;
• If the inner plate and lower edge beam reinforcing plate are not damaged during removal process, they can be
reused.
