Replacement of Plates

IV-12

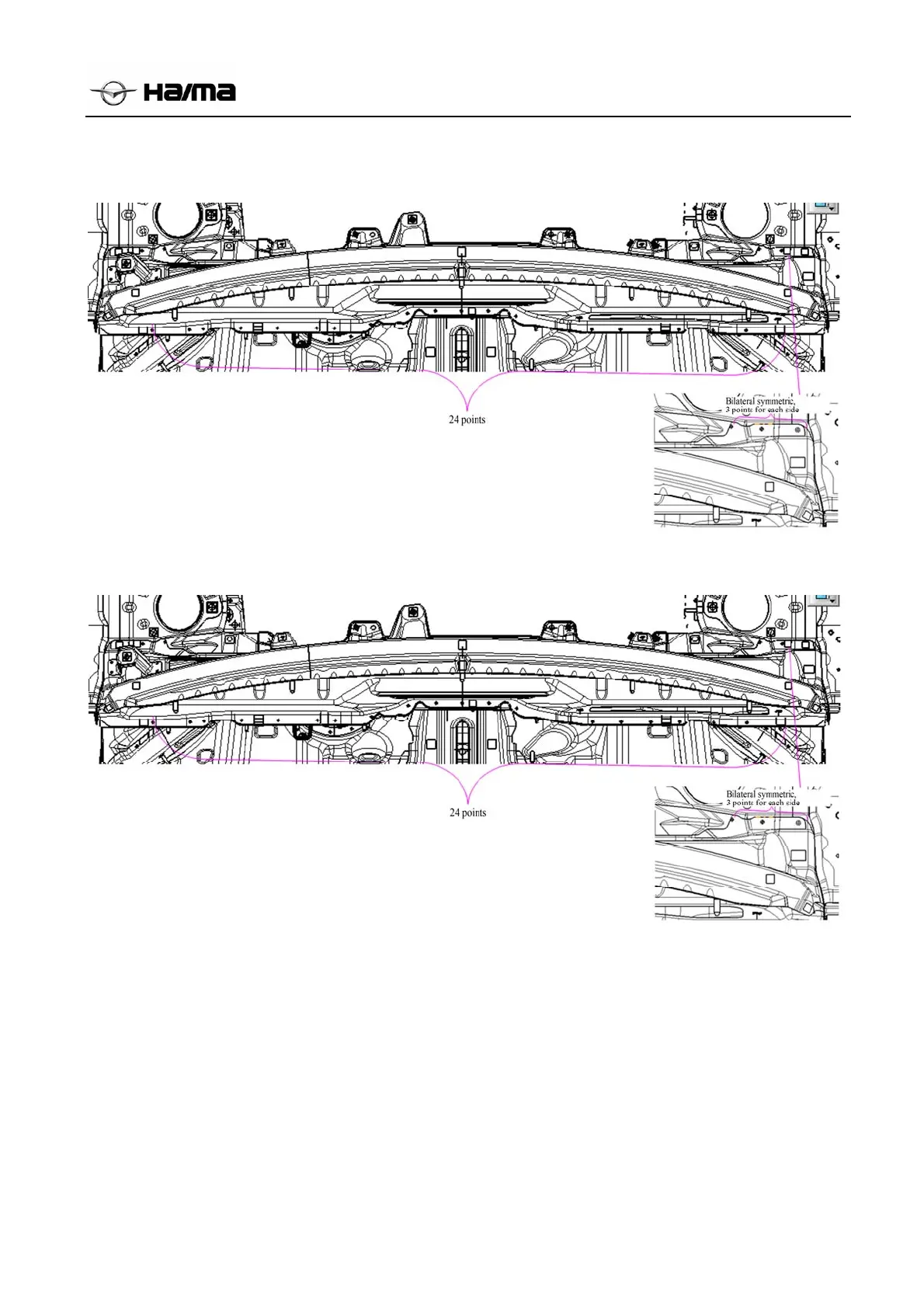

Ventilation Hood Assembly

Removal

Installation

• Each component shall be kept on correct position during installation of a new part to make sure that dimensions

of each portion upon installation are consistent with those of the car body.
