HAIMA M3 Series - Side Front Connecting Plate - Installation

Replacement of Plates
IV-8

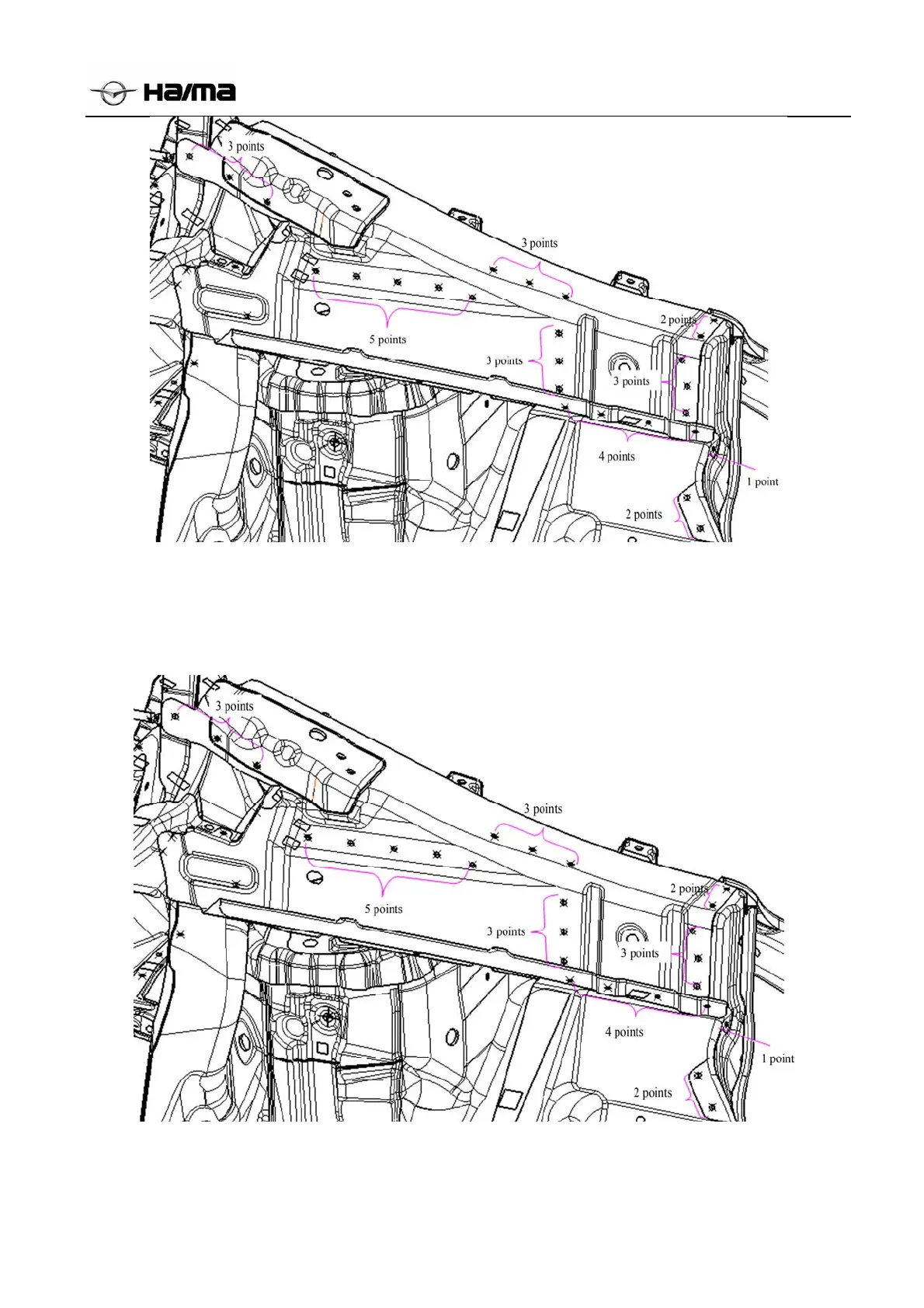

• Because the car body is bilaterally symmetric, only right view of the car body is provided here.
Installation
• Each component shall be kept on correct position during installation of a new part to make sure that dimensions
of each portion upon installation are consistent with those of the car body.
