HAIMA M3 Series User Manual

Replacement of Plates
IV-30

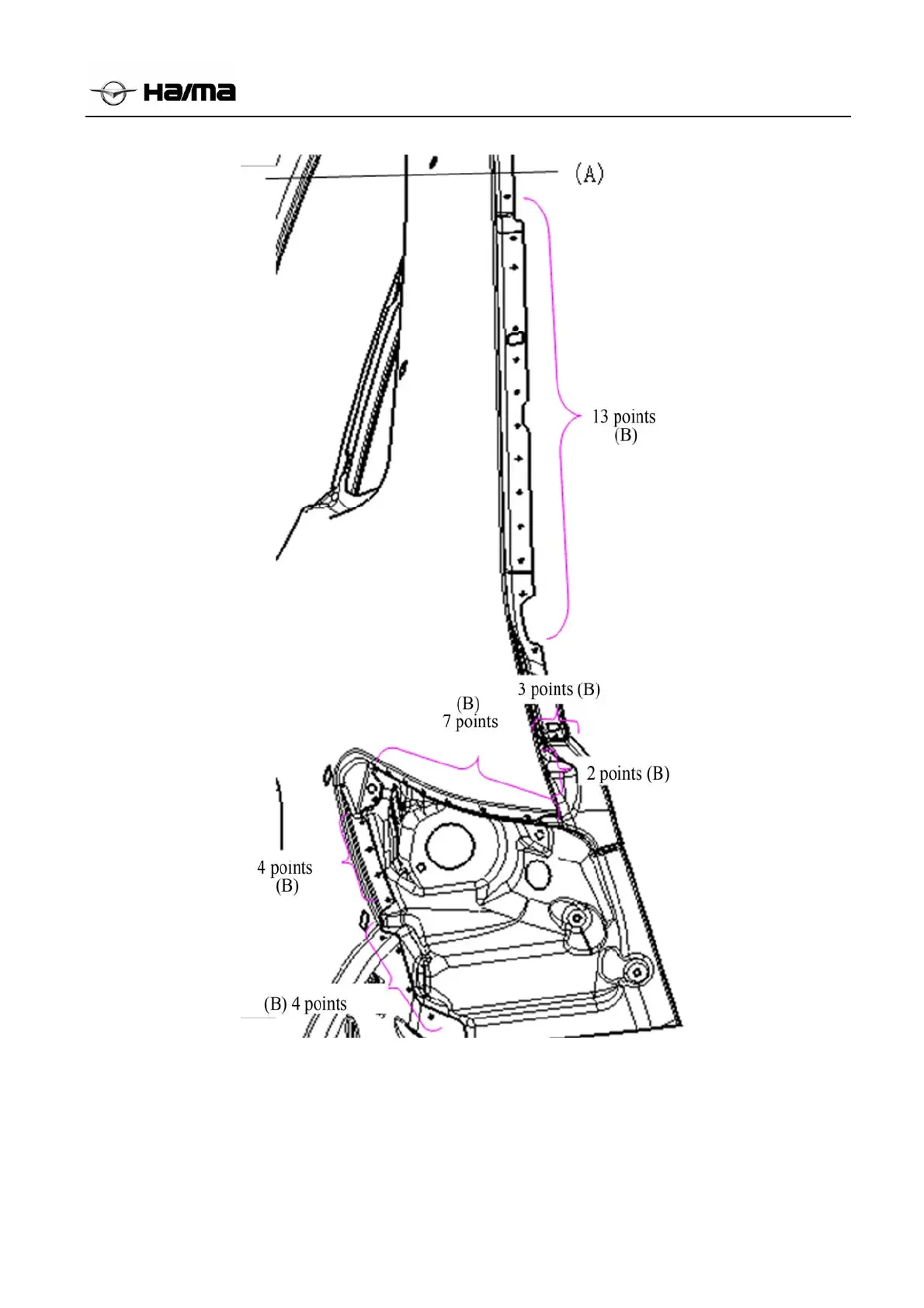

• Conduct rough cutting on area marked with (A) and drilling on area marked with (B), and remove the rear part
of the B pillar outer plate;
• The quantity of spot welding point B is related to the cutting position;
• The rear wheel guard is joined with spot welding glue.
