Operation & Maintenance & Service Manual
CJUV/012009/rev1/EN
FUSIBLE
LINKS
(3)
BRACKET
W/ EYEBOLT
BACKET HOLDING
DAMPER
COLLAR
COLLAR HAS 1/2" FLANGE ON INSIDE
PERIMETER FOR DAMPER TO REST ON
12 GAUGE STEEL
12 GAUGE STEEL
S.S.
CABLE
PIVOT ROD
VENTILATOR TOP
INSIDE THE EXHAUST PLENUM
CLIP (C)
EYE BOLT
CLIP (B)
CLIP (A)
COLLAR
FIRE DAMPER
#2 LINK
#3 LINK
#1 LINK
(D)
1. REMOVE GREASE FILTERS
2. UNRAVEL S.S. CABLE AT CLIP (A)
3. FEED LOOSE END OF CABLE THROUGH EYEBOLT AT CLIP (B), THEN BACK
THROUGH EYEBOLT AT CLIP (C)
4. HOLD FIRE DAMPER IN MAXIMUM OPEN POSITION TO ATTACH LINK AT POINT (D)
5. CLOSE "S" HOOKS AS REQUIRED
6. FOR FINAL ADJUSTMENT OF FIRE DAMPER TO ASSURE MAXIMUM OPEN POSTION,
USE EYE BOLTS AT CLIPS (A) AND (B) TO TIGHTEN FOR SLACK

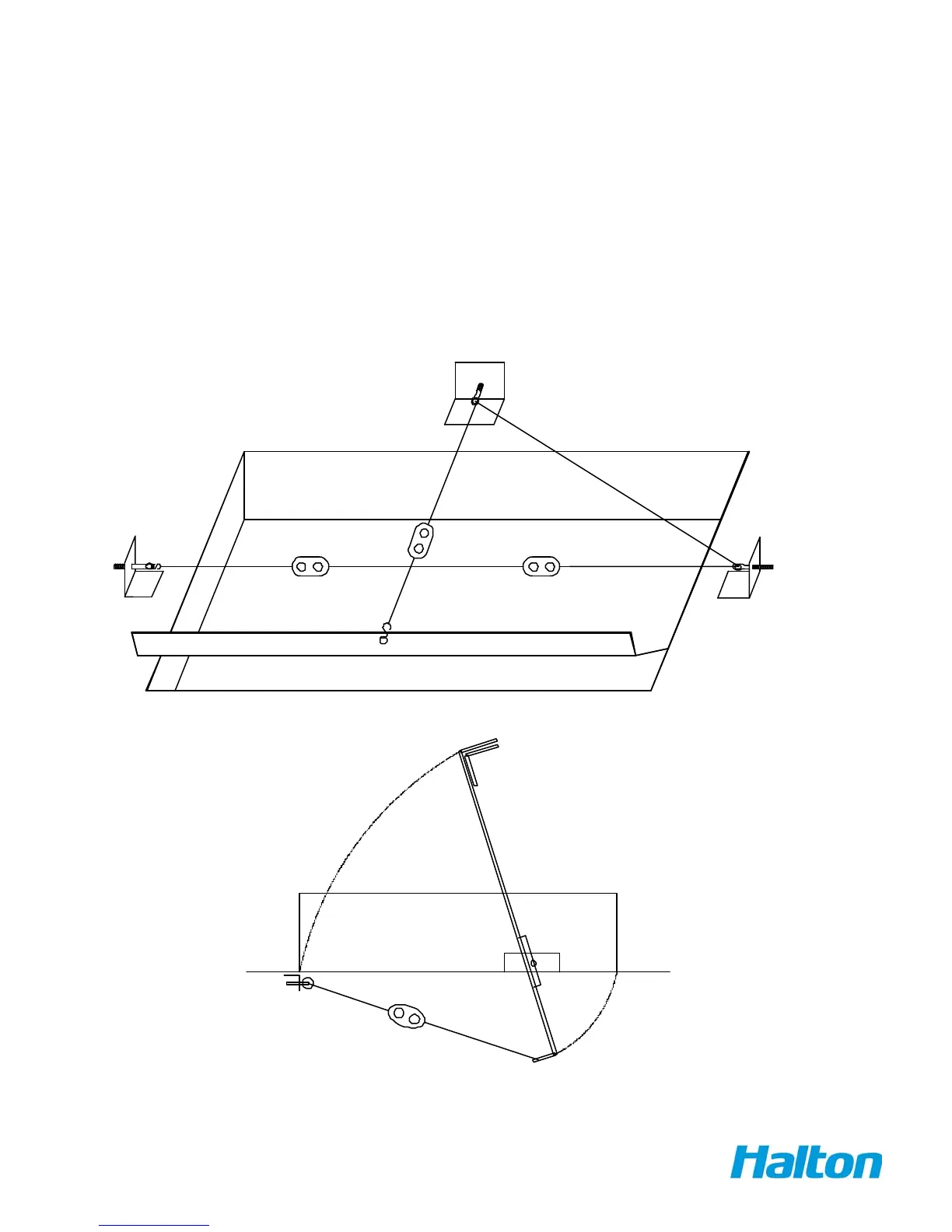

EXHAUST FIRE DAMPER ASSEMBLY
