a. Blade attachment hardware
(15 screws)
b. Electrical Hardware
(3 plastic wire connectors, 1 hanger pin, 1
locking pin)
c. Close-to-Ceiling mount hardware
(1 rubber gasket)
d. Miscellaneous Parts & Balancing Kit
(2 pull chains, blade balancing kit)
8. Blade Bracket (Flange) Set (5)
with blade bracket screws pre-installed
9. Decorative Leaves
10. Light Kit
11. Glass Bowl
12. Bulbs (3)
1. Slide-On Mounting Plate (inside canopy)
2. Downrod and Hanger Ball Assembly
3. Canopy with Canopy Ring attached
4. Fan Motor Assembly
5. Switch Housing
6. Decorative Motor Collar Cover
7. Blades (5)
2. Unpacking Your Fan
IMPORTANT: THIS PRODUCT AND/OR COMPONENTS ARE COVERED BY
ONE OR MORE OF THE FOLLOWING U.S. PATENTS: 5,947,436; 5,988,580;
5,971,573; 6,010,110; 6,010,306; 6,039,541; 6,046,416 AND OTHER
PATENTS PENDING.

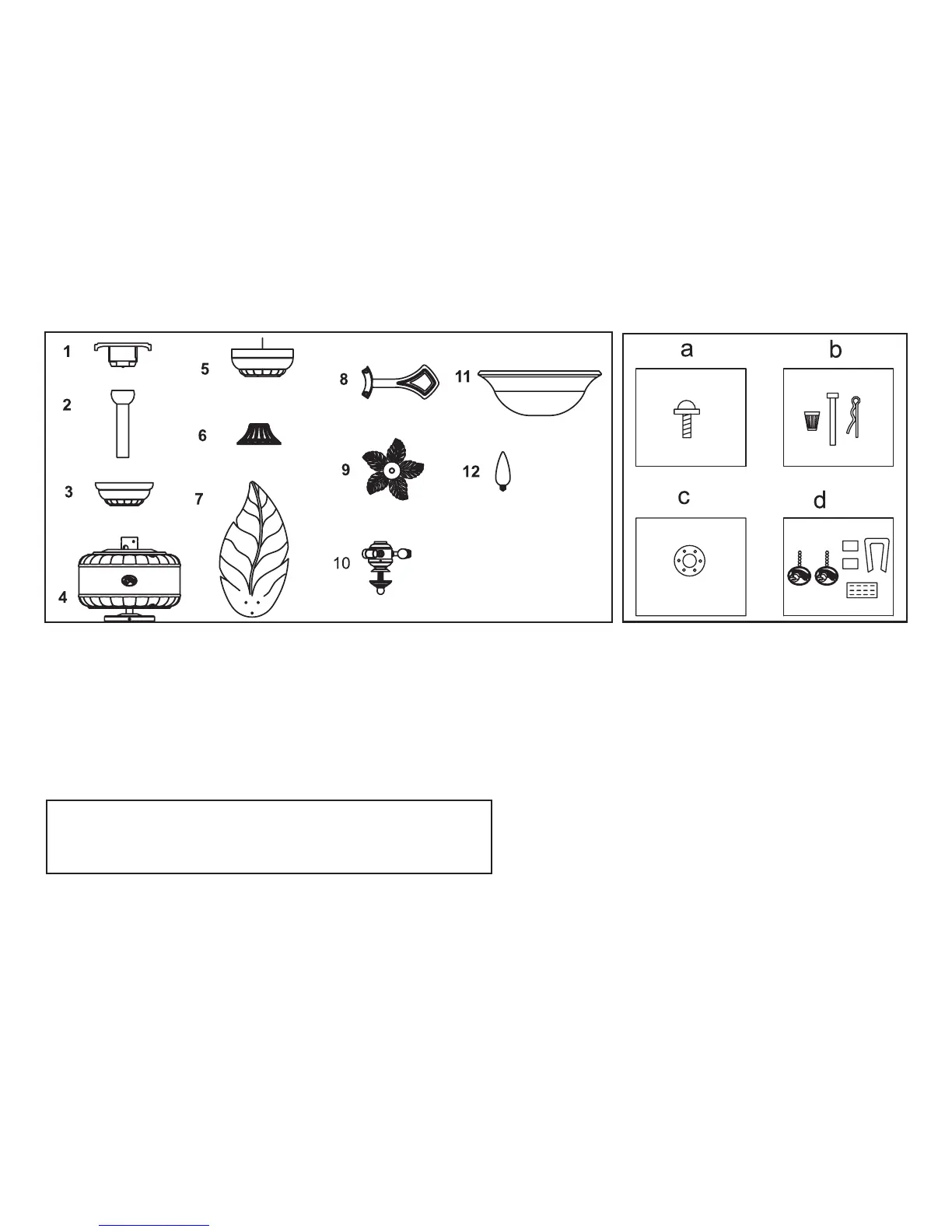

Unpack your fan and check the contents. You should have the following items:
