Han's Robot Elfin E03 - Tool Payload Range

7

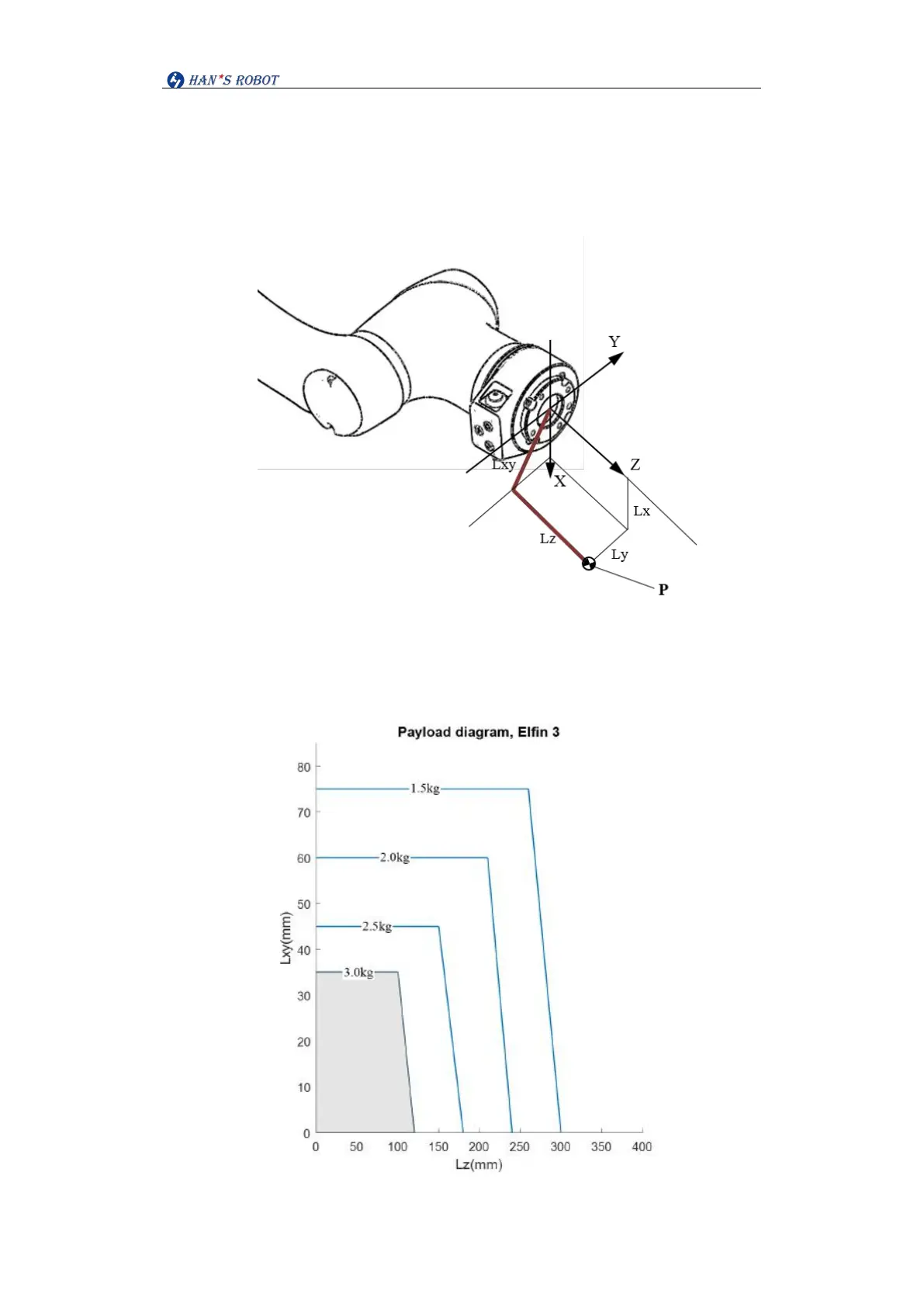

1.3.6 Tool Payload Range
Due to different distances between load center at the end of robot and the center of
installed flange, the allowable maximum payload of robot will change accordingly. The
relationship between the centroid distance and allowable payload is shown as below:
