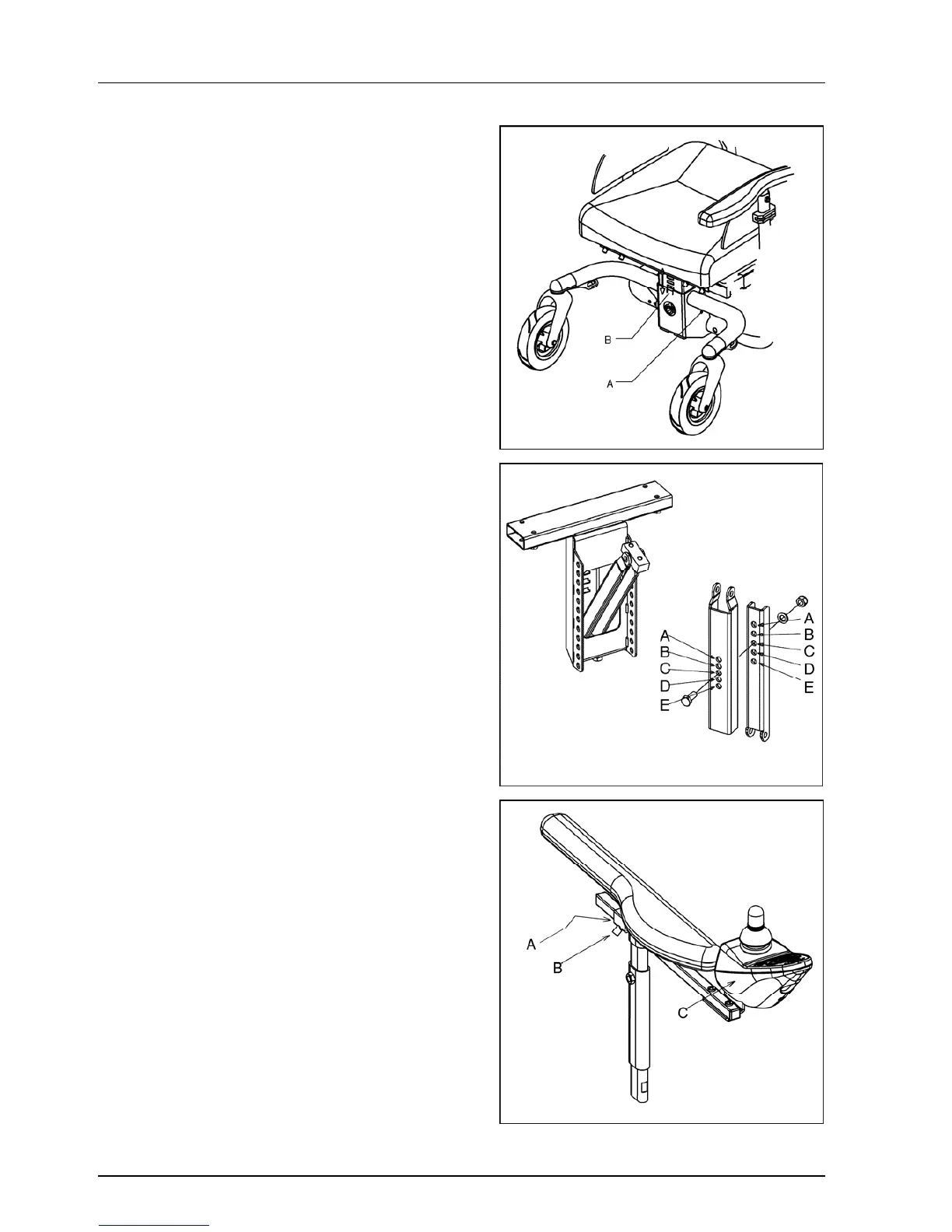

Handicare IBIS XP - Seat Height Adjustment; Seat Angle Adjustment; Fixed Controller Adjustment

Operating instructions
20
3.11 Adjustment options
(dealer)
Seat height
Before adjusting the seat height,
remove as many heavy seat parts as
possible (seat, backrest, etc.) to limit
the weight to be lifted.
1. Loosen the 4 bolts (A) using a 13
mm spanner, and remove them.
2. Lift the seat post off the bracket (B)
and place it back in the desired
position on the bracket.
3. Tighten the bolts (A) securely.
Seat angle
1. Loosen the bolt using a 13 mm
spanner, and remove it.
2. Move the seat in the desired
position and put the bolt back in
place.
A = 0˚
B = 2˚
C = 4˚
D = 6˚
E = 8˚
3. Tighten the bolt securely.
Controller ‘fixed’
Depth:
1. Loosen the setscrew (B) a few
turns with a 4mm Allen key.
2. Slide the controller (C) in the
desired position.
3. Tighten the setscrew securely.
Height:
1. Loosen the setscrew (A) a few
turns with a 3 mm Allen key.
2. Slide the controller (C) in the
desired position.
3. Tighten the setscrew securely.
