OPERATION

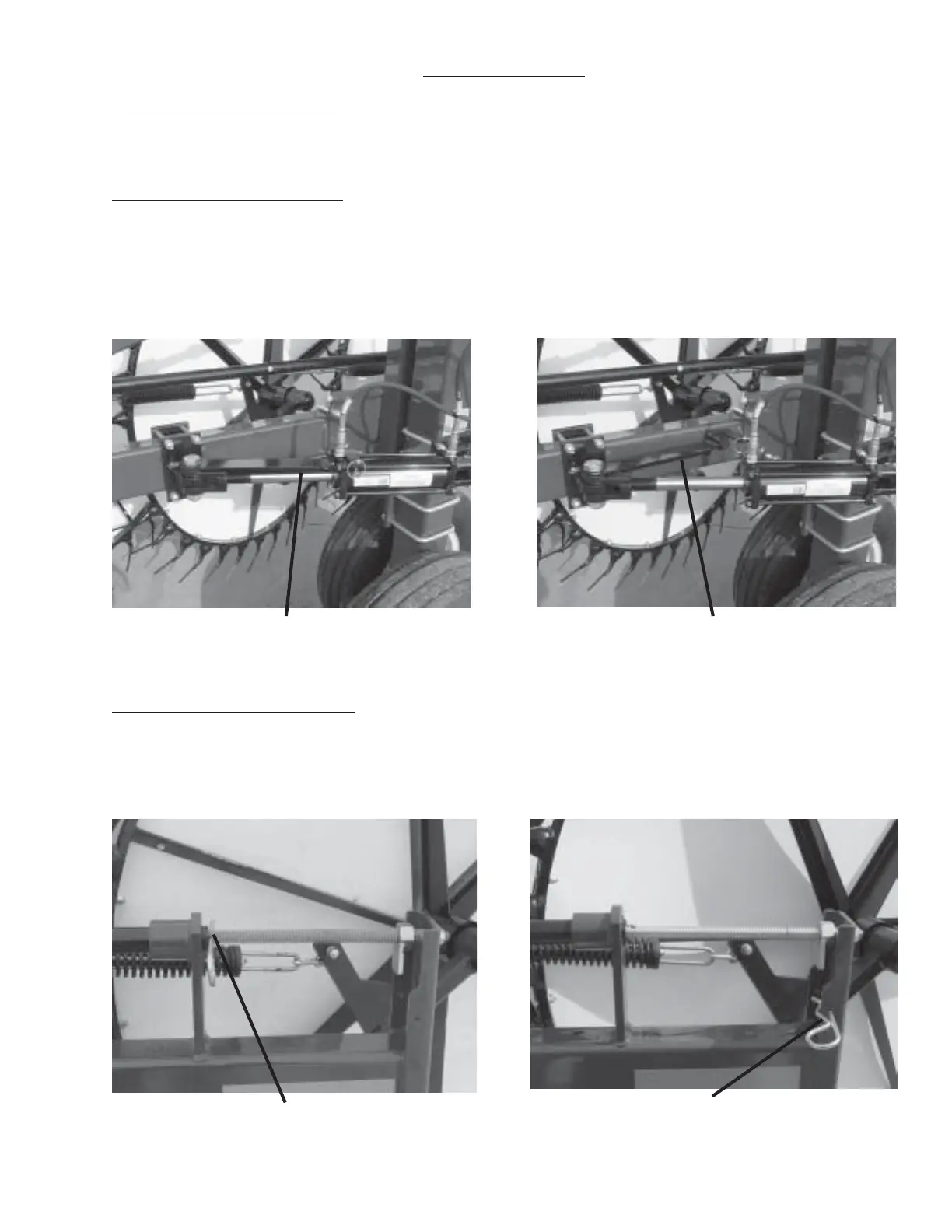

TRANSPORT LOCKS
RAKE BEAM LOCKS
Mounted on the rake beams are Self-storing transport locks for rake beam arms. Remove the clip pin and
swing the transport lock toward the rake beam. There should be a fair amount of drag required to swing the
lock. (A) shows the transport lock in the engaged position. (B) shows the transport lock in the storage
position, to be used when in the raking mode.
RAKE WHEEL LOCKS
Located at the rear of the lift pipe, is a hair pin which is used to secure the rake wheels in the up position
for transport (C). When in the down, or raking position, place the locking hair pin in the convenient storage
position as shown (D).
-11-
A B
C D
