INSTALLATION

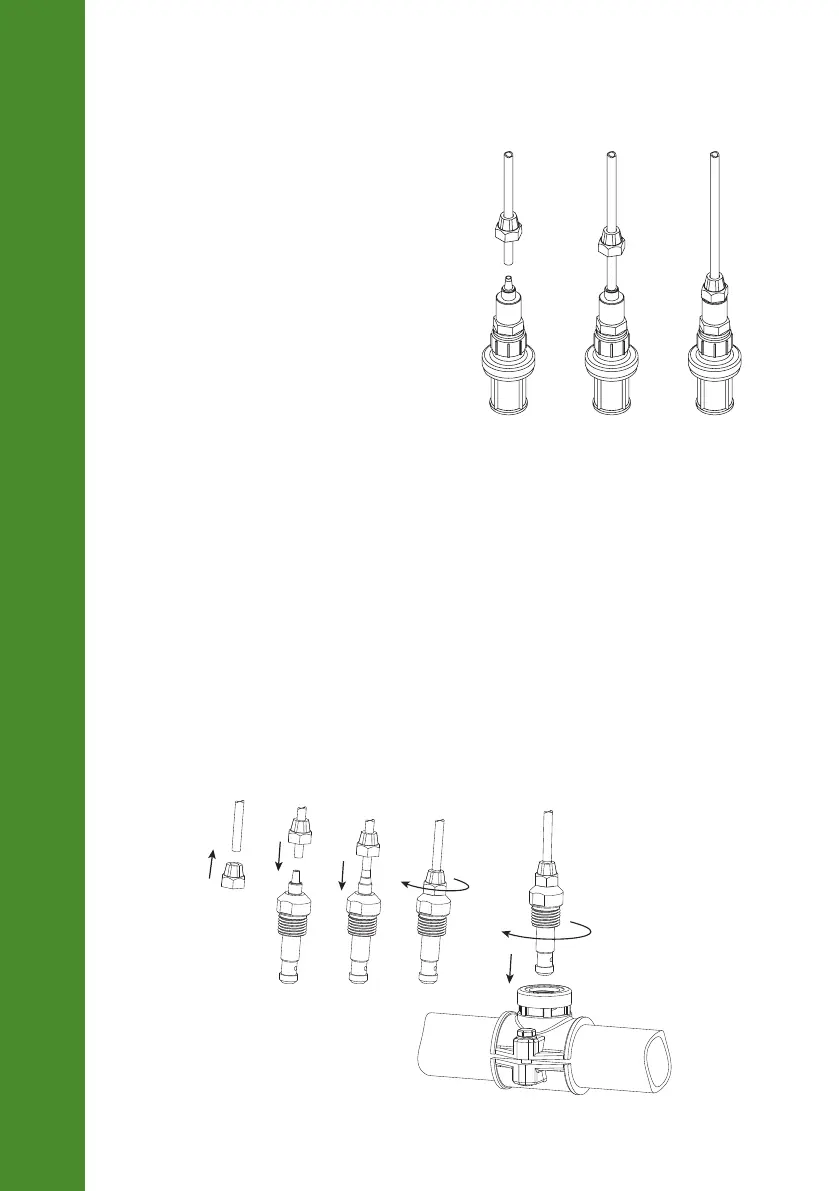

Installing Aspiration Filter
The aspiration filter is used in the reagent tank to filter
and prevent debris from entering the tubing.
• Cut required length of aspiration tubing (flexible)
to reach between peristaltic pump inlet and
aspiration filter.
• Place the end of tubing on the filter.
• The compression fitting has to be screwed until
secured on the filter.
• Slide the compression fitting from the peristaltic
pump inlet onto the tubing.
• Slide the end of tubing over the fitting of the
peristaltic pump tubing.
• Slide compression fitting up over tubing.
• Tighten the fitting.
Installing Injector
• Cut the required length of dispensing (rigid) tubing to reach between injector saddle and outlet of
peristaltic pump.
• Place the compression fitting nut on the tubing.
• Place the end of tubing on the injector.
• The compression fitting has to be screwed until secured on the injector.
• Screw the injector in the saddle.
• Slide compression fitting from pump tubing onto tubing.
• Slide the end of tubing over fitting of pump tubing.
• Slide compression fitting over tubing.
• Secure and tighten the fitting.
