Hanna Instruments HI 904 - Electrical Connections

2-12
SETUP
2.3.4.4 Electrical Connections
• Connect the KF generator electrode to the 5-pin connector (C) using the supplied cable.
• Connect the KF detector electrode to the BNC connector (D).
• Connect the power adapter cable to the power input connector (B).

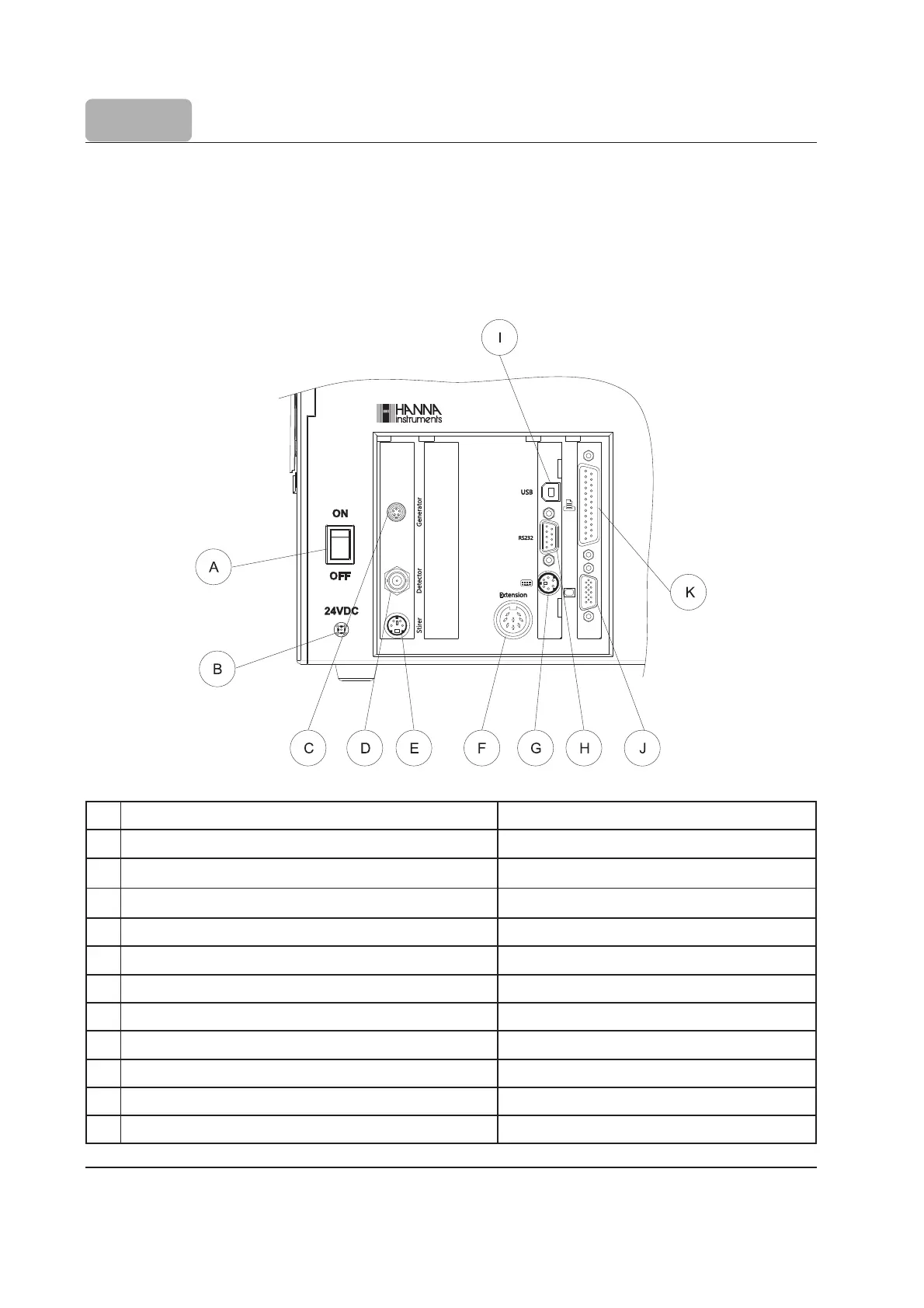

Figure 5
Function Type of Connector
A Power switch
B Power input connector (24 Vdc) DC Power jack connector
C Generator electrode output 5-pin connector
D Detector electrode input BNC socket
E External magnetic stirrer 4-pin mini DIN
F Extension connector 8-pin DIN socket
G PC keyboard connector 6-pin mini-DIN (Standard PS2)
H Balance interface connector (RS232) Standard DE-9 socket
I USB connector USB Standard B
J VGA display connector Standard VGA display 15-pin socket
K Printer connector Standard DB-25 socket
