3-7
USER INTERFACE
3.2.4 The Process Screen
When the user presses
while in
Idle Screen
, all titration related processes are started.

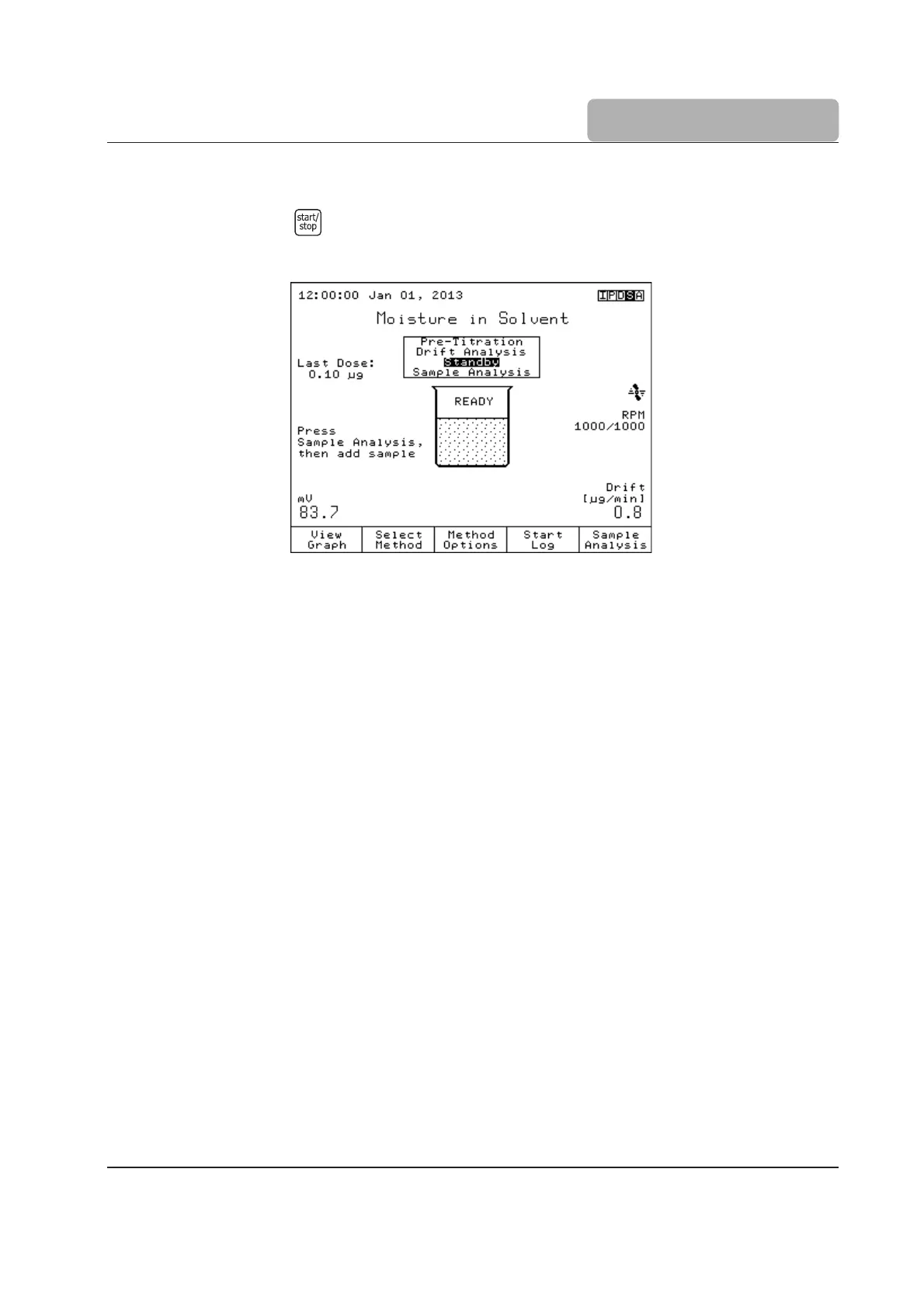

The titrator displays the
Process Screen
.
Process Screen fields:
Method name: Displays the name of the selected method.
Time and date: Displays the current date and time
Process stage field: Displays the current process (Pre-titration, Drift Analysis, Standby,
Sample Analysis).
Process status: Displays the process status with a descriptive drawing.
mV reading: Displays the KF electrode potential.
Last dose: Displays the last generated dose, in µL water.
Drift value: Displays the drift value (when available).
Stirrer information: Actual / Set stirrer speed is displayed in RPM.
Reminders: Indicates when a task needs to be performed and displays error
or warning messages.
