User’s Manual
POWER
POWER SOURCE
1. Make sure that the power cord is the correct type required in your area.
2. This LCD monitor has an Internal universal power supply that allows operation in either
100/120V AC or 220/240V AC voltage area (No user adjustment is required.)
3. Connect the AC-power cord one end to your LCD monitor’s AC-input socket, the other
end to wall-outlet .
MAKING CONNECTIONS
CONNECTING TO A PC:
Turn off your computer before performing the procedure below.
1. Connect one end of the D-Sub cable to the back of the monitor and connect the other
end to the computer’s D-Sub port.
2. Connect one end of the HDMI to DVI-D cable (Dual input mode optional) to the back of
the monitor and connect the other end to the computer’s DVI-D port.
3. Connect the audio cable between the monitor's audio input and the PC's audio output
(green port).
4. Plug one end of the AC power cord to the LCD monitor’s AC input socket, and the other
end to Wall outlet.
5. Turn on your monitor and computer.

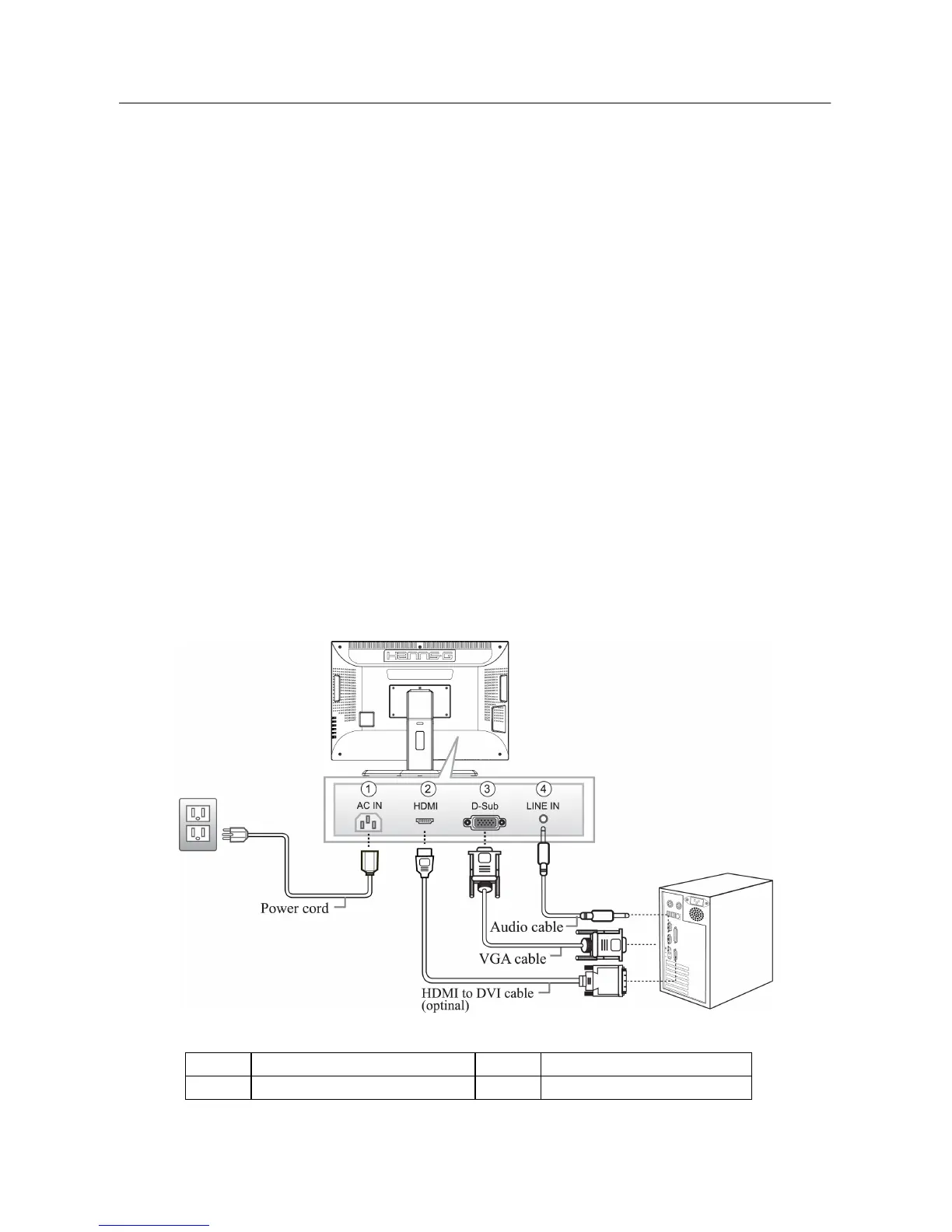

Figure.2. Connecting to a PC
1. Power AC Input 2. HDMI Input
3. VGA Input 4. Audio Input
