- For gear units (type QV...), sizes J up to T
Use only the integral rods
Note:
For handling of gear units equipped with a lubrication system caution is necessary.
Particular circumstances might dictate the temporary removal of thermostat(s), pressure gauge(s) and/or part of
the oil feed piping. After removal of the latter elements, one should take special care to avoid ingress of
moisture, etc... into the lubrication system of subject gear unit(s).

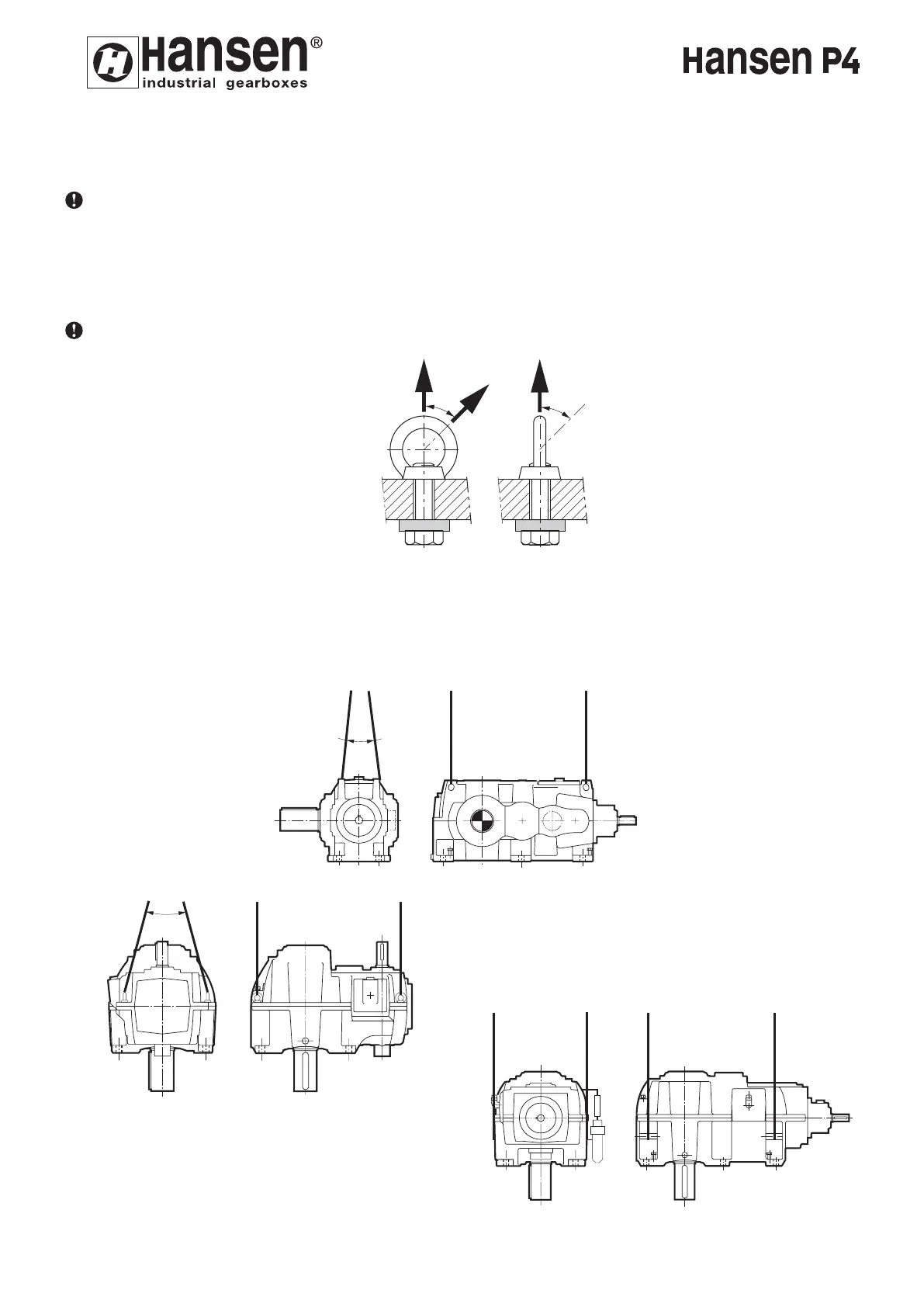

5.2. DIRECTION OF LIFTING FORCE FOR EYE NUTS (WITH BOLTS)
Lifting eye nuts (with bolts) must be fully engaged before lifting!
If the condition for direction of lifting force for eye bolts cannot be satisfied, bow (anchor) shackles, rotating eye
bolts or movable eye bolts can be applied. Refer to your supplier for the appropriate selection of lifting tools.
Functioning and security conditions of the selected lifting tools must always be satisfied.
5.3. LIFTING OF THE GEAR UNIT PROVIDED WITH FOUR LIFTING POINTS
ENGLISH
16
max. 45°
0°
30°
(max.
45°)
30°
(max. 45°)
