hanshow HS C09978 - Hardware Interface Description

Hanshow ESL Controller HS_C09978 Product Manual
5 Hanshow Copyright Reserved ©
Hanshow Technology Co., Ltd.
Item
Description
Dimension
L*W*H (mm)
40*88*16
Weight
Net weight (g)
40.2
Case
-
White
2.2 Hardware interface

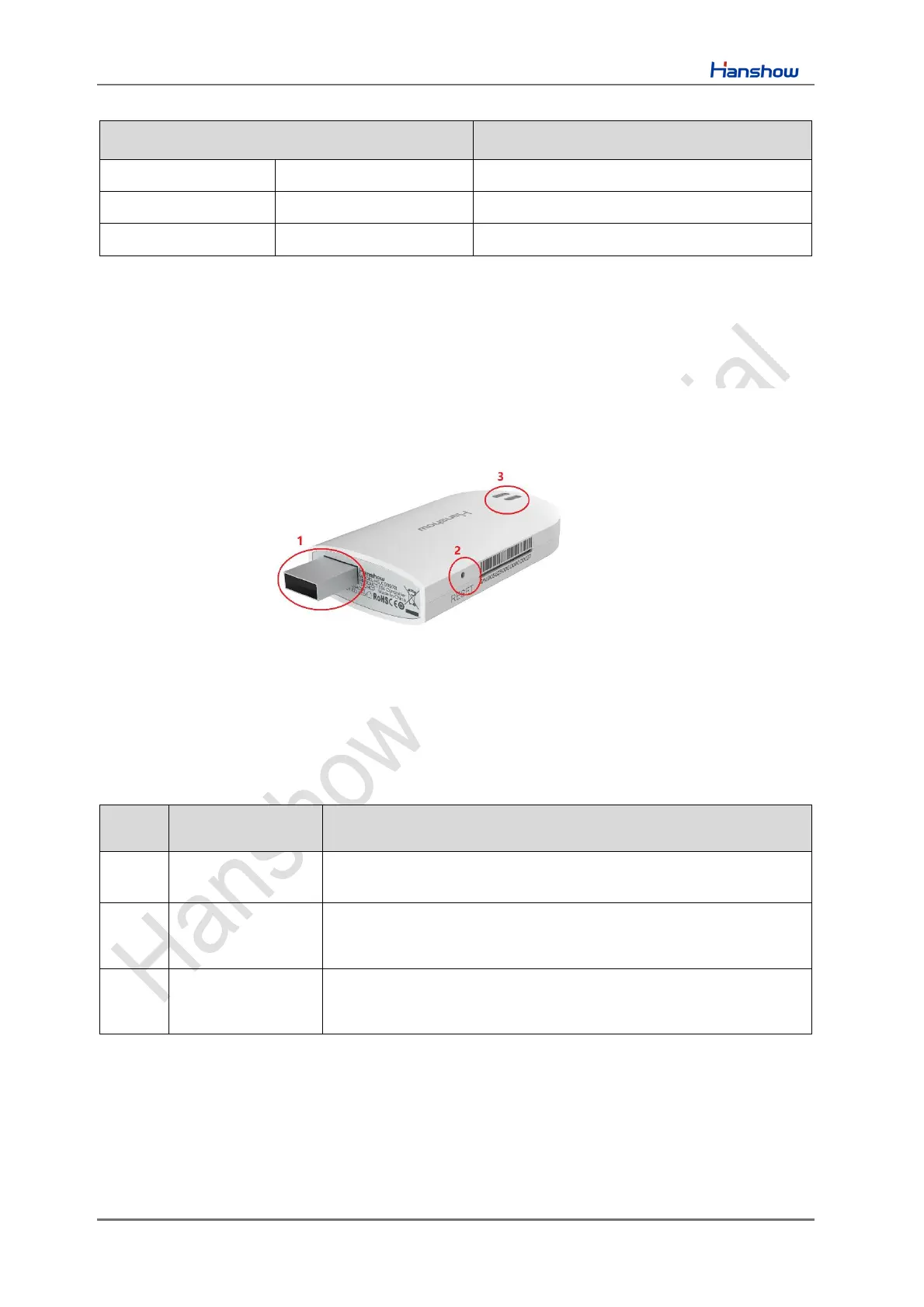

HS_C09978’s physical interfaces and each description is as shown in Figure 2-1 and
Table 2-2.
Figure 2-1 Hardware interface of HS_C09978
Table 2-2 Function description for each interface
No.
Interface name
Description
1
USB interface
Used for power port and virtual network port.
2
RESET hole
Used for system software reset. Supports for press and hold
operation. For more information, see the section of 2.3.
3
LED indicator
System status indicator. For more information, see the section of
2.4.
