5.1 DisplayArea

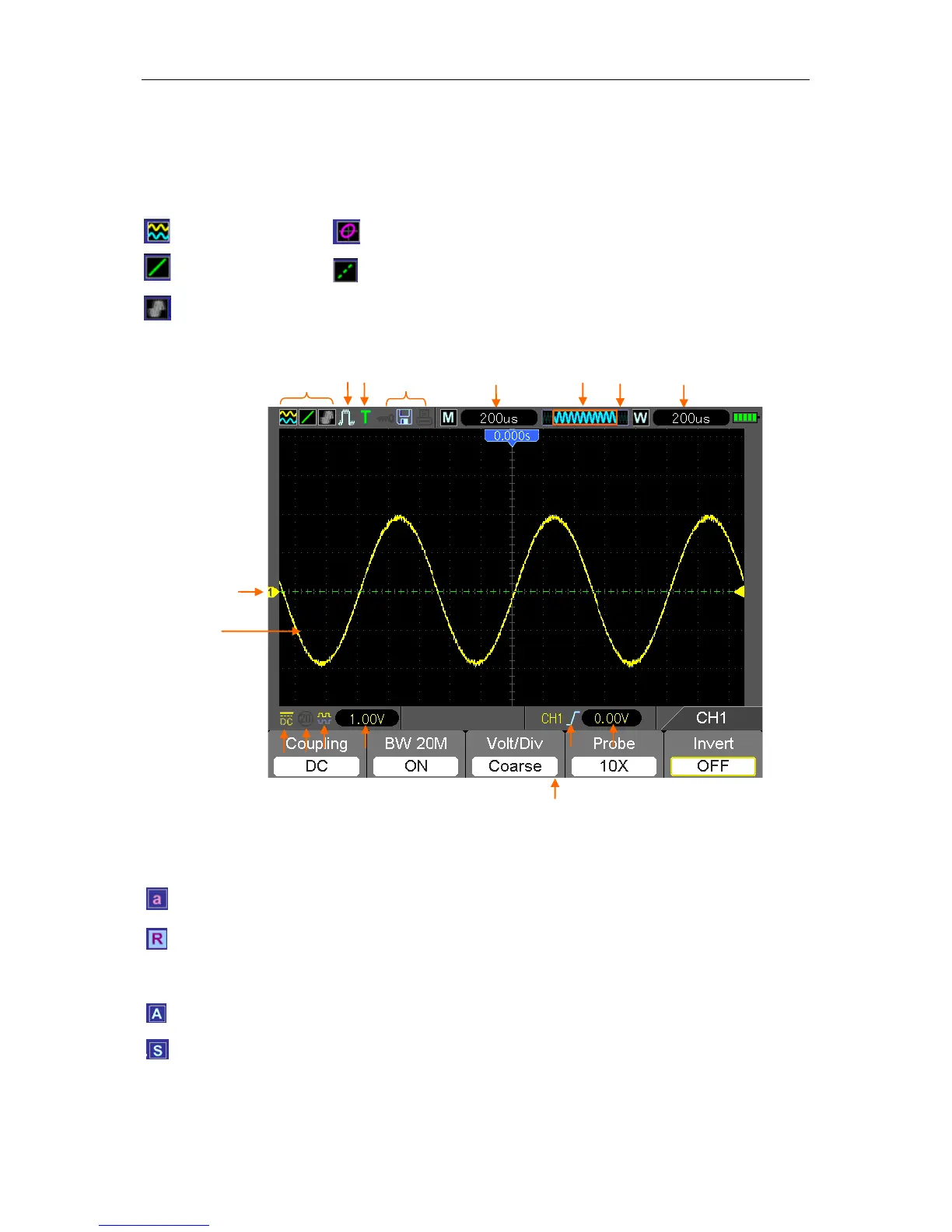

1. Display Format:
2. Acquisition Mode: Normal, Peak Detect or Average
3. Trigger Status:
The oscilloscope is acquiring pretriggered data.
All pretriggered data have been acquired and the oscilloscope is ready to accept a trigger.
T The oscilloscope has detected a trigger and is acquiring the posttrigger information.
The oscilloscope works in auto mode and is acquiring waveforms in the absence of triggers.
The oscilloscope is acquiring and displaying waveform data continuously in scan mode.
● The oscilloscope has stopped acquiring waveform data.
S The oscilloscope has finished a single sequence acquisition.
:
YT
: Vectors
:
Gray indicates auto persistence; Green means persistence display is enabled.
When
the icon is set to green, the time for persistence display will be shown behind it.
: XY
:
Dots
9
1 2 3 4 5 6 7 8
17
10
13 12 11
14 15
16
