Hantek DSO5000 Series User Manual

Basic Operation

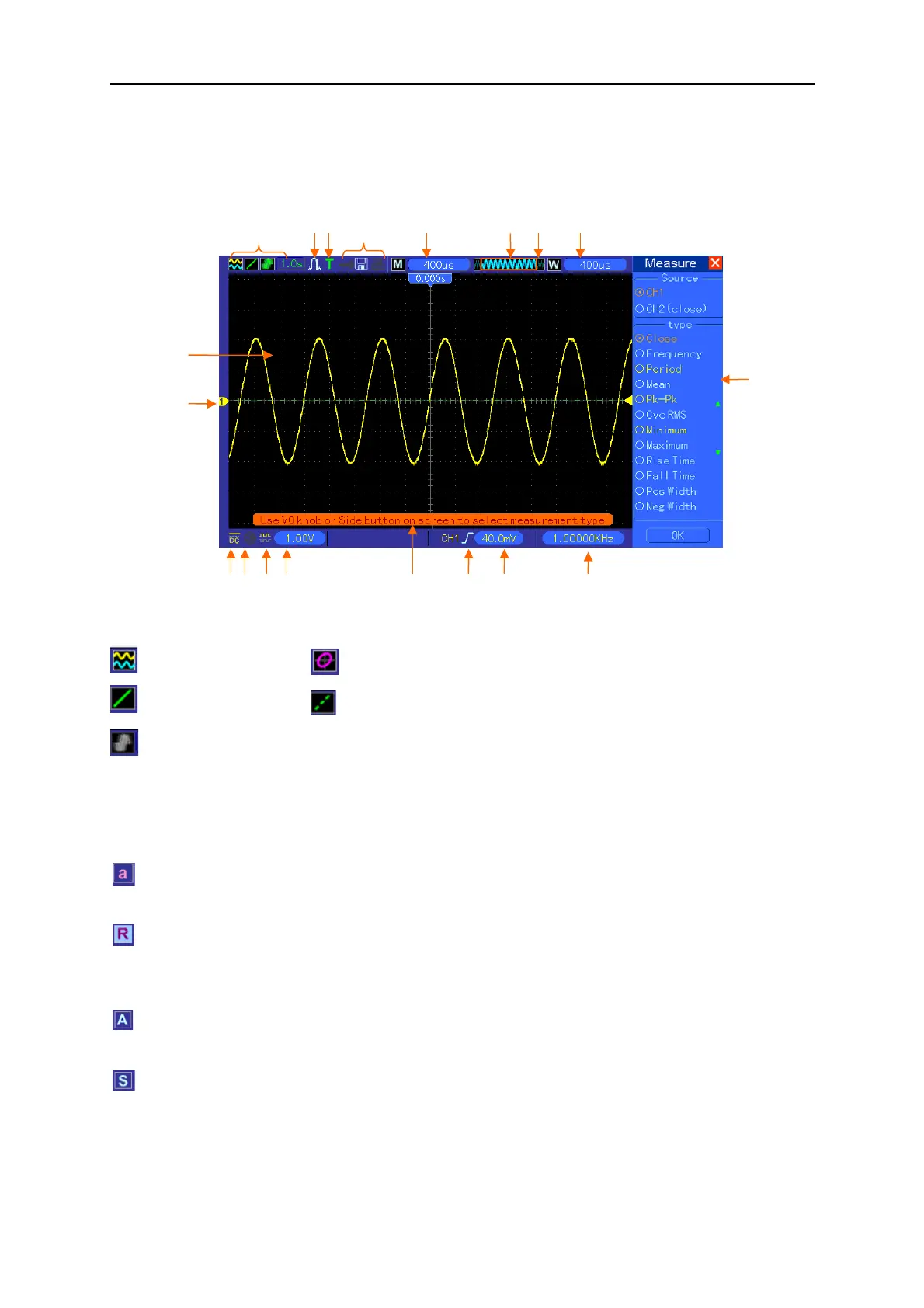

5.1 Display Area
1.
Display Format:
2.
Acquisition Mode: Normal, Peak Detect or Average
3.
Trigger Status:
The oscilloscope is acquiring pretriggered data.
All pretriggered data have been acquired and the oscilloscope is ready to accept a trigger.
T The oscilloscope has detected a trigger and is acquiring the posttrigger information.
The oscilloscope works in auto mode and is acquiring waveforms in the absence of
triggers.
The oscilloscope is acquiring and displaying waveform data continuously in scan mode.
● The oscilloscope has stopped acquiring waveform data.
S The oscilloscope has finished a single sequence acquisition.
DSO5000 Series Digital Storage Oscilloscope User Manual 17
10
13 12 11
17 16 15 14
1 2 3 4 5 6 7 8
9
18
19
: YT
: Vectors
: Gray indicates auto persistence; Green means persistence display is enabled. When
the icon is set to green, the time for persistence display will be shown behind it.
: XY
: Dots
