Hantek DSO5000 Series User Manual

Basic Operation
Chapter 5 Basic Operation
The front panel of the oscilloscope is divided into several functional areas. In this chapter we will
give a quick overview of all control buttons and knobs on the front panel as well as the displayed
information on the screen and relative testing operations. The figure below illustrates the front
panel of the DSO5000 series digital oscilloscope.

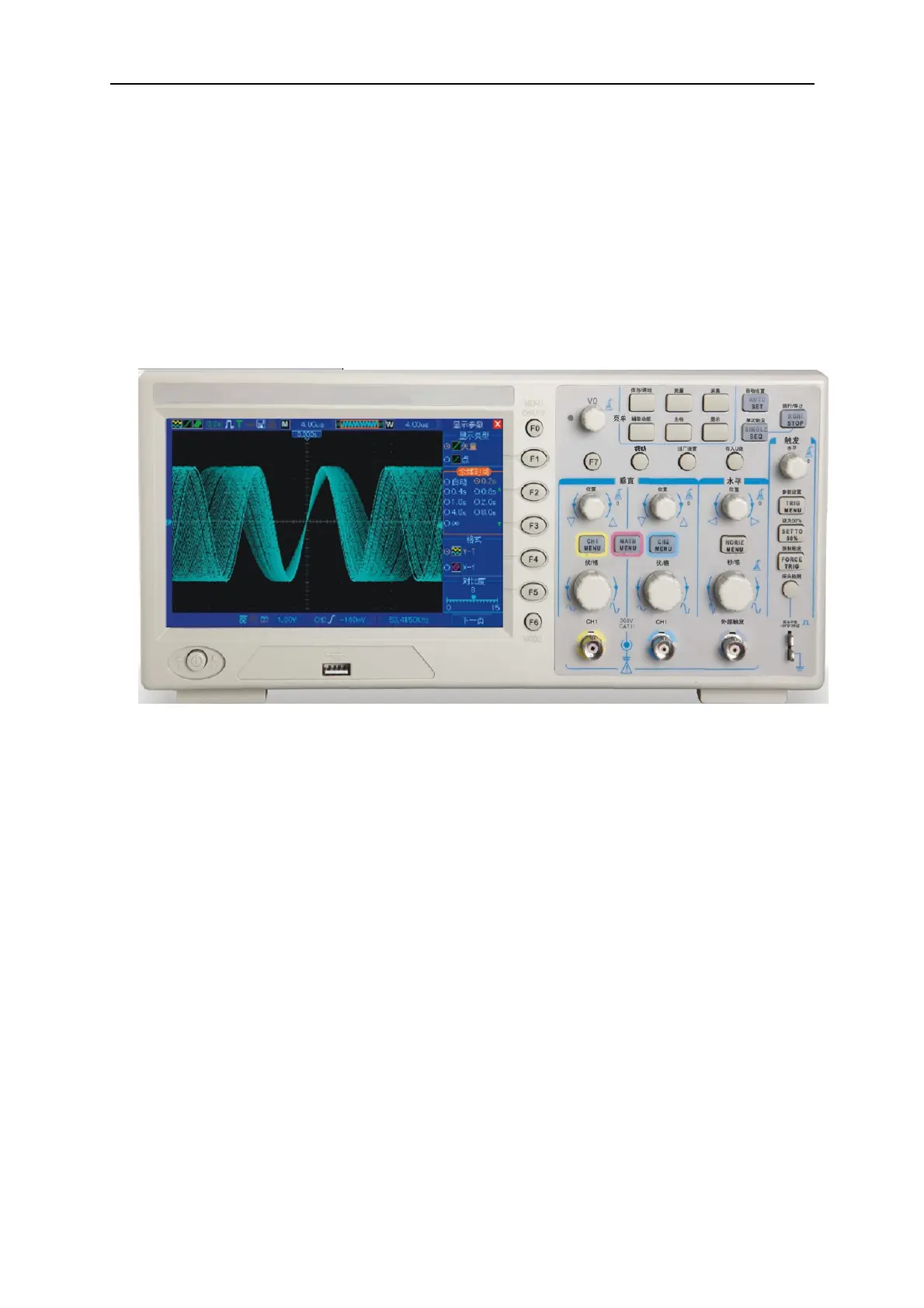

Front Panel of
DSO5000
Series
DSO5000 Series Digital Storage Oscilloscope User Manual 16
