Hantek DSO5000 Series User Manual

Basic Operation
Mode Auto
Normal
Overtime t Press F5 to select Overtime option and adjust V0 to set the
time.
Coupling AC
DC
HF Reject
LF Reject
Selects the components of the trigger signal applied to the
trigger circuitry.

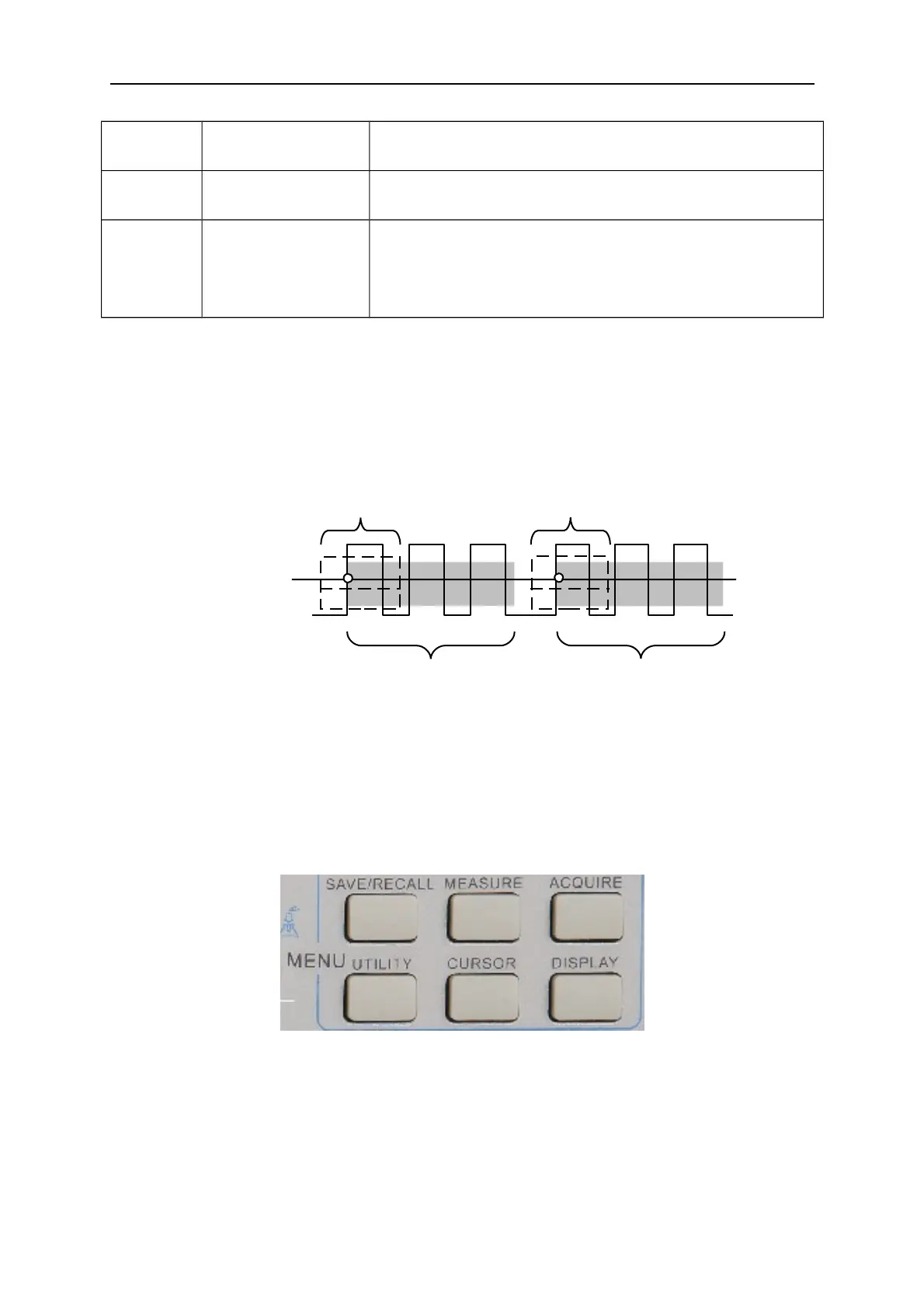

Holdoff: To use Trigger Holdoff, push the HORIZONTAL Menu button and set the Holdoff Time
option by pressing F4. The Trigger Holdoff function can be used to generate a stable display of
complex waveforms (such as pulse trains). Holdoff is the time between when the oscilloscope
detects one trigger and when it is ready to detect another. During the holdoff time, the
oscilloscope will not trigger. For a pulse train, the holdoff time can be adjusted to let the
oscilloscope trigger only on the first pulse in the train.
5.5 Menu and Option Buttons
As shown below, these six buttons at the top of the front panel are used mainly to recall relative
setup menus.
SAVE/RECALL: Displays the Save/Recall menu for setups and waveforms.
MEASURE: Displays the Measure menu.
ACQUIRE: Displays the Acquire menu.
DSO5000 Series Digital Storage Oscilloscope User Manual 36
Trigger Level
Indicates Trigg
er Points
Holdoff
Holdoff
Acquisition Interval
Acquisition Interval
