Application Examples
otherwise, differences in probe compensation will appear as errors in the differential
signal.

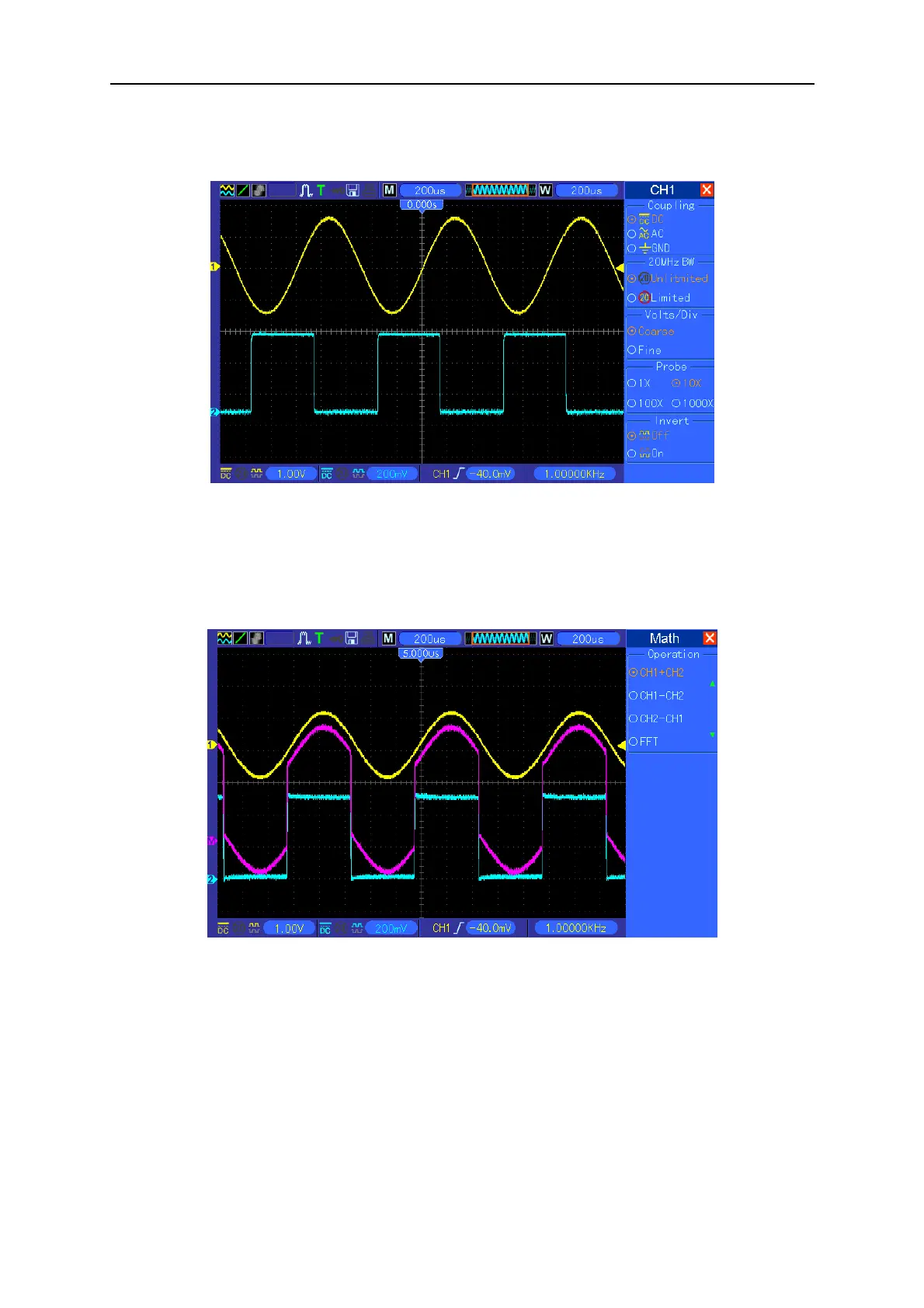

As illustrated in the above figure, input a 1KHz sine wave from CH1 and a 1KHz square wave
from CH2.
Follow the above steps to set up the Math menu, and observe the subtracted waveform as shown
in the figure below.
Those in pink are added waveforms.
6.11 Example 11: Measuring Data Propagation Delay
When you doubt that there appear instabilities in a serial data propagation control circuit, you can
set the oscilloscope to measure the propagation delay between the enable signal and the transfer
DSO5000 Series Digital Storage Oscilloscope User Manual 64
