Hantek DSO5000BM Series User Manual

Getting Started Guide

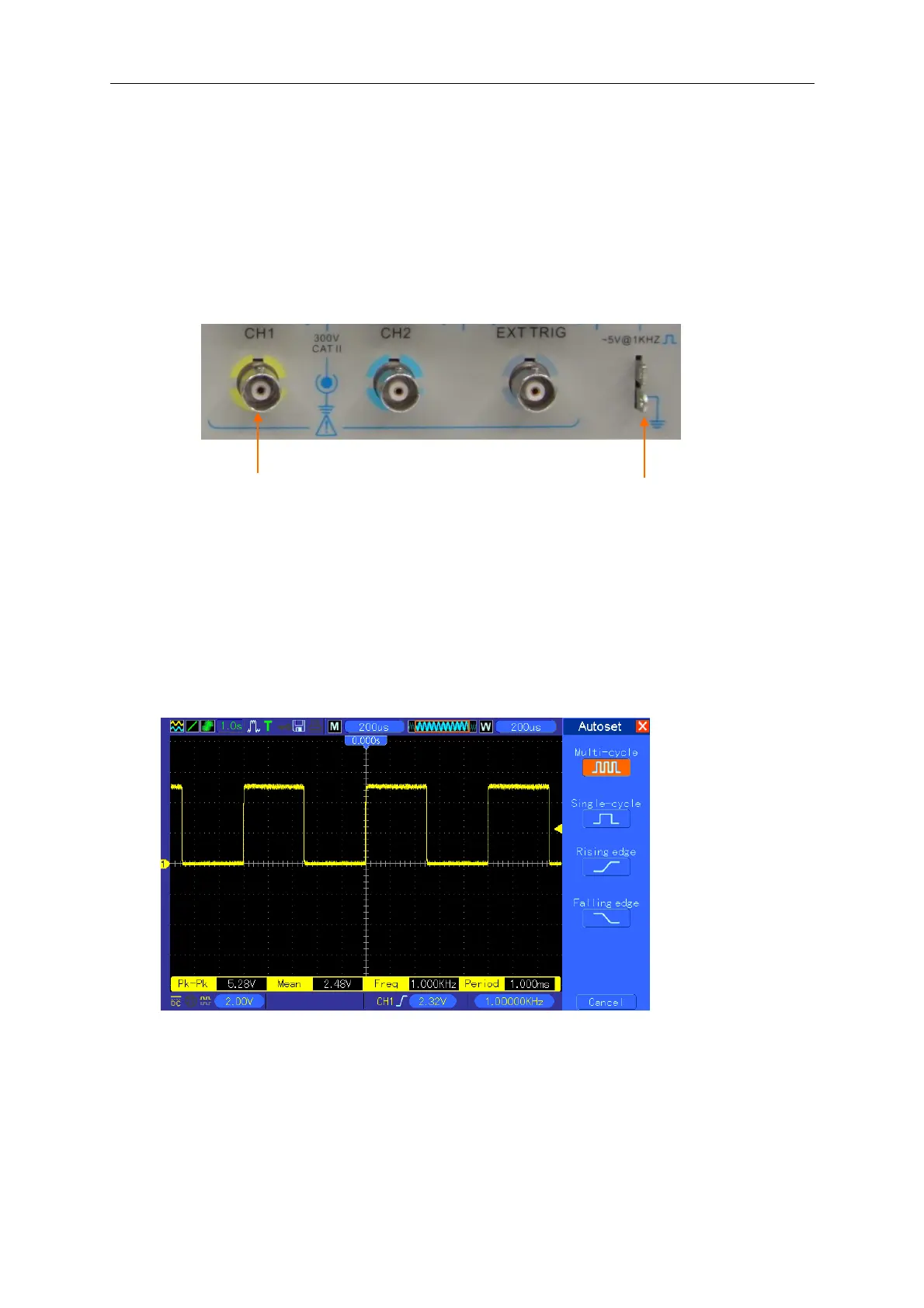

3.2.2Connect the oscilloscope
Set the switch on the probe to 10X and connect the probe to Channel 1 on the oscilloscope. First,
align the slot in the probe connector with the protuberance on the CH1 BNC and push to connect;
then, turn to right to lock the probe in place; after that, connect the probe tip and reference lead to
the PROBE COMP connectors. There is a mark on the panel: Probe COMP ~5V@1KHz.
3.2.3Observe the waveform
Press the AUTOSET button and you should see within a few seconds a square wave of about 5V
peak-to-peak at 1kHz in the display. Press the CH1 MENU button twice to remove Channel 1.
Push the CH2 MENU button and repeat Step 2 and Step 3 to observe Channel 2.
DSO5000 Series Digital Storage Oscilloscope User Manual 7
CH1: to connect with the probe
PROBE COMP

Hantek DSO5000BM Series Specifications

General

Brand	Hantek
Model	DSO5000BM Series
Category	Oscilloscope
Language	English
