Hantek DSO5000BM Series User Manual

Basic Operation
corresponding menu.

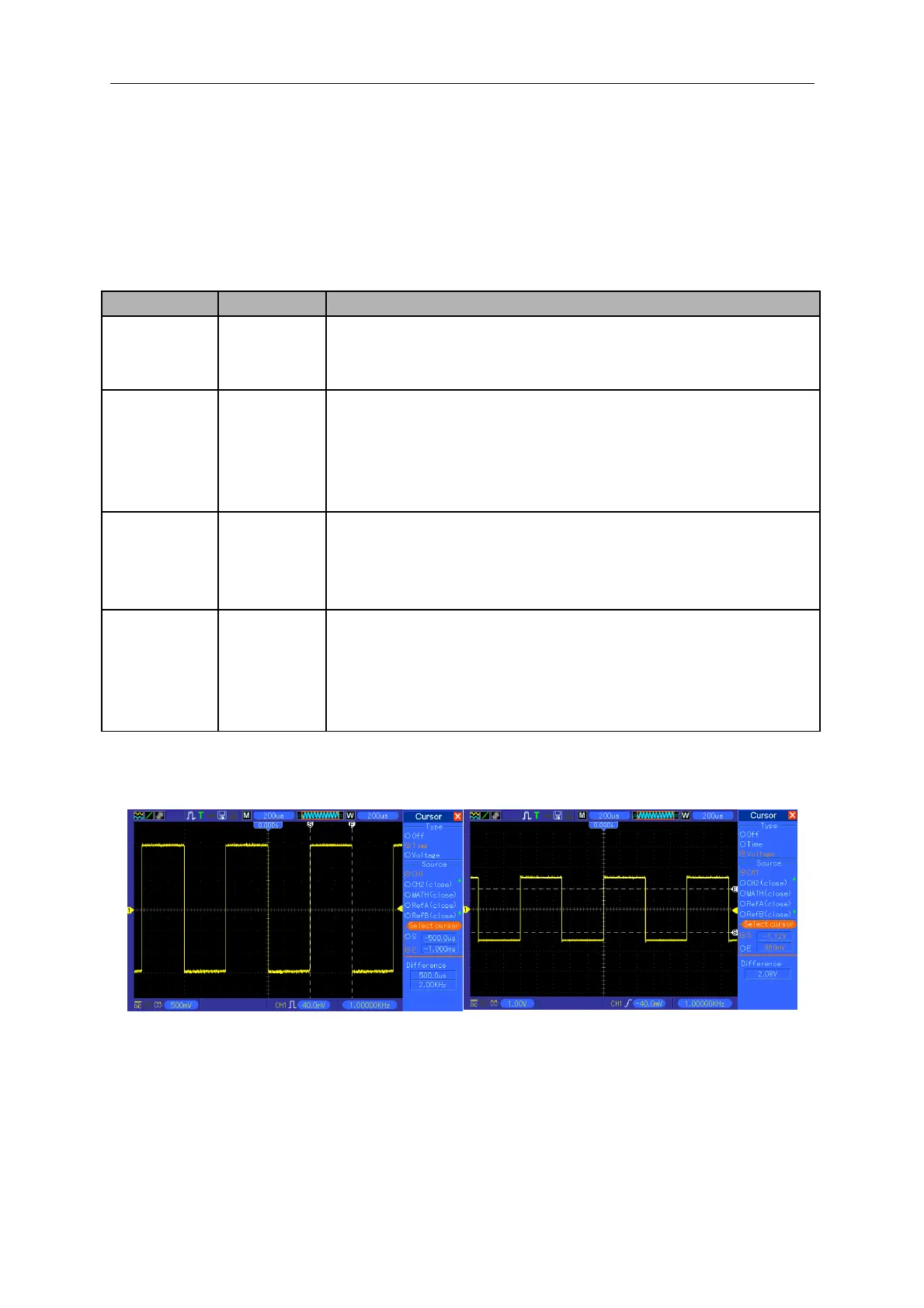

5.5.5CURSOR
Push the CURSOR button to display the Cursor Menu.
Options Settings Comments
Type Off
Voltage
Time
Select a measurement cursor and display it.
Voltage measures amplitude while Time measures time and
frequency.
Source CH1
CH2
MATH
REFA
REFB
Select a waveform to take the cursor measurement.
Use the readouts to show the measurement.
Select Cursor S
E
S indicates Cursor 1. E indicates Cursor 2.
A selected cursor is highlighted, which can be moved freely. Both
cursors can be selected and moved at the same time. The box
behind the cursor displays the location of the cursor.
Delta Display the
difference
(delta)
between the
cursors.
Display the measurement in the box under this option.
Moving Cursors: Press the key near Select Cursor to select a cursor and turn V0 to move it.
Cursors can be moved only when the Cursor Menu is displayed.
5.5.6DISPLAY
The waveform display is affected by settings of the oscilloscope. A waveform can be measured
DSO5000 Series Digital Storage Oscilloscope User Manual 42
Time Cursor
Voltage Cursor
