Hantek DSO5000BM Series User Manual

Basic Operation
Note: The oscilloscope will save the current settings if you wait 5 seconds after the last
modification, and it will recall these settings the next time you power on the oscilloscope.
5.5.2MEASURE
Push the MEASURE button to perform auto measurements. There are 11 types of measurements
and up to 8 can be displayed at a time.
Turn the V0 knob to select an unspecified option. Press V0 or F6 when the red arrow icon stops
on it. Then the following menu appears.
Options Settings Comments
Source CH1
CH2
Select the measure source.
Measurement
Type
Frequency Calculate the waveform frequency by measuring the first cycle.
Period Calculate the time of the first cycle.
Mean Calculate the arithmetic mean voltage over the entire record.
Pk-Pk Calculate the absolute difference between the greatest and the
smallest peaks of the entire waveform.
Cyc RMS Calculate the actual RMS measurement of the first complete
cycle of the waveform.
Min Examine the waveform record of all points in the current
window and display the minimum value.
Max Examine the waveform record of all points in the current
window and display the maximum value.
Rise Time Measure the time between 10% and 90% of the first rising
edge of the waveform.
Fall Time Measure the time between 90% and 10% of the first falling
edge of the waveform.
DSO5000 Series Digital Storage Oscilloscope User Manual 38

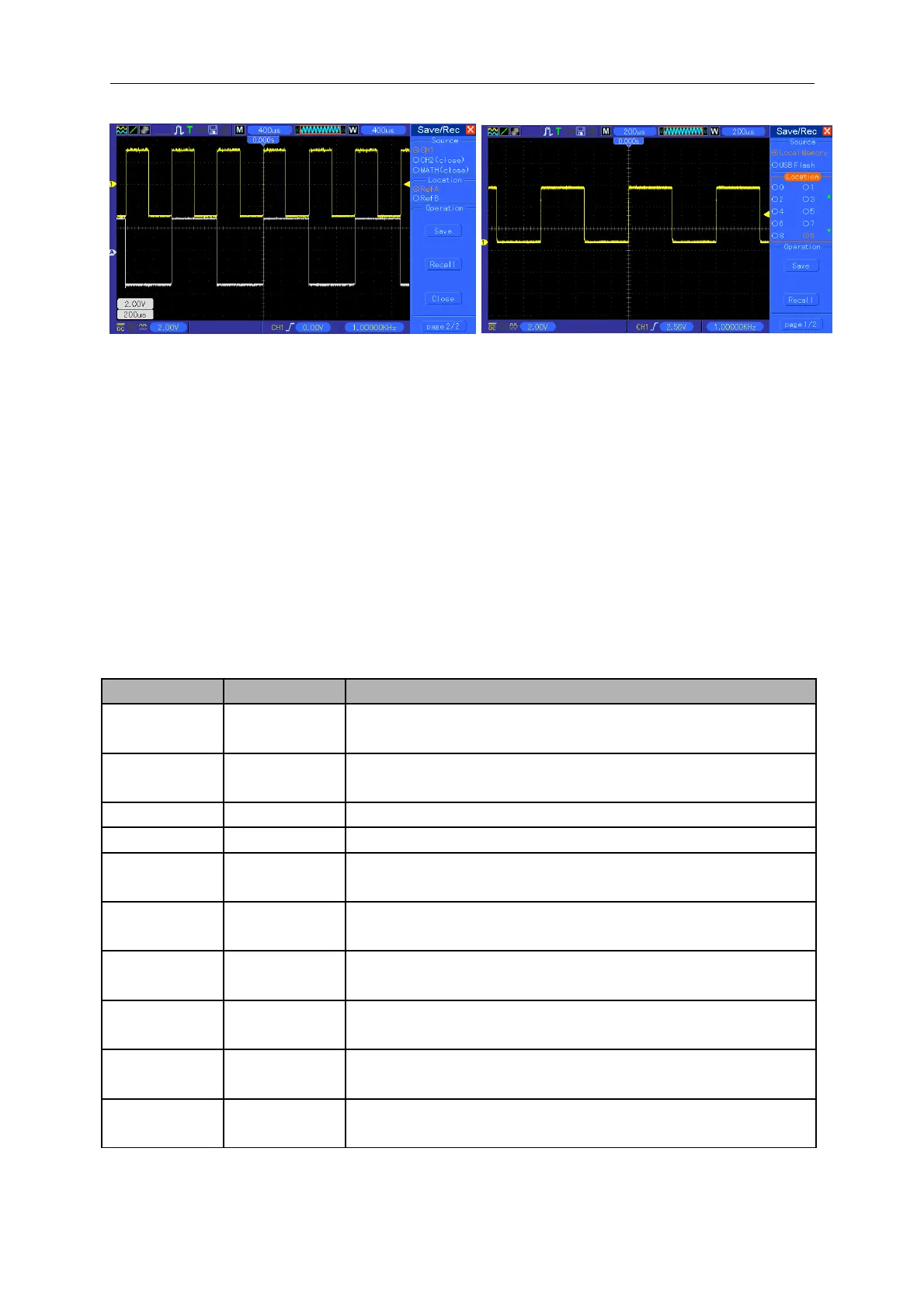

The white waveforms on the menu is
the recalled RefA waveform
At most 9 groups of
setups can be stored
