Application Examples
data.
To set the propagation delay measurement, follow the steps below.
1. Connect two oscilloscope probes respectively to the CS (chip-select) pin and the DATA pin
on the chip.
2. Set the Probe option attenuation to 10X for both probes.
3. Open CH1 and CH2 at the same time, both with the attenuation of 10X.
4. Push the AUTOSET button to trigger a stable waveform display.
5. Adjust the horizontal and vertical controls to optimize the waveform display.
6.
Push the CURSOR button to view the Cursor menu.
7. Push the Type option button and select Time.
8.
Select Cursor S and turn V0 to place it on the active edge of the enable signal.
9.

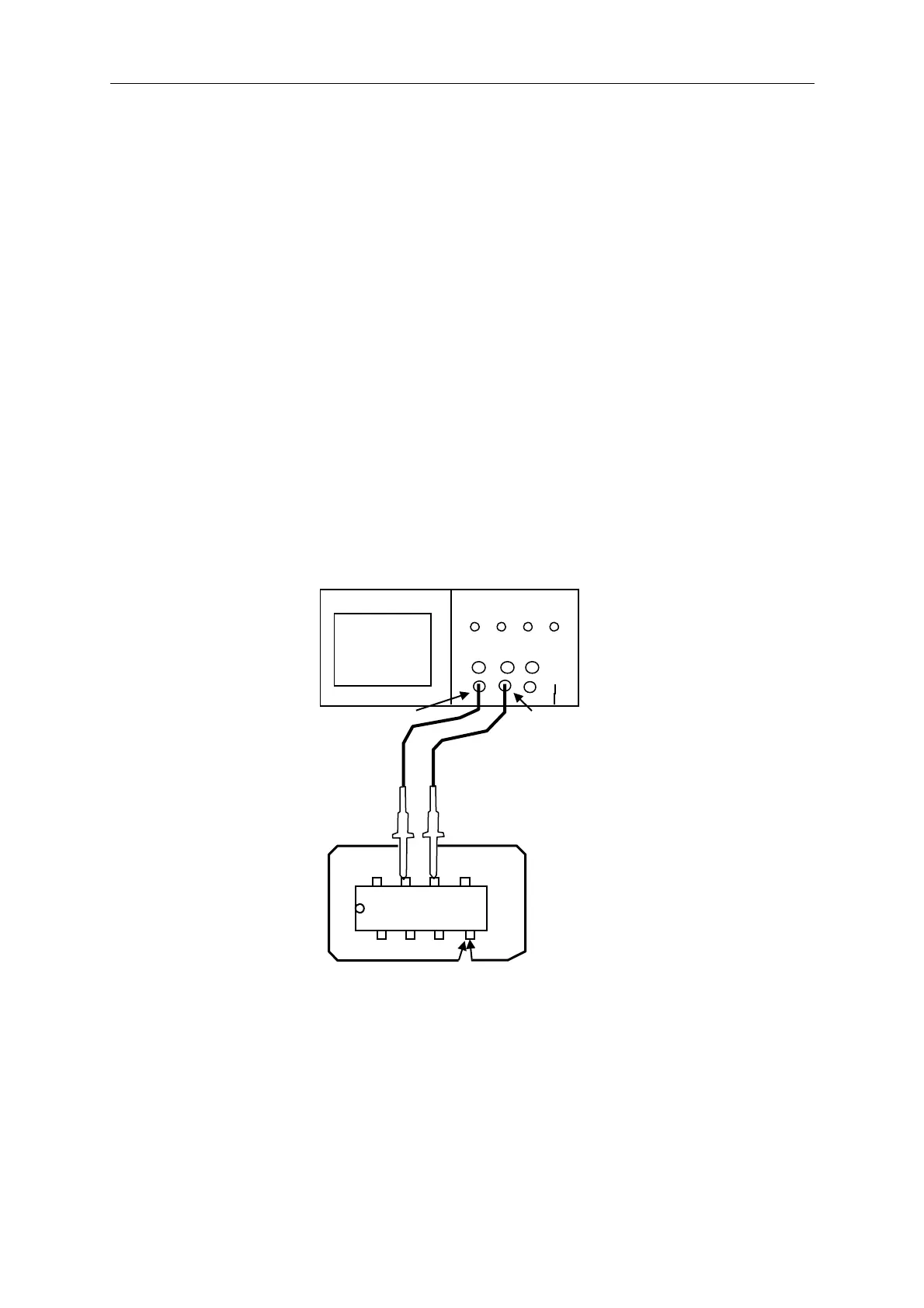

Select Cursor E and turn V0 to place it on the data output transition (See the figure below).
10. Read the data propagation delay in the Delta readout.
DSO5000 Series Digital Storage Oscilloscope User Manual 65
CH2
CS
DATA
CH1
