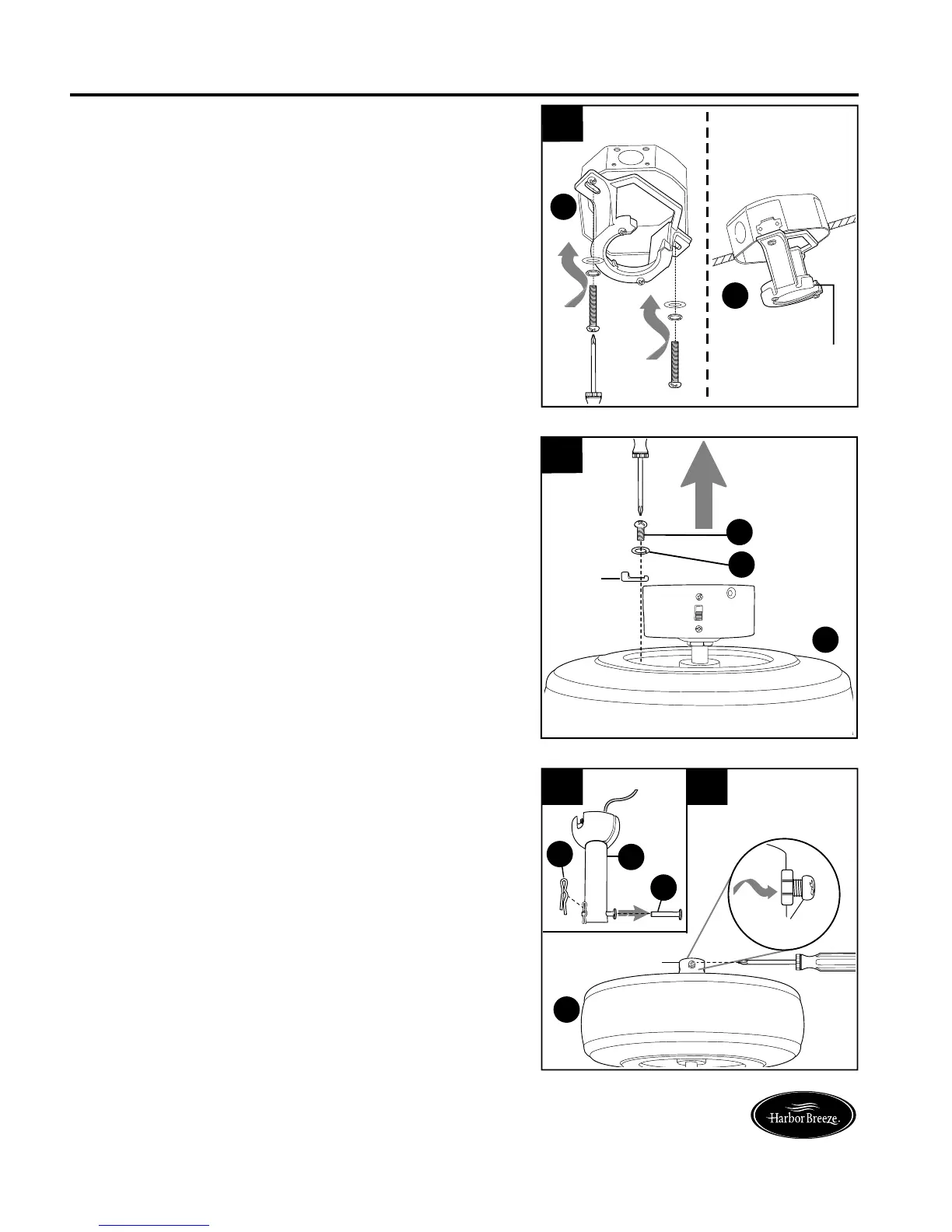

INITIAL INSTALLATION
7
Lowes.com/harborbreeze
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket
(C) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (C) is installed
facing the higher point of the ceiling and the
ceiling angle is not steeper than 19º.
4.
5.
Remove preassembled motor screws (J) and lock
washers (K) from underside of motor housing (D).
If there are plastic motor blocks installed with the
motor screws (J), discard the plastic motor blocks.
Note: Make sure to keep loose hardware separate
to avoid confusion during installation.
Remove pin (L) and clip (M) from downrod (A).
Partially loosen preassembled set screws in yoke
at top of motor housing (D).
6.
5
J
K
D
Open End
Plastic
Motor
Block
4
C
C
ANGLE MOUNTSTANDARD MOUNT
6A
M
D
L
6B
A
Yoke
Set Screw
Sideview
To Next Page
