8
Lowes.com/harborbreeze

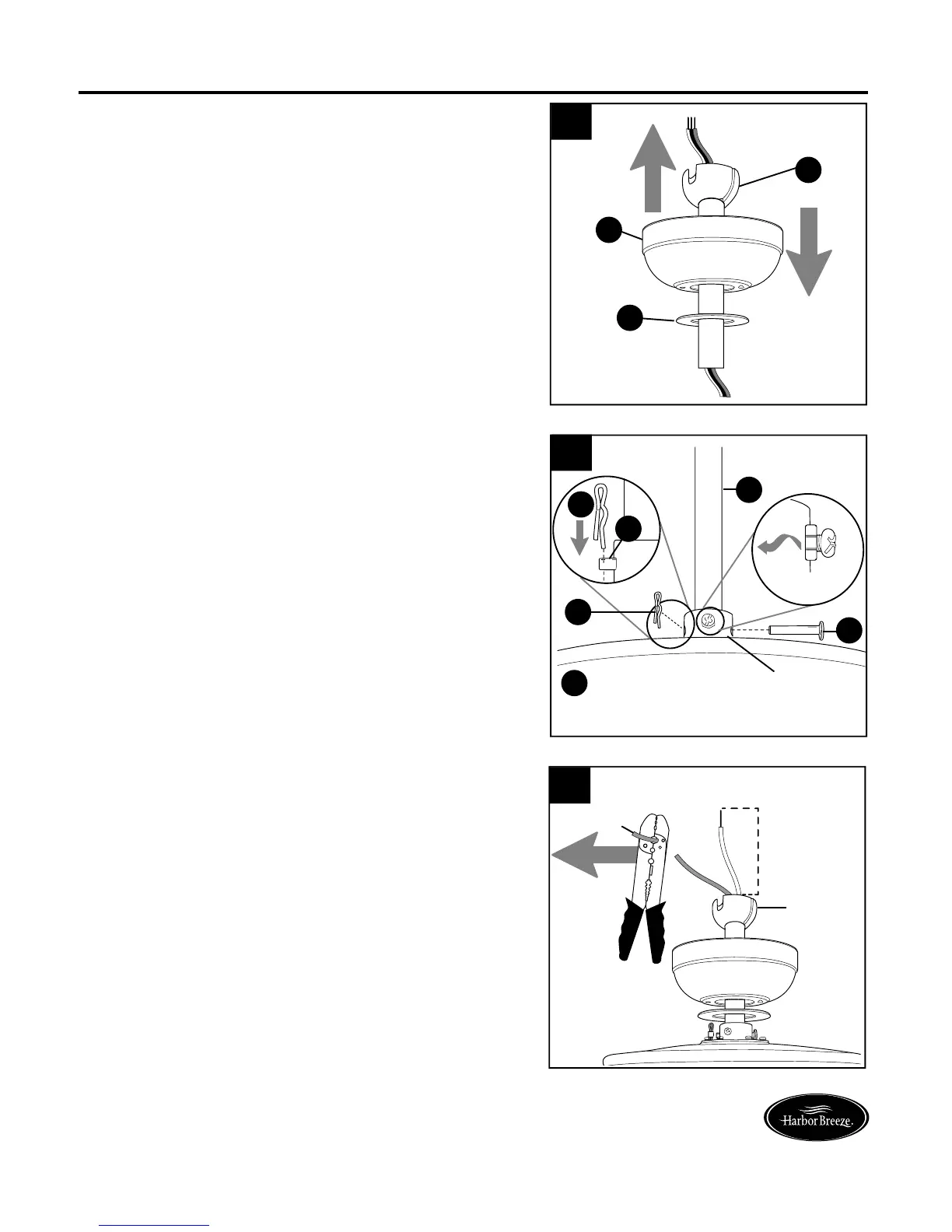

Depending on the length of downrod you use,
you may need to cut the lead wires back to
simplify the wiring. If you decide to cut back the
lead wires, it is suggested you do so in the
following manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the hanging ball
on the downrod and measure 8 in. of lead wire,
and then cut the excess wire off with wire
cutters (not included).
NOTE: If you do not cut back the lead wires,
Steps 9 and 10 are not necessary and you
may proceed to Step 11 instead.
9.
7.
Insert downrod (A) through canopy (B) and
canopy cover (E). NOTE: Canopy cover (E)
must be turned with the shiny side toward the
motor housing (D).
Then, thread wires from motor housing (D)
through downrod (A).
8.
INITIAL INSTALLATION
Slip downrod (A) into motor housing yoke, align
holes and re-install pin (L) and clip (M). Tighten
set screws in motor housing yoke and then
tighten preassembled nuts on the set screws.
Hanging
Ball
9
8 in.
8
A
D
L
M
Yoke
7
B
E
A
M
L
Set Screw
and Nut
Sideview
To Next Page
