8
INITIAL INSTALLATION
4.
4
5.
6.

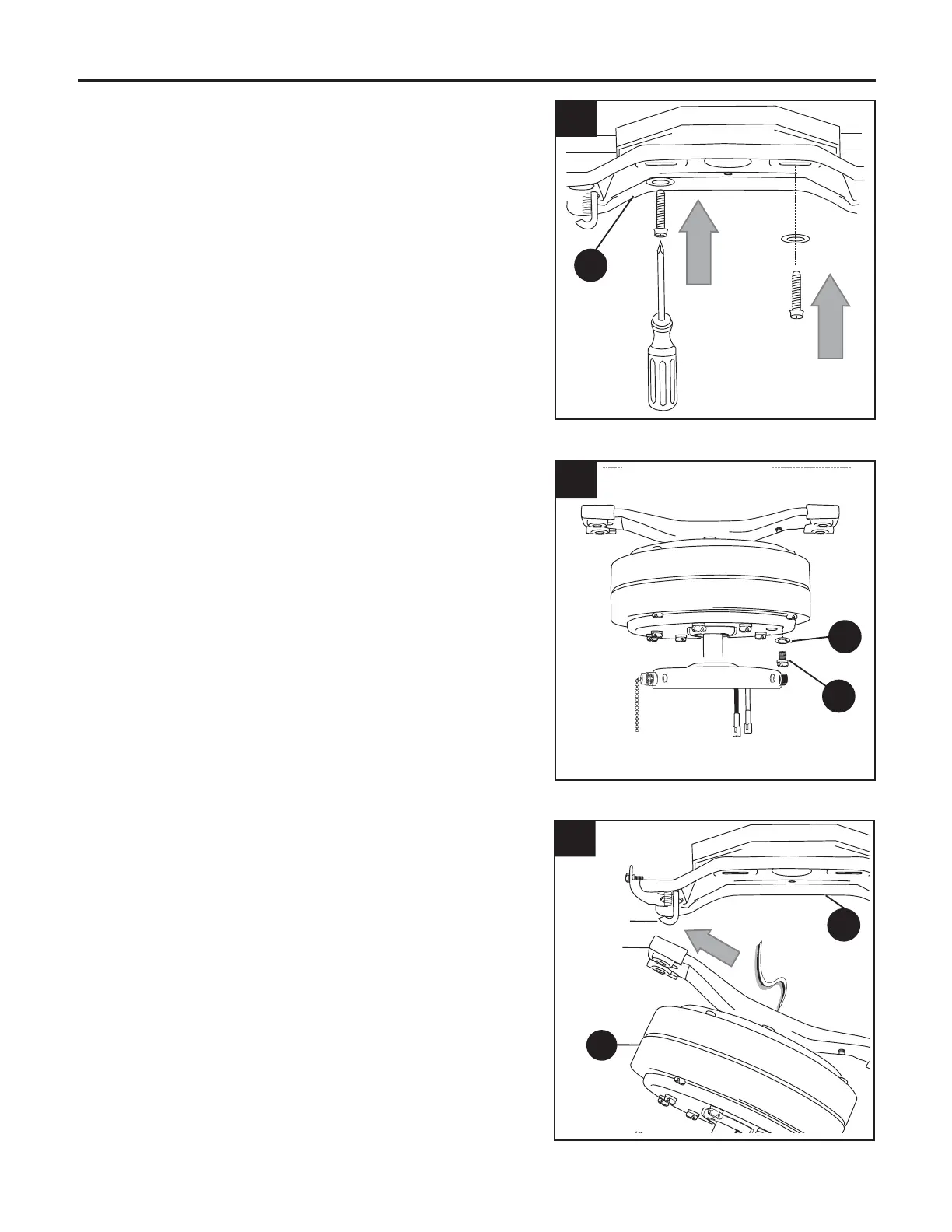

Secure mounting bracket (B) to outlet box using
screws, spring washers, and flat washers
provided with the outlet box. (Fig. 4)
*Note: It is very important that you use the
proper hardware when installing the mounting
bracket (B) as this will support the fan.
B
5
D
6
6
"J" Hook
Bar
N
M
B
Slide the slot in the bar at the top of the motor
assembly (D) onto the "J" hook on the mounting
bracket (B) to support the fan during wiring. (Fig. 6)
Important: Do not use the end of the bar on the
motor assembly (D) with the small round hole to
hang the motor assembly (D) on the mounting
bracket (B).
Remove motor screws (M) and lock washers (N)
from underside of motor and save for blade arm (G)
attachment later on. [If there are plastic motor blocks
installed with the motor screws (M) and lock washers
(N), discard the plastic motor blocks.] (Fig. 5)
To Next Page
