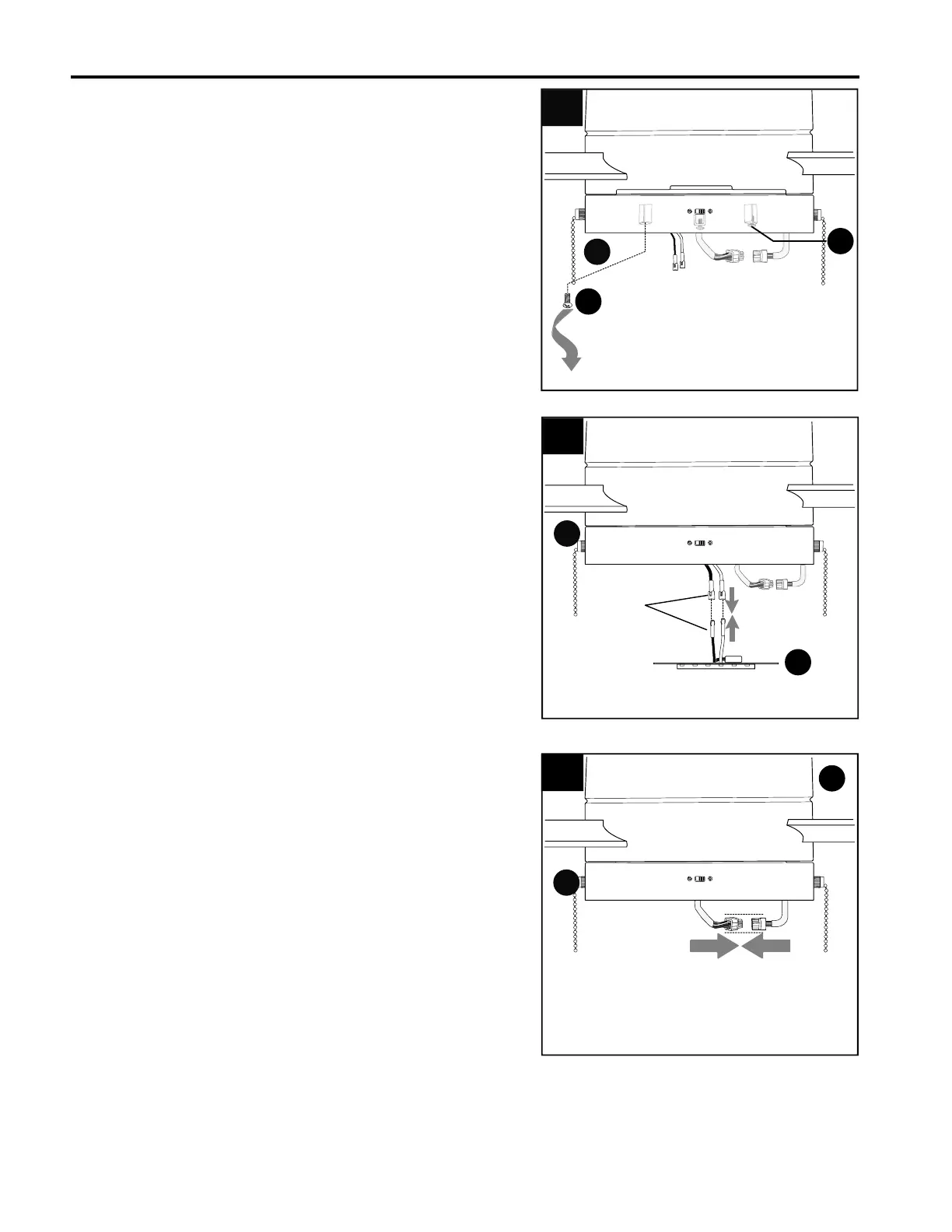

FINAL INSTALLATION
Remove one preassembled fitter plate screw
(H) from underside of fitter plate (C) and
partially loosen the other two fitter plate
screws (H).
4.
4
D
molex
connections
5
Connect WHITE molex wire from LED light kit
(D) to WHITE molex wire from fitter plate (C).
Connect BLUE molex wire from LED light kit (D)
to BLACK (or BLUE) molex wire from fitter plate
(C). Make sure molex wire connections snap
together securely.
5.
C
6.
Connect male plug from motor housing (B) to
female plug from fitter plate (C), matching up
the colors on the male plug with the colors on
the female plug for correct fit. Make sure plugs
are connected completely.
6
B
Male Plug Female Plug
H
H
C
C
