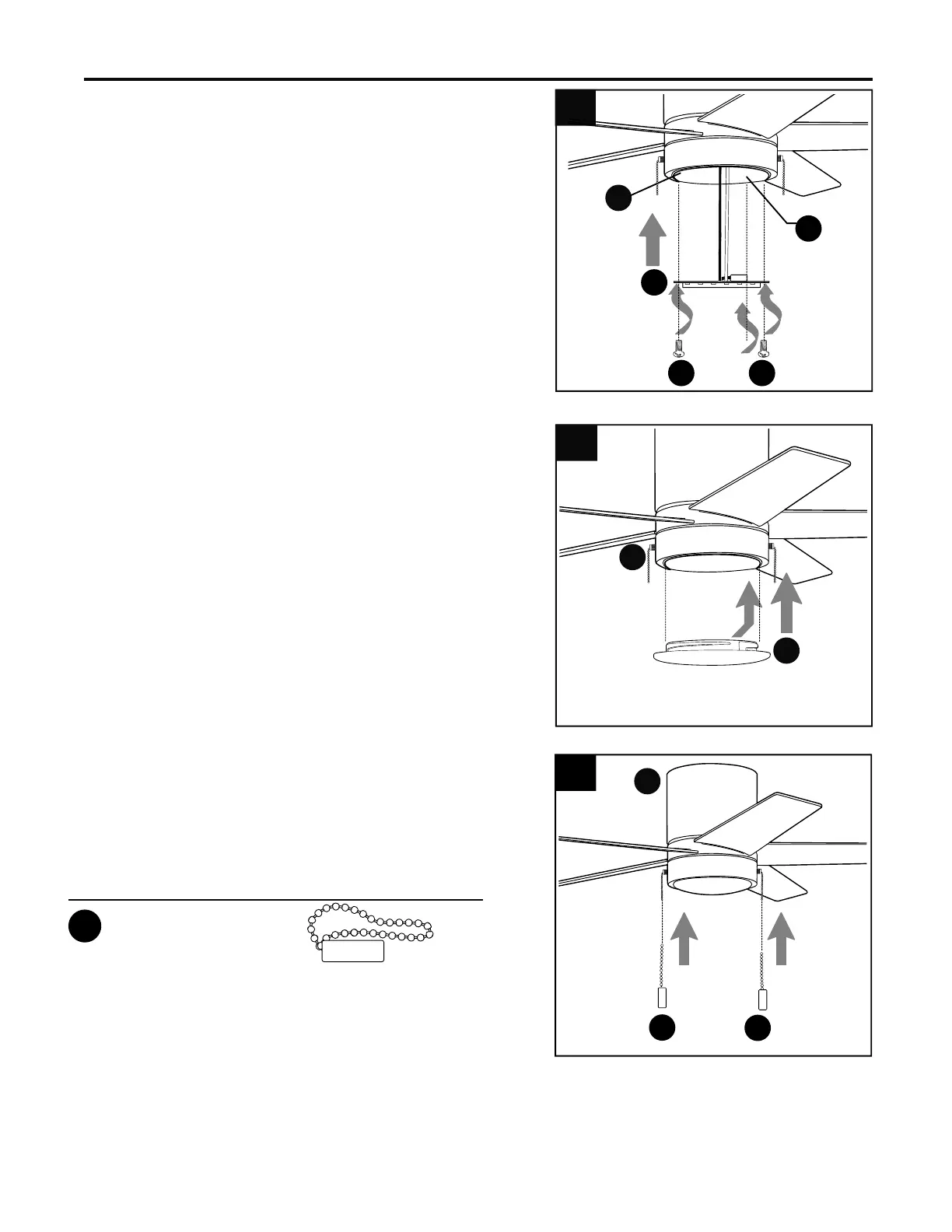

FINAL INSTALLATION
Align grooves on shade (E) with nodules on
inside of fitter plate (C) and push up gently on
shade (E). Turn shade (E) clockwise until it no
longer turns.
NOTE: Pull down gently on the shade (E) to
make sure that it is secured completely.
8.
8
E
C
D
C
Carefully arrange wires in center of fitter plate
(C). Align slotted holes in edge of LED light kit
(D) with loosened fitter plate screws (H) on fitter
plate (C). Re-insert the other fitter plate screw
(H) previously removed. Tighten all three fitter
plate screws (H) securely.
7.
3
7
H
HH
B
Attach pull chain extensions (DD) or custom pull
chain extensions (not included) to fan and light
pull chains.
Assembly is now complete.
9.
9
DD
DD
Pull Chain Extension x 2
Hardware Used
DD
