10
Lowes.com/harborbreeze

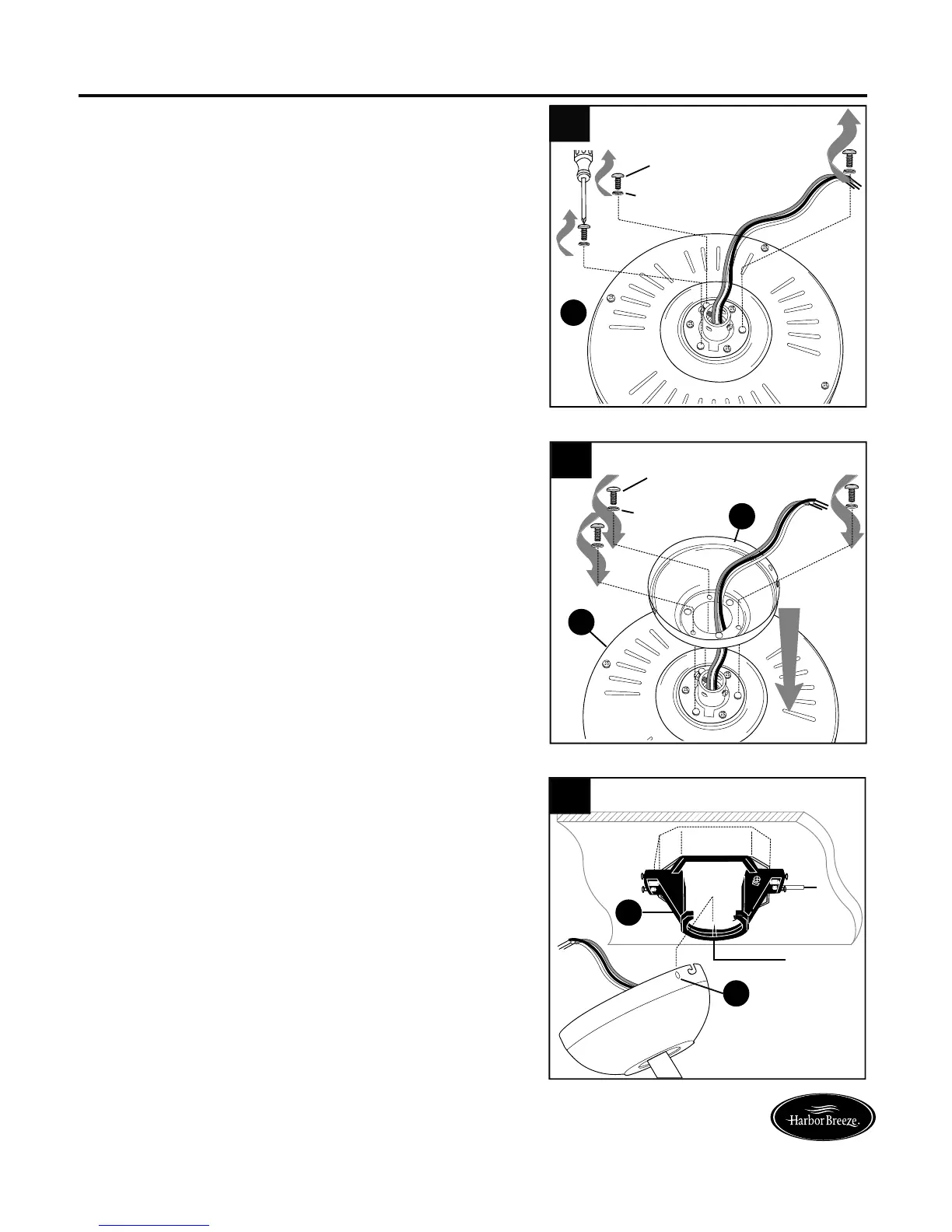

CLOSEMOUNT-STYLE FAN MOUNTNG
Temporarily hang fan on the tab on the mounting
bracket (C) using one of the non-slotted holes in
the canopy (B).
4.
3.
Remove every other preassembled screw and lock
washer from top of motor housing (D).
Tab
C
4
2.
B
Pull wires up through hole in the middle of the
canopy (B) and attach canopy (B) to motor
housing (D) using the three previously removed
screws and lock washers.
3
B
D
Screw
Washer
2
D
D
Screw
Washer
