13
Lowes.com/harborbreeze

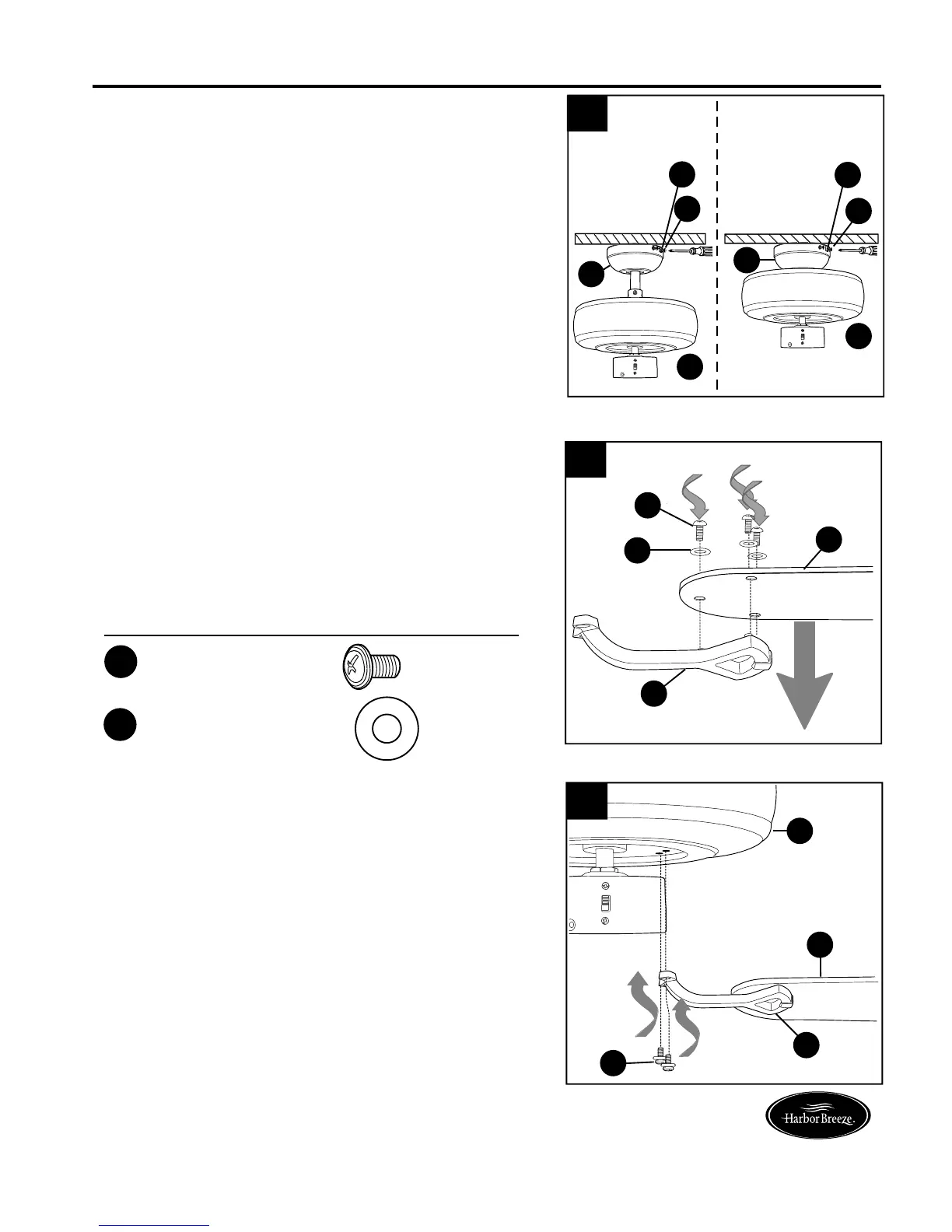

FINAL INSTALLATION
2.
2
Partially insert three blade screws (AA) along with
three blade washers (BB) into holes in blade (G) to
attach blade arm (H) to blade (G). Then, tighten
each blade screw (AA) starting with the one in the
middle.
Repeat Step 2 for remaining blades (G) and blade
arms (H).
Hardware Used
Blade Screw
x 15
AA
Blade Washer
x 15
BB
BB
AA
G
H
Attach blade arms (H) to the bottom of motor
housing (D) with motor screws (J) previously
removed (Step 5, page 7). Tighten motor screws
(J) securely.
Note: Make sure to completely secure each blade
arm (H) before proceeding to the next.
3.
3
D
J
G
H
J
1.
Lift canopy (B) to mounting bracket (C) again,
aligning slotted holes in canopy (B) with loosened
canopy mounting screws (O) in mounting bracket
(C). Twist canopy (B) clockwise to lock. Re-insert
the two previously removed canopy mounting
screws (O) and lock washers (E) (Step 4a, page 6)
and tighten all canopy mounting screws (O)
securely.
1
B
D
O
D
B
Downrod
Option
Closemount
Option
O
E
E
To Next Page
