6.
9
Lowes.com/harborbreeze

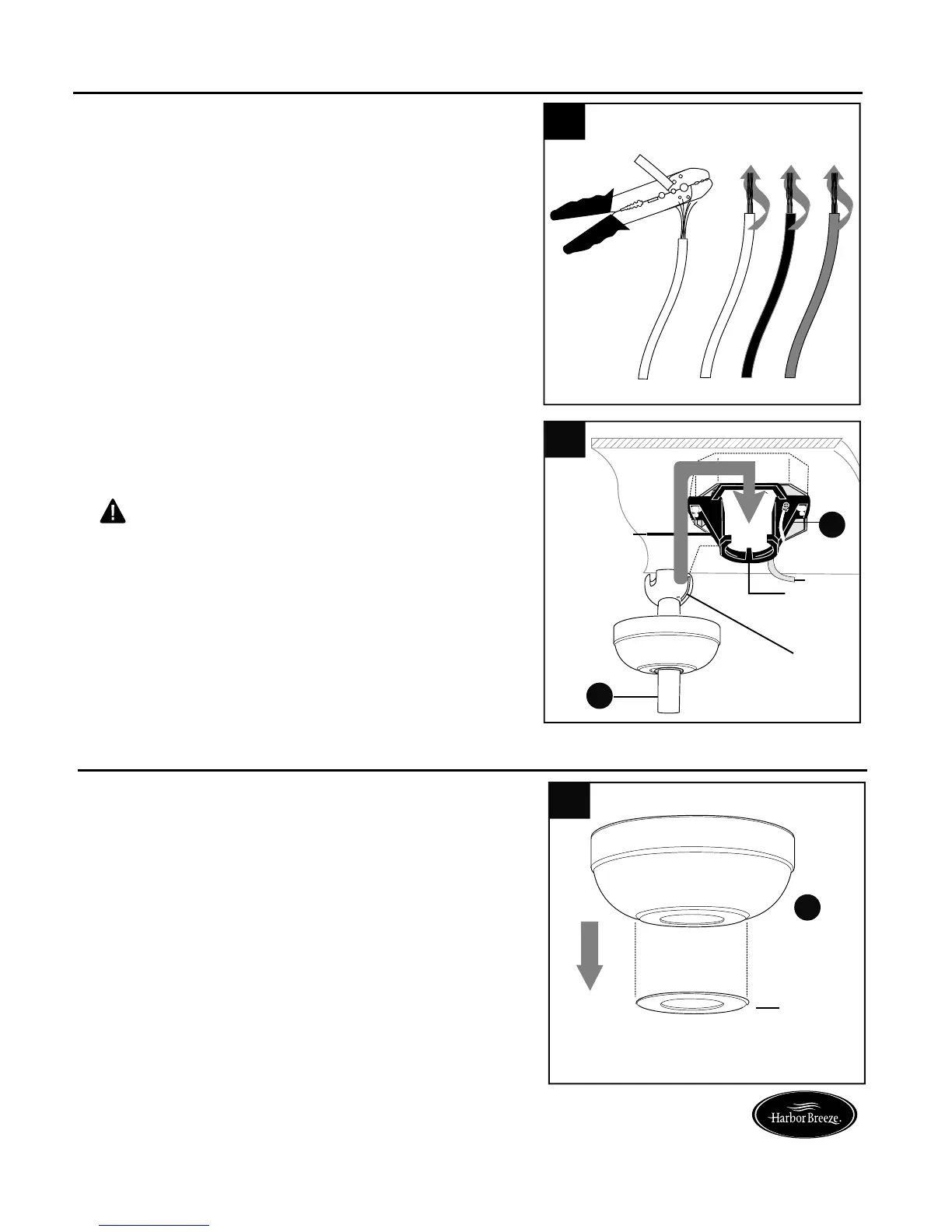

If you decided to cut back the lead wires in Step 4,
strip 1/2 in. of insulation from end of each wire --
white, black, green and blue (if applicable). Twist
stripped ends of each strand of wire within the
insulation with pliers (not included).
5.
5
DOWNROD-STYLE FAN MOUNTING
Install hanging ball of downrod (A) into opening of
mounting bracket (C). Align one of the slots in
hanging ball with tab in mounting bracket (C).
DANGER: Failure to align one of the slots in
the ball with the tab may result in serious injury or
death.
Continue to WIRING on page 11.
CLOSEMOUNT-STYLE FAN MOUNTING
Remove preassembled canopy cover from bottom of
canopy (B). NOTE: It may be necessary to use the
handle end of a screwdriver (not included) to remove
the canopy cover by tapping on the canopy cover
from the inside of the canopy (B).
NOTE: The downrod (A) and canopy cover are not
used in this type of installation.
1.
1
Canopy
Cover
B
Slot
Tab
C
A
6
