8
Lowes.com/harborbreeze

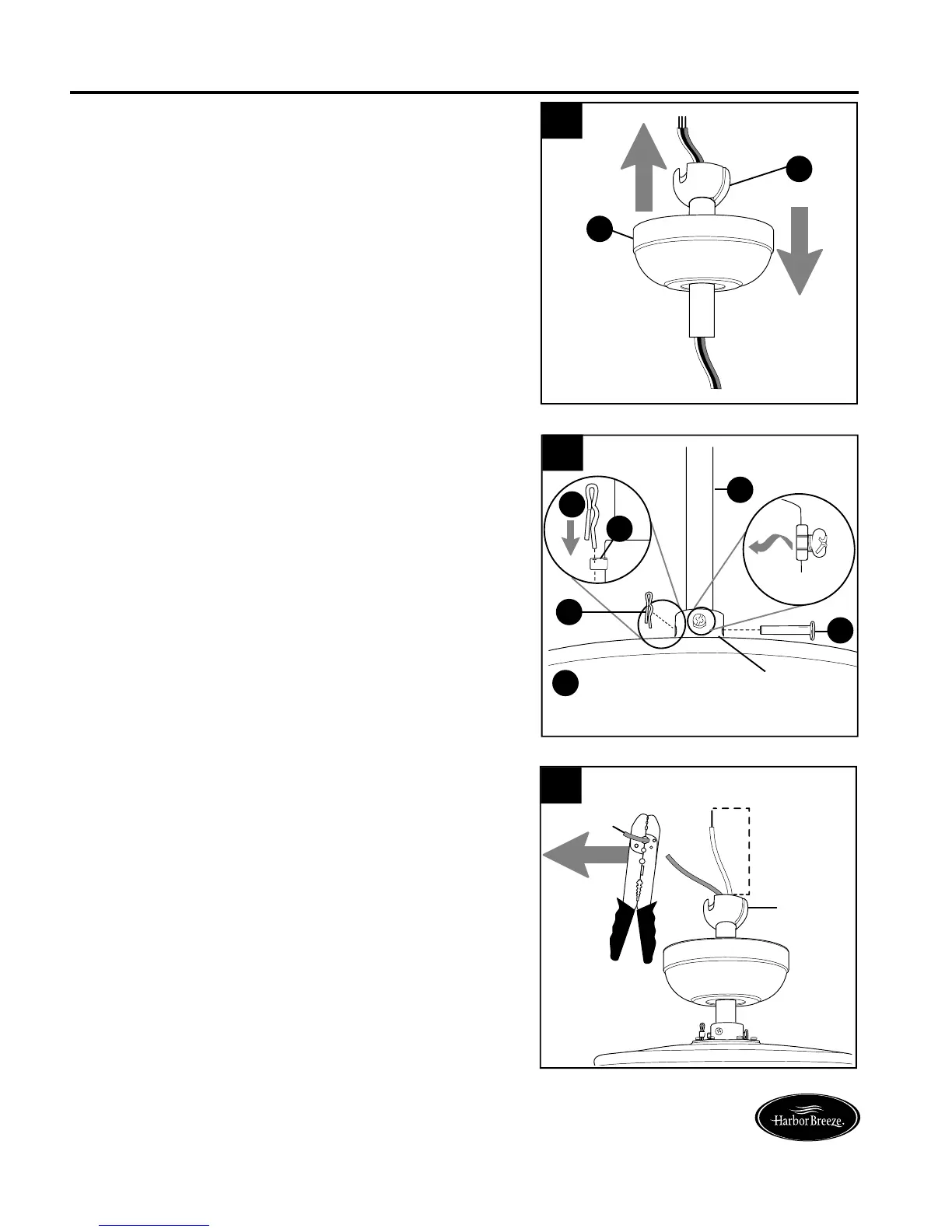

Depending on the length of downrod you use,
you may need to cut the lead wires back to
simplify the wiring. If you decide to cut back the
lead wires, it is suggested you do so in the
following manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the hanging ball
on the downrod and measure 8 in. of lead wire,
and then cut the excess wire off with wire
cutters (not included).
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you
may proceed to Step 6 instead.
4.
2.
Insert downrod (A) through canopy (B). Thread
wires from motor housing (D) up through
downrod (A).
3.
DOWNROD-STYLE FAN MOUNTING
Slip downrod (A) into motor housing yoke, align
holes and re-install pin (L) and clip (M). Tighten
set screws in motor housing yoke and then
tighten preassembled nuts on the set screws.
Hanging
Ball
4
8 in.
3
A
D
L
M
Yoke
M
L
Set Screw
& Nut
Side View
2
B
A
