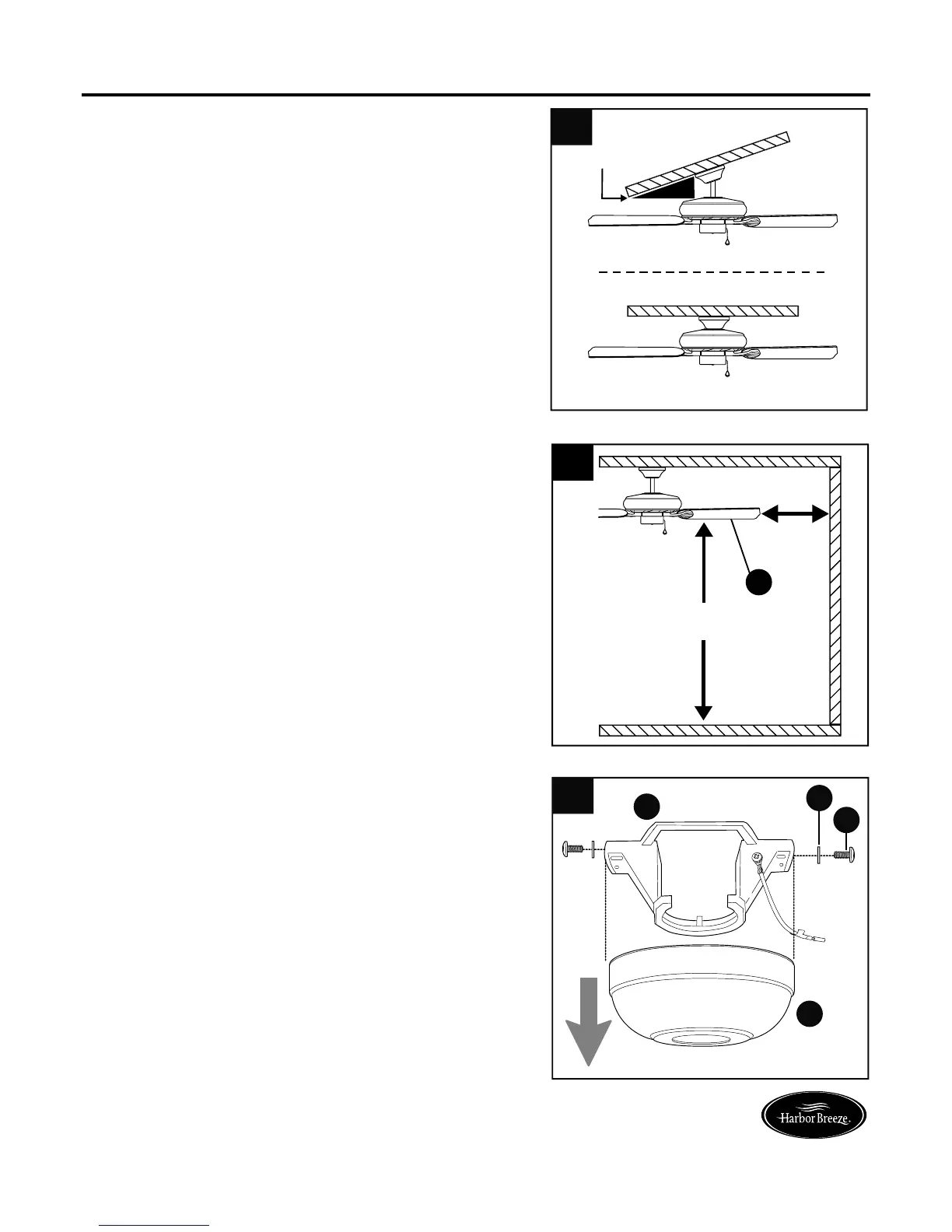

Check to make sure blades (G) will be at least
30 inches from any obstruction. Check downrod (A)
length to ensure blades (G) will be at least 7 ft.
above the floor.
3.
INITIAL INSTALLATION
Lowes.com/harborbreeze
7 ft.
min.
30 in.
min.
3
G
2.
Determine mounting method to use.
A. Downrod mount (standard or angled ceiling)
B. Closemount (standard ceiling only)
IMPORTANT: If using the angle mount, ensure the
ceiling angle is not steeper than 19°.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. or higher. For taller ceilings
you may want to use a longer downrod (not
included). Angle-style mounting is best suited for
angled or vaulted ceilings. A longer downrod is
sometimes necessary to ensure proper blade
clearance.
A
B
2
19° max.
4a.
Loosen canopy mounting screws (O) in slotted
holes of canopy (B) and remove the other two
canopy mounting screws (C) and lock washers (E).
Save for later use.
Remove mounting bracket (C) from canopy (B).
4a
C
B
O
E
