Harbor Breeze WAVEPORT Series User Manual

DOWNROD-STYLE FAN MOUNTING
8
3.
2.

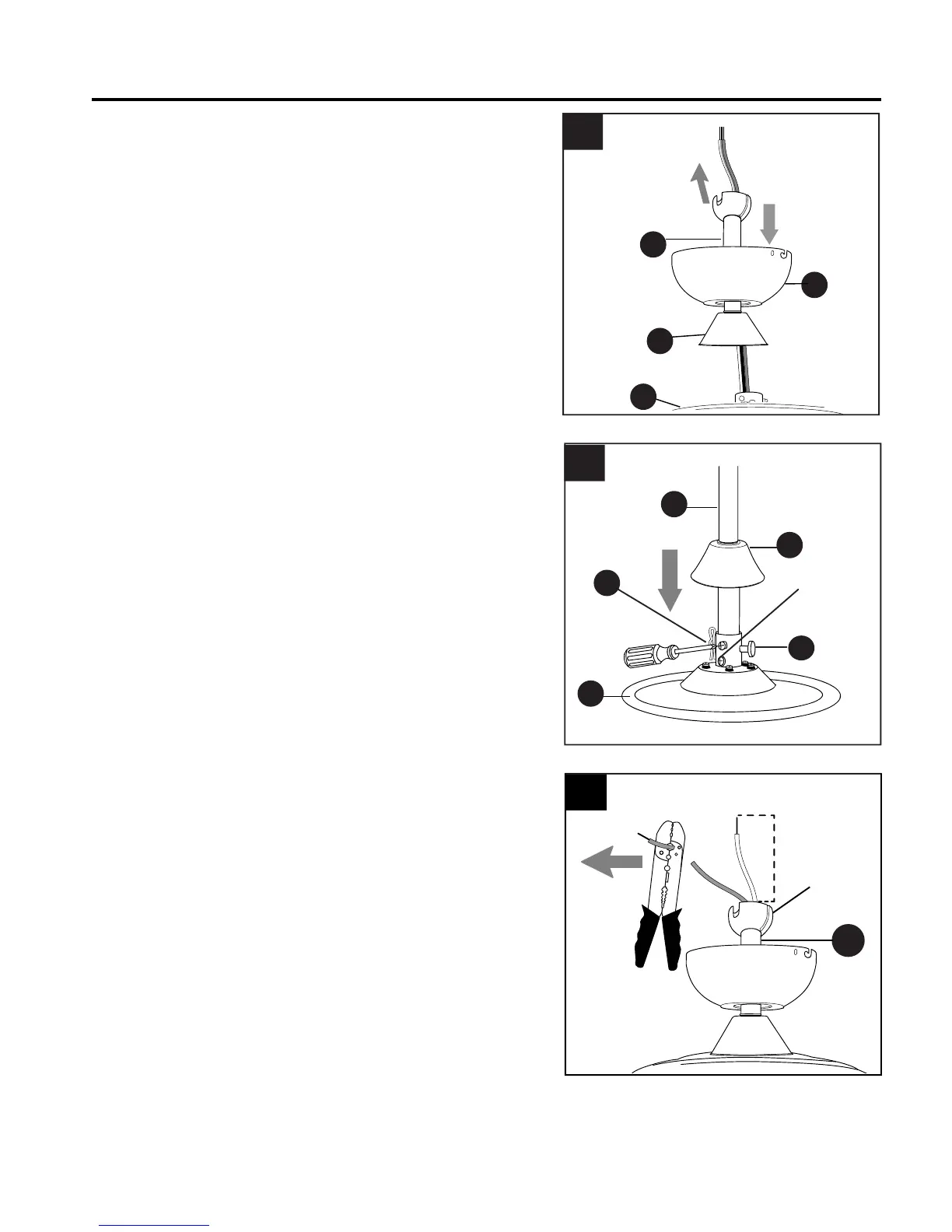

Insert downrod (A) through canopy (B) and yoke
cover (E). Thread wires from motor housing (D) up
through downrod (A).
2
A
B
E
3
Slip downrod (A) into yoke, align holes and
re-install pin (L) and clip (M). Tighten set screws
and then tighten nuts on the set screws. Slide yoke
cover (E) down until it rests on top of motor
housing (D).
Set
Screws
and Nuts
A
E
N
M
D
D
L
M
4.
Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, it is
suggested you do so in the following manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod (A). Start at the TOP of the hanging ball
on the downrod (A) and measure 8 in. of lead wire,
then cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you may
proceed to Step 6 instead.
Hanging
Ball
A
4
8 in.

Harbor Breeze WAVEPORT Series Specifications

General

Blade Material	ABS
Number of Blades	3
Motor Type	AC
Control Type	Remote Control
Damp/Wet Rating	Damp
Blade Span	52 inches
Number of Speeds	3
Mounting Options	Flush Mount
Reversible Motor	Yes
Warranty	Limited Lifetime
