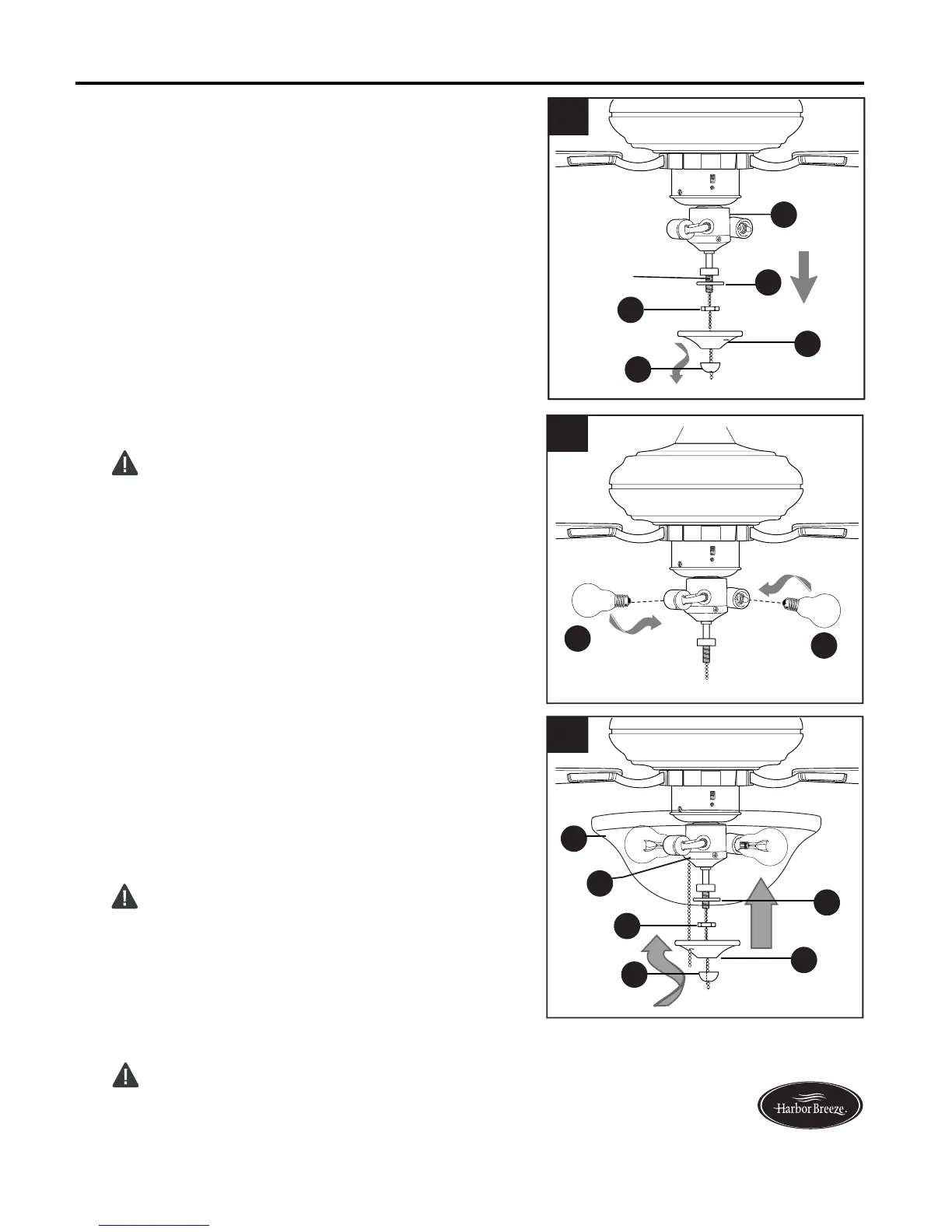

FINAL INSTALLATION
Install bulbs (H).
CAUTION: When replacing bulb(s), allow
bulb(s) and glass shade to cool down before
touching.
6
6.
7.
Place rubber washer (Q) inside glass shade (P)
over center hole. Align hole in center of glass shade
(P) with threaded rod on light kit fitter (F), allowing
pull chains to come through corresponding holes in
glass shade (P). Push up gently on glass shade (P)
until threaded rod comes through hole. (Be sure fan
pull chain does not rub against bulbs during fan
operation.) Secure glass shade (P) with hex nut (K).
CAUTION: Do NOT overtighten hex nut (K) as
glass may crack or break.
Then, align hole in center of finial plate (I) with
threaded rod, allowing the pull chains to come
through appropriate holes in finial plate (I) and push
up. Thread center pull chain through hole in finial
(O) and tighten finial (O).
CAUTION: Do NOT overtighten finial (O) as
glass may crack or break.
H
7
P
O
I
F
K
H
If you wish to use the fan WITH the light kit,
remove finial (O), finial plate (I), rubber washer (Q)
and hex nut (K) from the threaded rod at the bottom
of the light kit fitter (F). Save hardware for later use.
5.
5
Threaded
Rod
O
I
Q
F
K
Q
To Next Page
