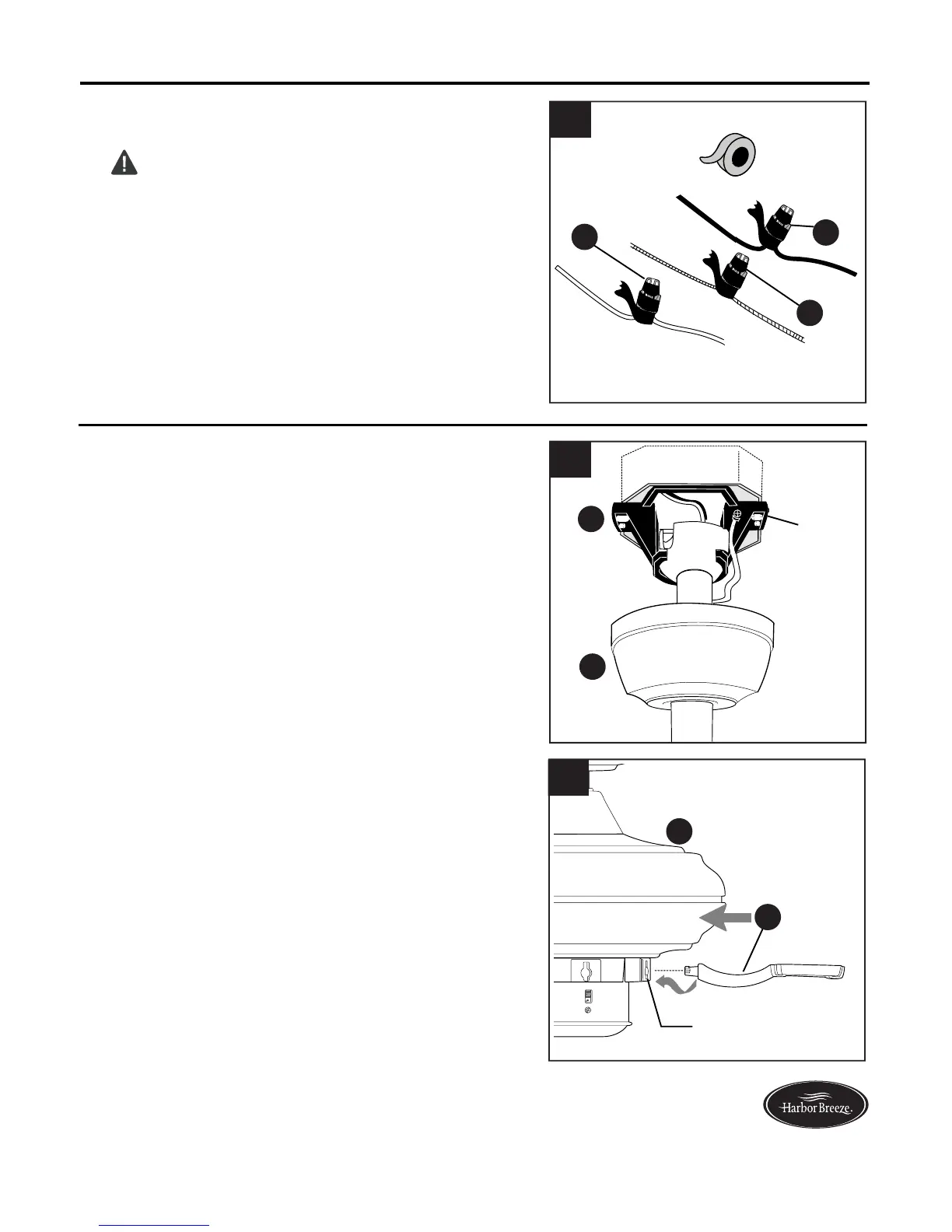

WIRING
Wrap electrical tape (not included) around each
individual clip (DD) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
green and white connections on opposite side of box
from the black and blue connections.
Gently push wires and clips (DD) into outlet box.
2.
DD
DD
2
DD
1.
FINAL INSTALLATION
B
C
Raise canopy (B) toward ceiling and allow it to
attach to mounting bracket (C) using the magnets
mounted on each side of the mounting bracket (C).
1
Magnet
Insert the end of one blade arm (S) into the
keyhole slot on the motor housing (D). Twist blade
arm (S) clockwise to lock in place.
Repeat with remaining blade arms (S).
2.
J
S
D
Keyhole
Slot
2
